Appendix D — EA30 Imager
128 ED40 Decode Board Integration Guide
Power-Up with Power Enable Inrush Current 1

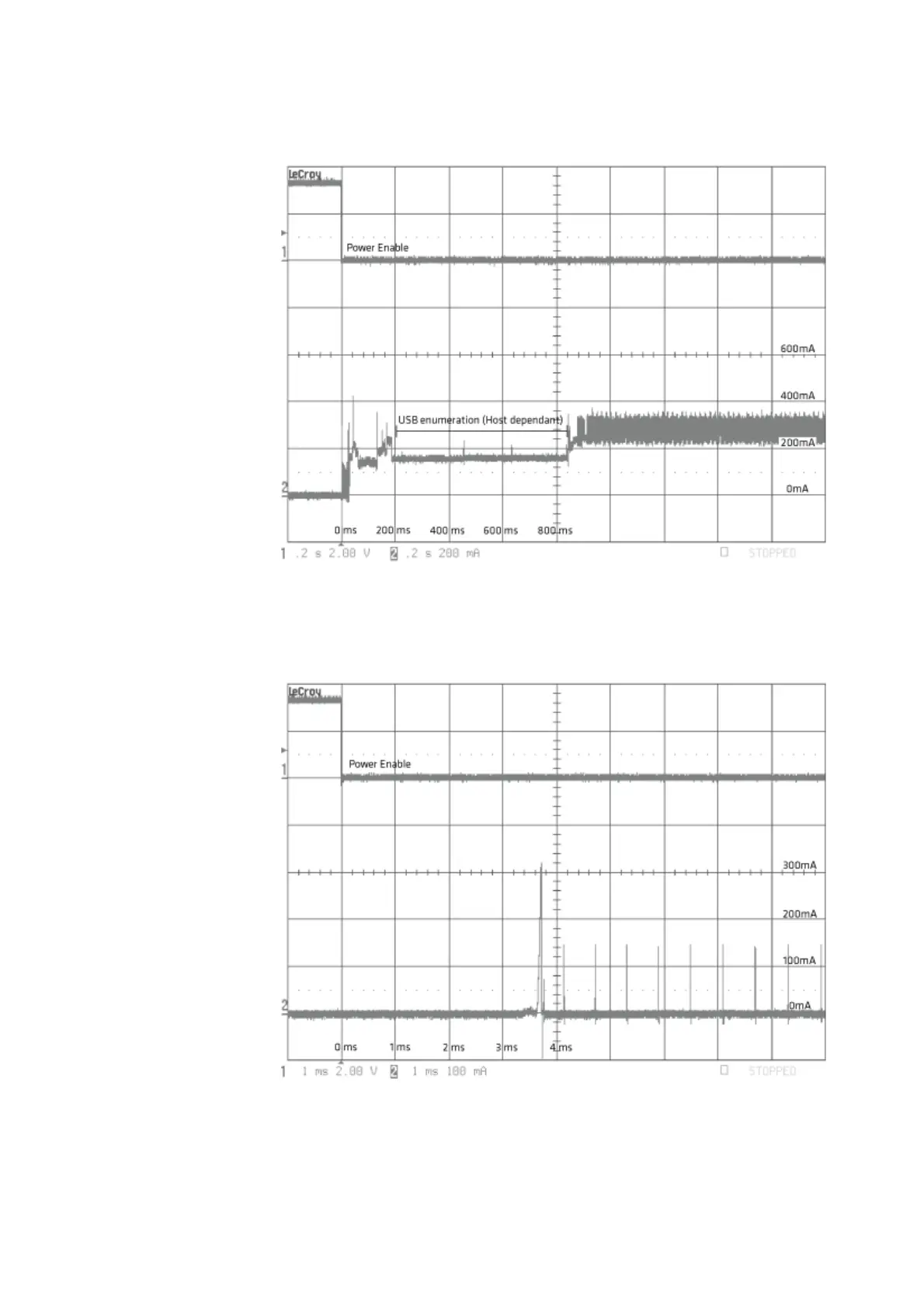

EA30 + ED40 Power-Up with power enable Inrush Current 1: Power enable switched from
high to low.
Power-Up with Power Enable Inrush Current 2 (Zoom)
EA30 + ED40 Power-Up with power enable Inrush Current 2 (Zoom) (USB): Power enable
switched from high to low. This is a zoom in on the previous graphic.
