Chapter 4 — ED40 Setup
26 ED40 Decode Board Integration Guide
Postamble

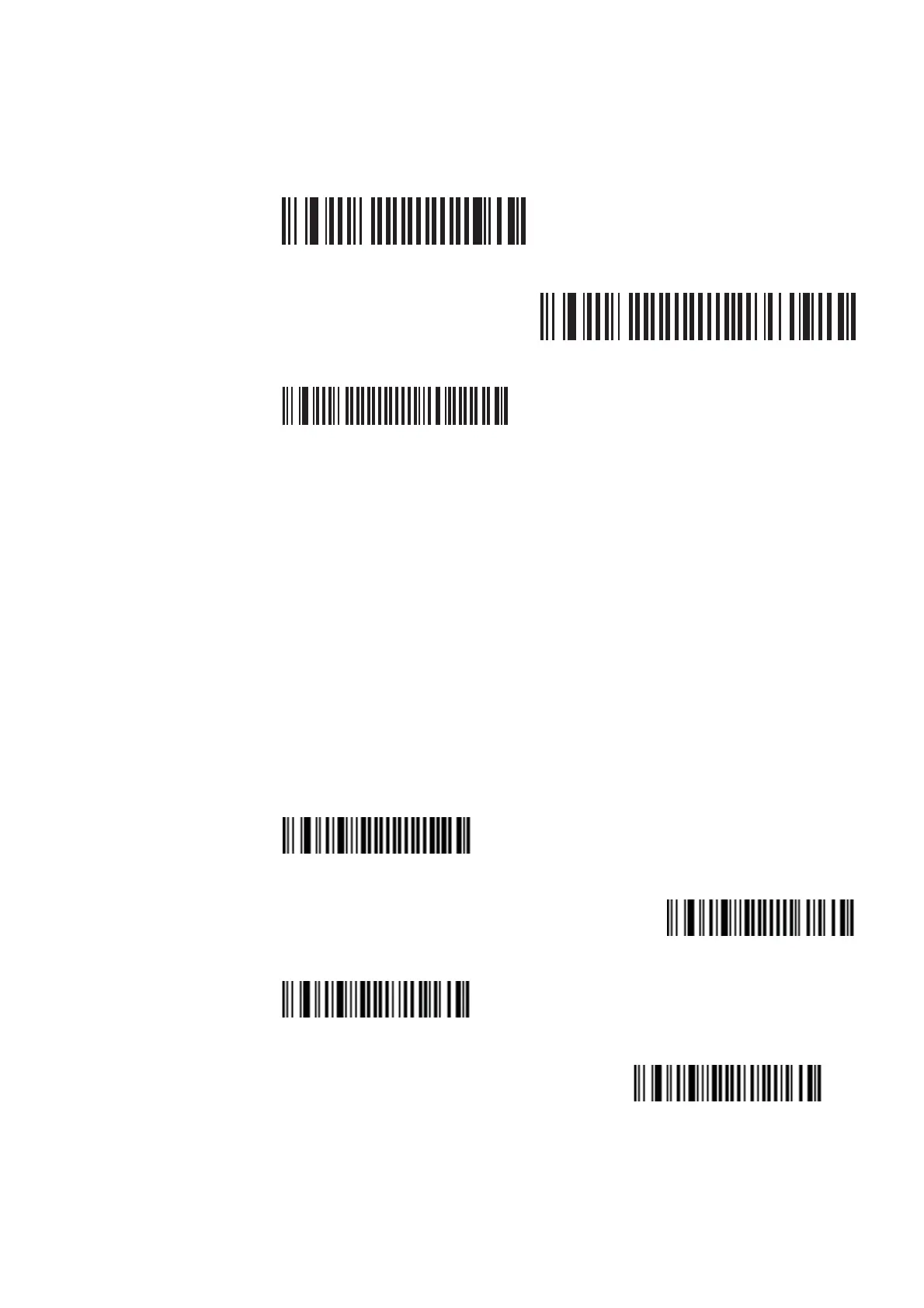

Scan one of these bar codes to set the postamble.
Pre-Defined Imager Settings
You can optimize the reading performance of your ED40 by adjusting certain
parameters. Since there are many parameters that can be adjusted, we recommend
using the pre-defined imager settings to quickly set up your imager for optimized
reading. The pre-defined imager settings take in to account the type of bar code,
environment and reading surface.
There are 4 pre-defined imager settings:
• 1-Dimensional bar codes only
• Standard 1-dimensional and 2-dimensional bar codes
• 1-Dimensional and 2-dimensional bar codes in a bright environment
• 1-Dimensional and 2-dimensional bar codes with reflective surface (shiny
labels)
Select the pre-defined imager setting that best suits your needs:
Carriage Return + Line Feed (*)
SW 60 C1 00 02 0D 0A
Enter
SW 60 C1 00 02 81 01
1D codes only
CCMD 40 50 00
standard 1D and 2D codes (*)
CCMD 40 50 01
1D and 2D codes, bright environment
CCMD 40 50 02
1D and 2D codes with reflective surface
CCMD 40 50 03
To Next Page
