Appendix A — EA11 Imager
ED40 Decode Board Integration Guide 75
Mounted Imager Position
There are two positions for mounting the imager on the mounting bracket:
Position 1 and position 2. This option allows you adapt the position of the
imager to your design if necessary. This can be helpful if you have one design and
would like the possibility of using any of the Intermec imagers supported by the
ED40 decode board in your design.

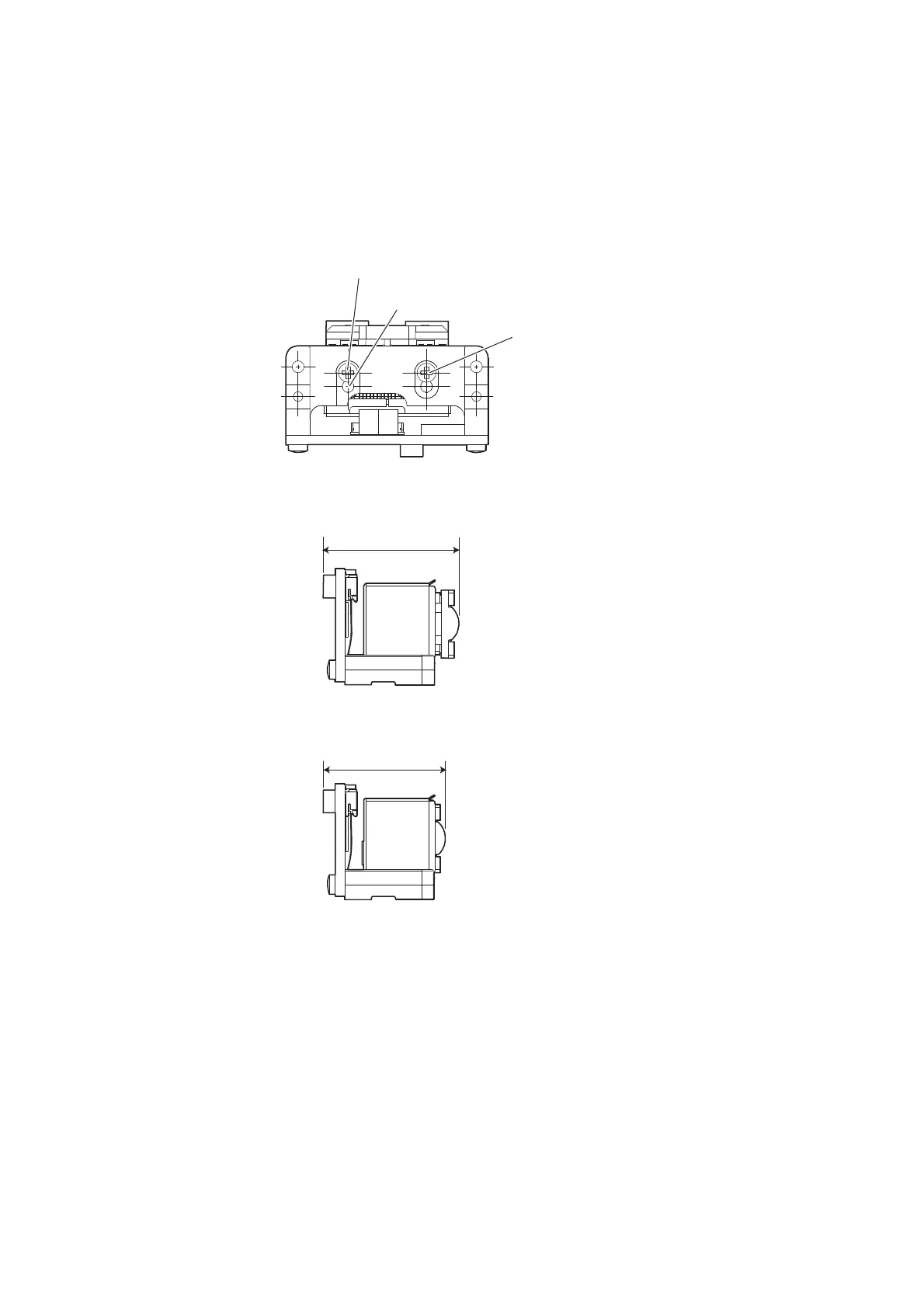

EA11 Imager Position on the Mounting Bracket
20.5 mm
0.81 in
22.8 mm
0.90 in
Imager position 1
Imager position 2
Imager Position 1
Imager Position 2
Screws (2) to mount imager to bracket:
PT-screw K18, max torque 14 Ncm (1.24 lb-in)
±1 Ncm (0.09 lb-in)
