Appendix D — EA30 Imager
ED40 Decode Board Integration Guide 137

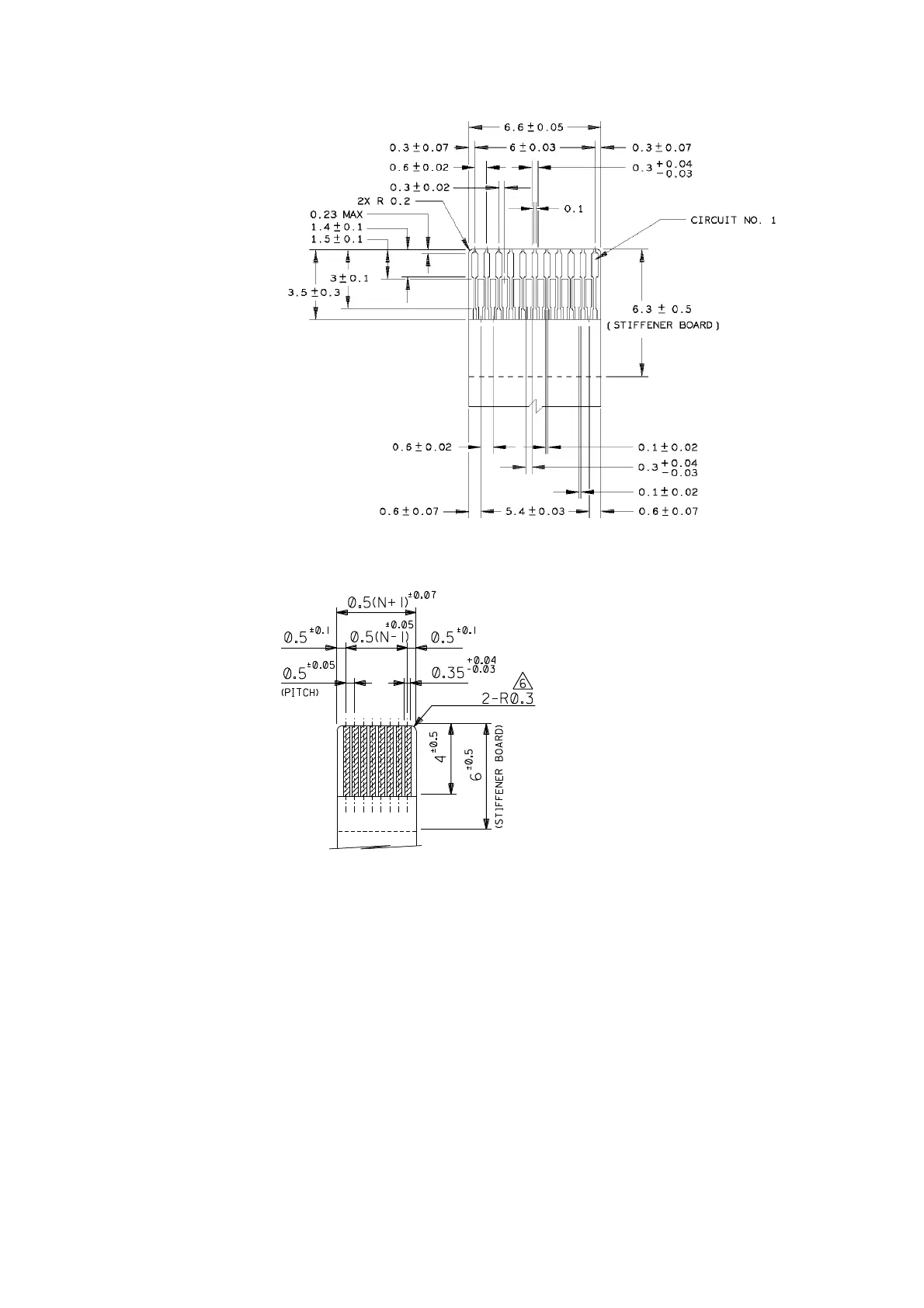

21-Pin End Connected to the ED40: The 21-pin end of the ribbon cable is connected to the
tin plated Molex connector (P/N 54393-2182) on the ED40 Decode Board.
6-Pin End Connected to the Host: The 6-contact end of the ribbon cable is connected to the
host (example connector: Molex 52559-0652). This connection provides the extra power
needed for the EA30 imager.
