Chapter 2 — Mechanical Integration
ED40 Decode Board Integration Guide 9
2 Insert the ribbon cable. Make sure that the contacts are facing the board and
that the connectors on the ribbon cable are touching the connectors on the
imager.
3 Close the connector clip.

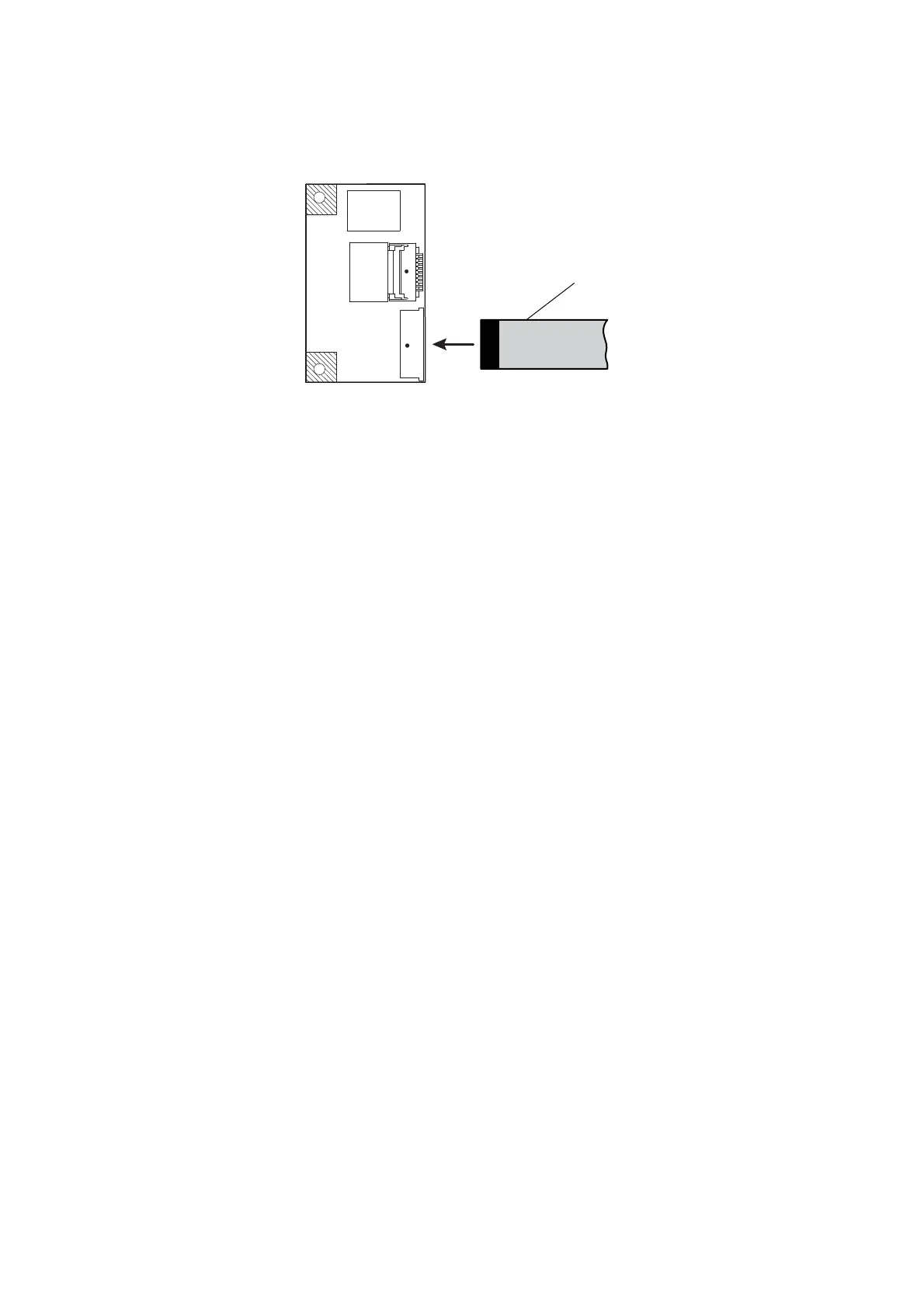

Ribbon cable
