Goodrive300-01A-RT series integrated machine Fault handling and product maintenance
-97-
Remove the combination
screws with a
screwdriver, and the
base plate together with
the transformer can be
separated from the VFD
body.

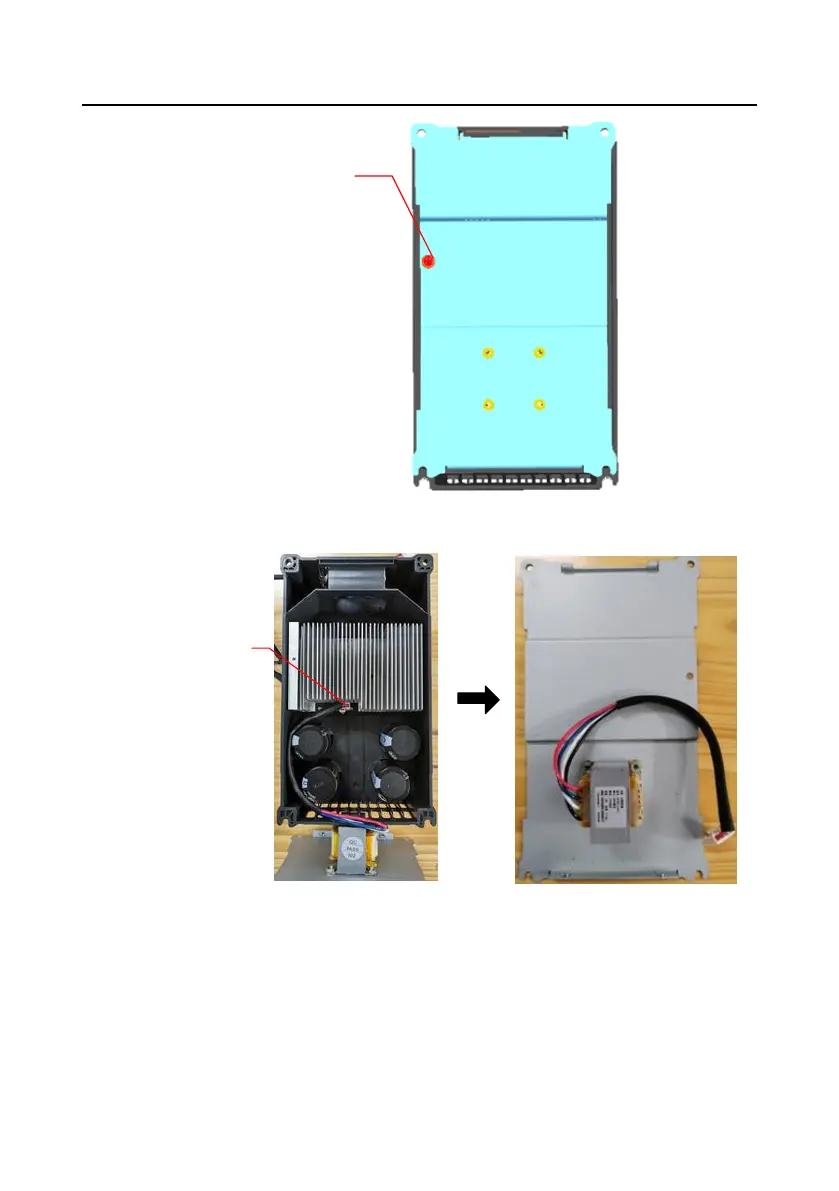

Figure 6-1 Diagram for removing combination screws
Separate the
transformer cable from
the VFD body by hand,
and the transformer
and base plate can be
disassembled.
Note: It is required to
plug in connectors
during installation.
Figure 6-2 Diagram for disassembling the power-frequency transformer
