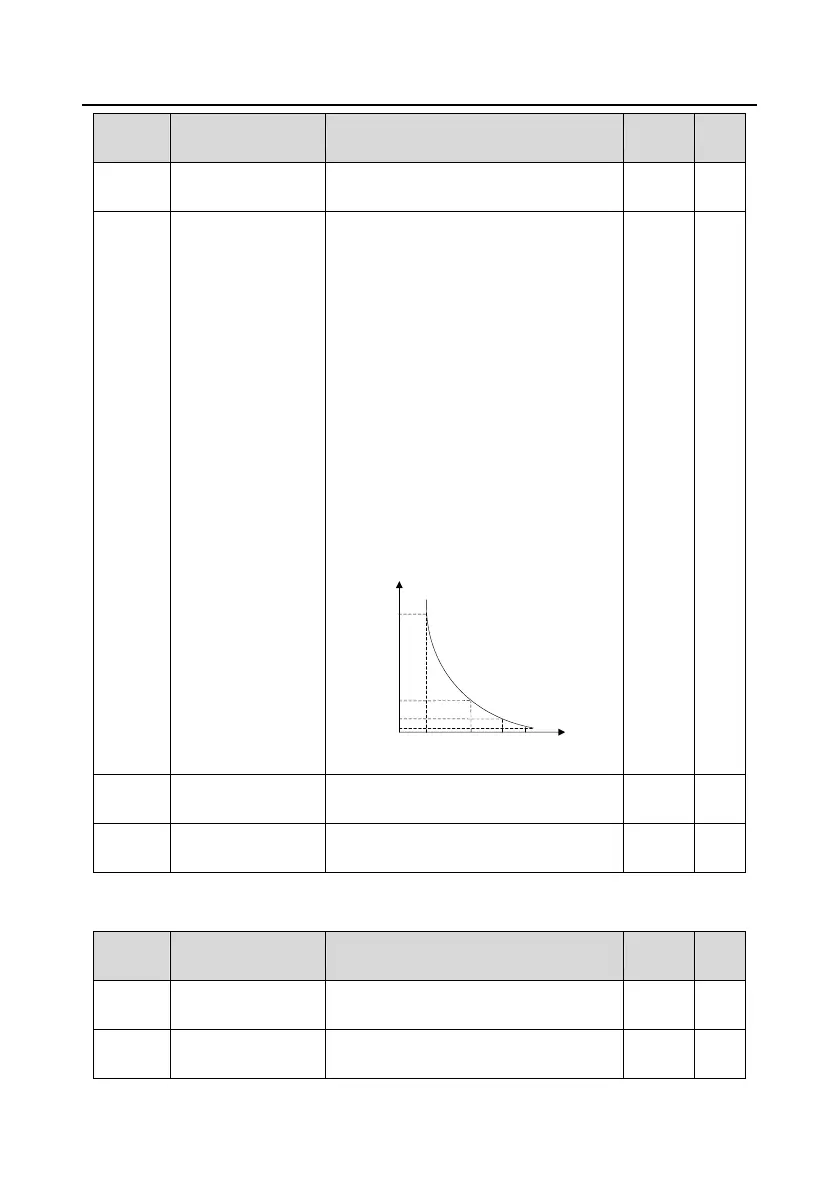

INVT Goodrive300-01A-RT Series User Manual

Goodrive300-01A-RT series integrated machine Function description
-36-
Function
code
Name
Description
Default
Modify
2: Variable-frequency motor (without low
speed compensation)
P02.27
Overload protection
coefficient of motor 1
Motor overload multiple M = Iout/(In*K)
In is rated motor current, Iout is VFD output
current, K is motor overload protection
coefficient.
A smaller value of K indicates a bigger value
of M.
When M=116%, protection is performed after
motor overload lasts for 1 hour; when
M=150%, protection is performed after motor
overload lasts for 12 minutes; when
M=180%, protection is performed after motor
overload lasts for 5 minutes; when M=200%,
protection is performed after motor overload
lasts for 1 minute; and when M ≥ 400%,
protection is performed immediately.
1
5
12
60
116%
200%
Time t (min)
Times of motor
overload
150% 180%
Setting range: 20.0%–120.0%
100.0%
○
P02.28
Power calibration
coefficient of motor 1
0.00–3.00
1.00
○
P02.29
Parameter display
selection of motor 1
0: Displayed according to the motor type
1: All displayed
0
○
P03 group Vector control
Function
code
Name
Description
Default
Modify
P03.00
Speed-loop
proportional gain 1
0–200.0
20.0
○
P03.01
Speed-loop integral
time 1
0.000–10.000s
0.200s
○
