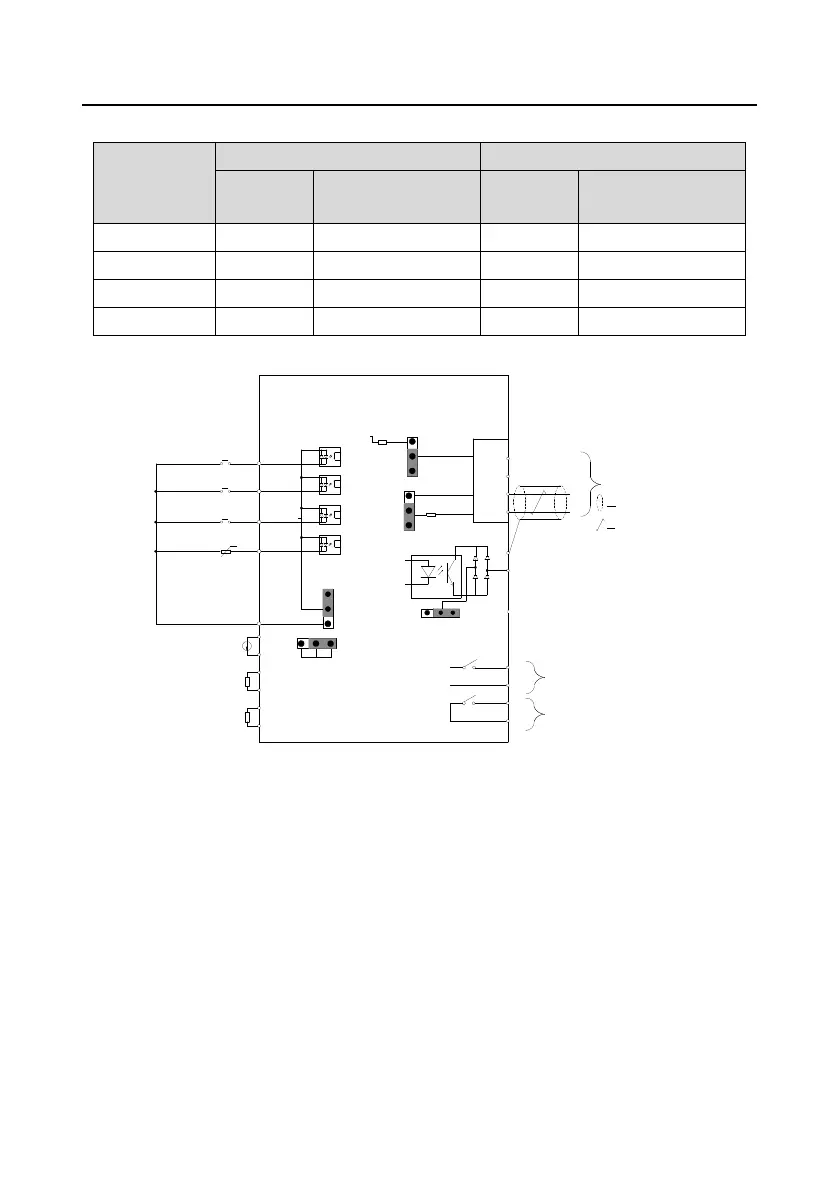

INVT Goodrive300-01A-RT Series User Manual

Goodrive300-01A-RT series integrated machine Wiring instruction
-11-
Table 3-2 Screw specification and torque of main circuit terminals
Power
Main circuit terminal
Fan terminal
Screw
specification
Torque of torque
driver (N•m)
Screw
specification
Torque of torque
driver (N•m)
7.5kW
M4
1.2
M4
1.2
11kW–15kW
M5
2.5
M4
1.2
22kW
M6
3.5
M4
1.2
30kW–37kW
M6
3.5
M4
1.2
3.2 Control circuit wiring and terminal description
Emergency stop
User-defined
User-defined
COM
PTC
S3
S2
S1
Motor overtemperature
protection
PT1-
PT1+
PT2-
PT2+
P1-
P1+
GND
+24V
485-
485+
PT100
PT100
Pressure transmitter
V I
J1
Y1
ON
COM
PW
+24V
J9
J2
to touch screen or
controller
Relay 1 output
220VAC
PE
GD300-01A-RT series
Shielded cable
Twisted pair
Solenoid valve
RO1A
RO1C
TA1
TC1
COM
CME
+24V
J7
+24V
+24V
J3
Figure 3-6 Control circuit wiring diagram
