INVT Goodrive300-01A-RT Series User Manual

Goodrive300-01A-RT series integrated machine HMI
-138-
Category
Function
Specifications
Storage
temperature
-20–60℃
UV resistance
Disallowed to work under strong UV (such as direct
sunlight)
Ambient humidity
10–90%RH (no condensation)
Shock resistance
10–25Hz (X, Y, Z direction 2G/30 minutes)
Cooling method
Natural air cooling
Mechanical
performance
Ingress protection
rating
The front panel reaches IP65 (installed with a flat panel
cabinet), and the rear shell of the device reaches IP20.
Mechanical
structure
Engineering plastic
Cut-out dimensions
192mm×138mm
Overall dimensions
204mm×145mm×33.8mm
Overall weight
About 560g
Table C-2 Ordering description for the touch screen
Item
Description
Order No.
HMI
Includes a 2.5-meter RS485
communication cable, a 2.5-meter
24V power supply cable, and a
2.5-meter emergency stop cable.
11026-00011

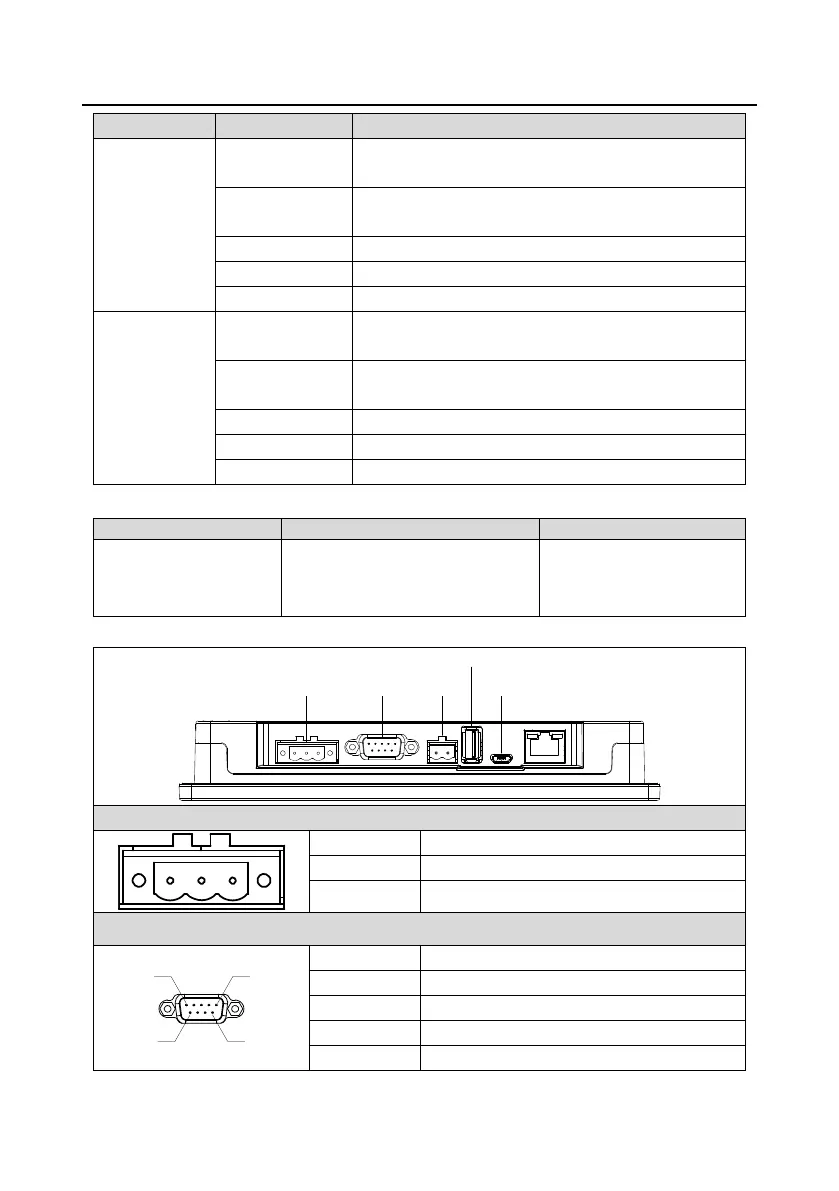

C.2 Connection terminals
Power supply
terminals
DB9 serial port
RS485 serial
port
USB Host
USB Slave
Power supply terminals (Pins 1–3, from left to right)
Pin1
FG
Pin2
0V
Pin3
DC24V
DB9 serial port terminals
Pin1 Pin5
Pin9Pin6
Pin1
Rx-(B）
Pin2
RxD (COM1 RS232)
Pin3
TxD (COM1 RS232)
Pin4
Tx-
Pin5
GND
