INVT Goodrive300-01A-RT Series User Manual

Goodrive300-01A-RT series integrated machine Product dimensions
-100-

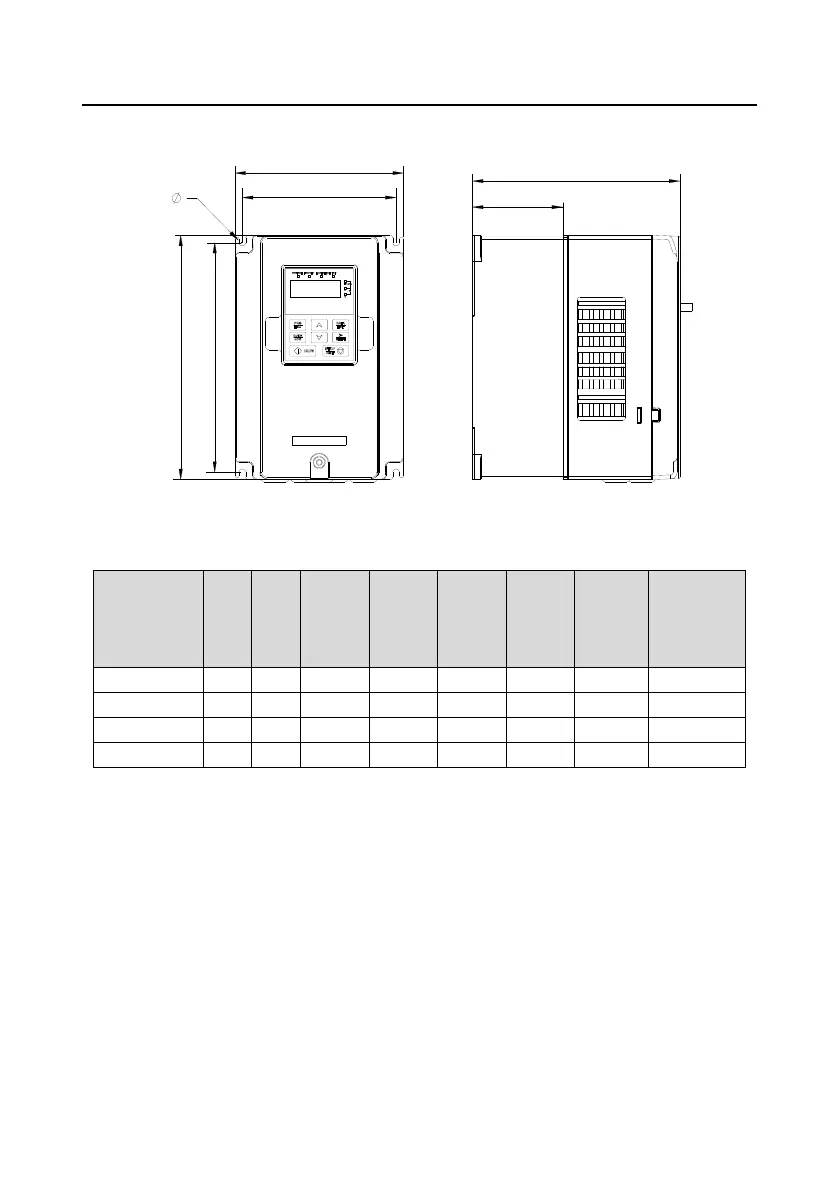

A.3 Wall installation dimensions
H1
H2
W1
W2
D2
D1
Figure A-3 Wall installation diagram
Table A-1 Wall installation dimensions (unit: mm)
Power
W1
W2
H1
H2
D1
D2
Diameter
of
mounting
hole
Screw
specification
7.5kW
146
131
256
243.5
167
86
6
M5
11–15kW
170
151
320
303.5
196.5
113
6
M5
22kW
200
185
340.5
328.5
184.5
104.5
6
M5
30–37kW
250
230
400
380
202
123.5
6
M5
