Appendix B RS485 communication LCD keypad
B.1 LCD keypad introduction
Goodrive300-01A-RT series VFD supports the use of the optional LCD keypad that uses RS485
communication. The LCD keypad can be used to control the start and stop of the VFD, read and write
the status data, and set the parameters.
1
2
7
4
5
6
11
8
9
10
12
3
13
14
15

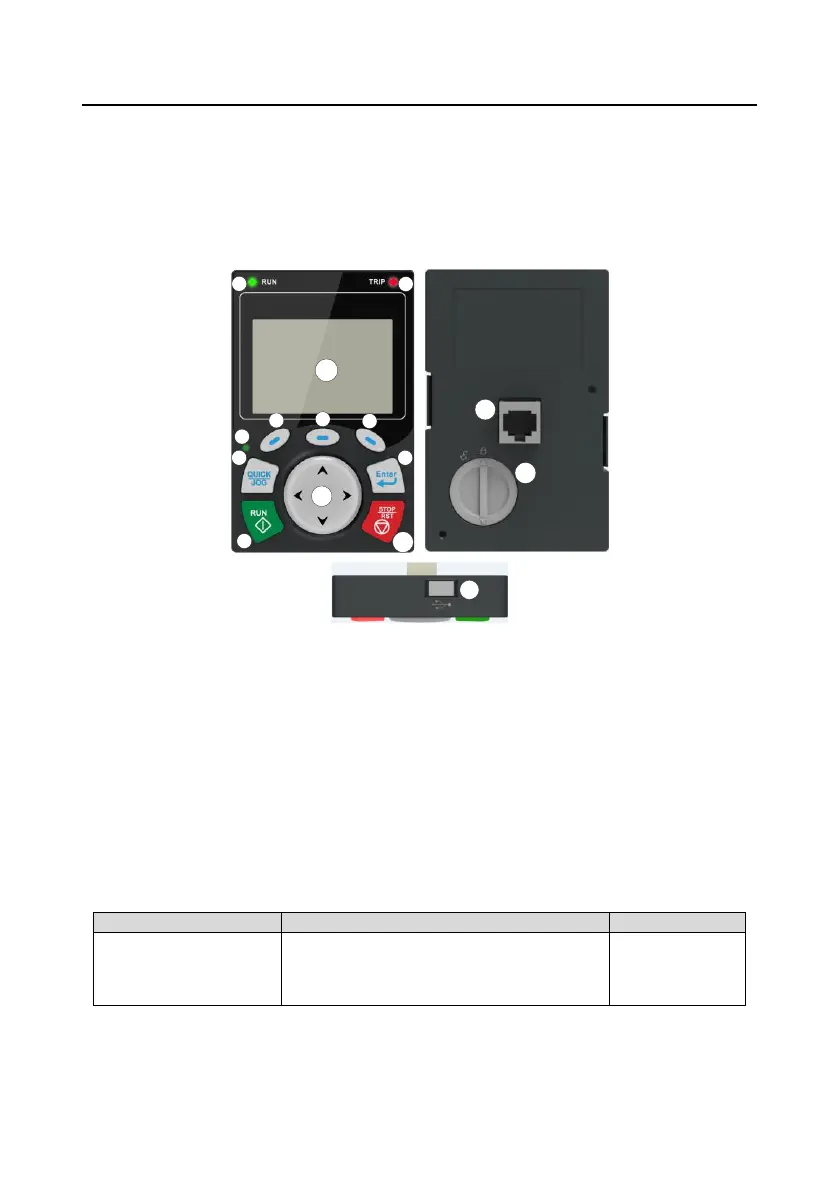

Figure B-1 LCD keypad
Note:
 The LCD keypad is equipped with a real-time clock, which can run properly after being installed
with batteries even if the power line is disconnected. The clock battery (type: CR2032) is user
purchased.
 The LCD keypad has the parameter copying function.
 If you need install the keypad on another position rather than on the VFD, use M3 screws or a
keypad installation bracket for fixing, and use a keypad extension cable with a standard RJ45
crystal head.
Table B-1 Ordering description for the RS485 communication LCD keypad
Item
Description
Order No.
RS485 communication
LCD keypad
Includes a 2.5-meter RS485 keypad cable, a
2.5-meter emergency stop cable, and a
keypad installation bracket.
11022-00141
