INVT Goodrive300-01A-RT Series - Page 109

Goodrive300-01A-RT series integrated machine RS485 communication LCD keypad
-103-

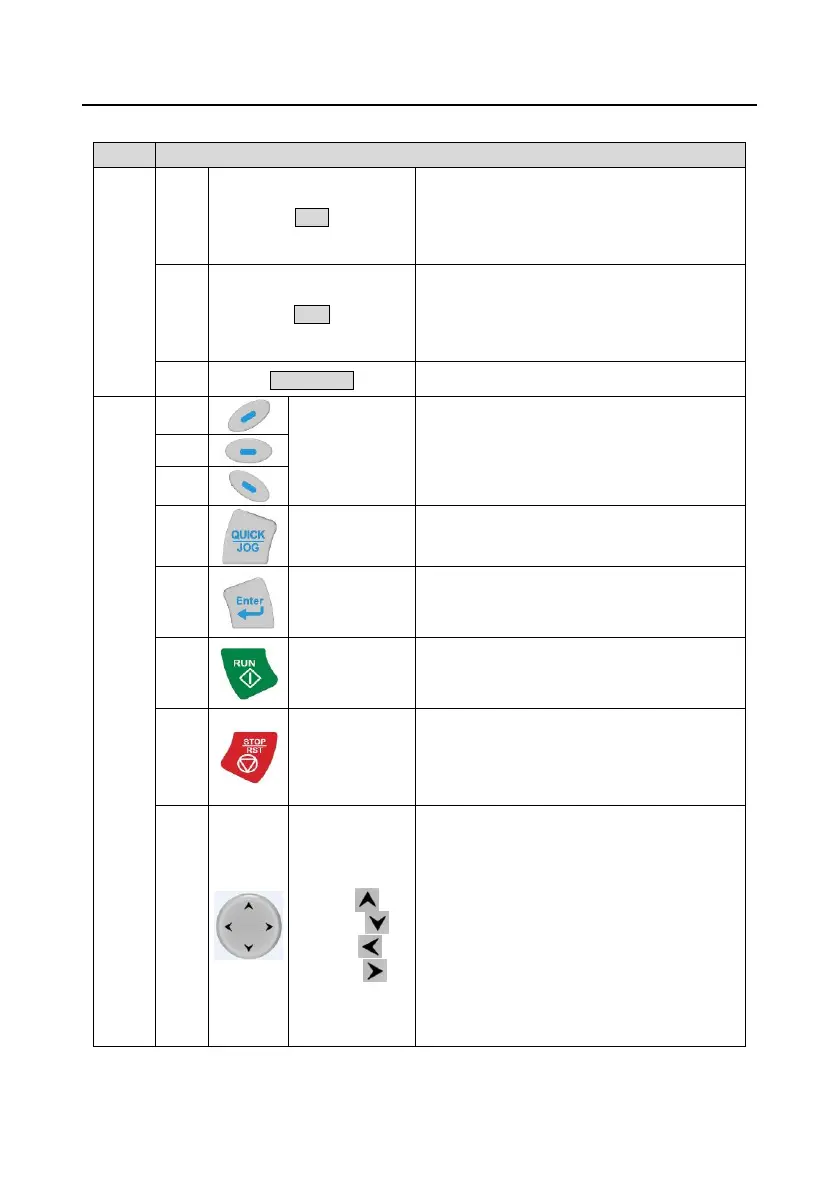

Table B-2 LCD keypad description
Name
Description
Status
indicator
①
RUN
VFD running status indicator.
LED on: in running state
LED off: in stopped state
LED blinking: in parameter autotuning state
②
TRIP
Fault indicator.
LED on: in fault state
LED off: in normal state
LED blinking: in pre-alarm state
③
QUICK/JOG
None
Keys
④
Function key
The function of a function key varies with the
menu and is displayed at the bottom of the
display area.
⑤
⑥
⑦
Shortcut key
None
⑧
Confirmation key
None
⑨
Run key
Under keypad operation mode, the run key is
used for running or autotuning.
⑩
Stop/Reset key
In running state, you can press this key to stop
running or autotuning. This key is restricted by
P07.04. In fault alarm state, this key can be used
for reset in any control modes.
⑪
Direction key
Up:
Down:
Left:
Right:
Up: Its function varies with the interface
(Example: shifting up the displayed/selected item
and changing digits)
Down: Its function varies with the interface
(Example: shifting down the displayed/selected
item and changing digits)
Left: Its function varies with the interface
(Example: switching the monitoring interface)
Right: Its function varies with the interface
(Example: switching the monitoring interface)
