Goodrive300-01A-RT
series integrated machine
Commissioning instruction
-
29
-

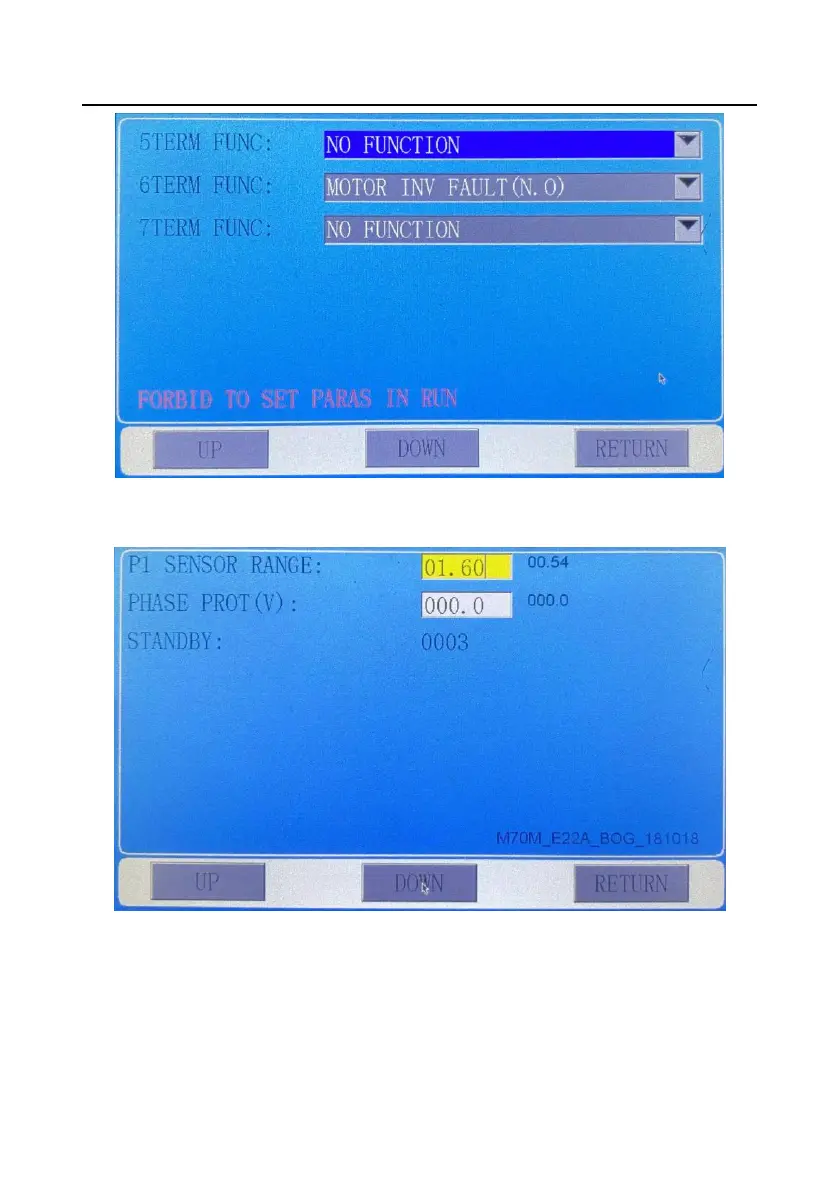

Figure 4-
19
Hardware parameter setting interface
Calibration parameter: Set relevant data of the controller
.
Figure 4-
20
Calibration parameter setting interface
Factory
parameters:
Set
unloading
pressure,
rated
fan
current,
pre-
alarm
temperature,
and
alarm
stop temperatu
re.
34
36
Table of Contents
Preface
3
Table of Contents
4
1 Safety Precautions
7
What this Chapter Contains
7
Safety Definition
7
Warning
7
Safety Guidelines
8
Delivery and Installation
8
Commissioning and Running
9
Maintenance and Component Replacement
9
Scrap Treatment
10
2 Product Overview
11
Product Specification
11
Product Nameplate
13
Model Description
13
Rated Specifications
14
3 Wiring Instruction
15
Main Circuit Wiring and Terminal Description
15
Control Circuit Wiring and Terminal Description
17
4 Commissioning Instruction
22
HMI Commissioning
22
System Wiring
22
Commissioning Steps for HMI
22
Plot Controller Adaptation Commissioning
28
System Wiring
28
Commissioning Steps
29
5 Function Description
37
Function Parameter List
37
P00 Group Basic Functions
37
P01 Group Start and Stop Control
39
P02 Group Motor 1 Parameters
40
P03 Group Vector Control
42
P04 Group SVPWM Control
45
P05 Group Input Terminals
47
P06 Group Output Terminals
50
P07 Group HMI
51
P08 Group Enhanced Functions
57
P09 Group PID Control
62
P11 Group Protection Parameters
64
P13 Group Synchronous Motor Control Parameters
66
P14 Group Serial Communication
68
P17 Group Status Viewing
69
P18 Group Functions for Air Compressors
71
P19 Group Air Compressor Status Viewing
78
P21 Group Power-Frequency Fan Protection
83
Control Logic of the Air Compressor
86
PID Commissioning
88
General Procedures for PID Parameter Settings
89
PID Adjusting Methods
90
6 Fault Handling and Product Maintenance
95
VFD Faults and Solutions
95
Fault Contents and Solutions of Air Compressor Equipment
99
Transformer Maintenance Instruction
102
Appendix A Product Dimensions
105
LED Keypad Diagram
105
External Keypad Installation Dimensions
105
Wall Installation Dimensions
106
Flange Installation Dimensions
107
Appendix B RS485 Communication LCD Keypad
108
LCD Keypad Introduction
108
LCD Keypad Structure
110
RS485 Communication Cable
111
Wiring Description
111
Cable Description
111
Setting Parameters on the LCD Keypad
112
Initial Interface
112
Working Environment Interface
112
Setting Interface
114
Alarm Interface
115
Main Menu Interface
115
User Parameter Interface
116
Maintenance Parameter Interface
121
Protection Parameter Interface
123
Running Information
126
Master Parameter Interface
127
Fan Parameter Interface
130
Fault Records
131
VFD Fault Interface
132
Air Compressor Fault Interface
132
Real-Time Alarm Interface
133
Historic Alarm Interface
134
VFD Information
134
System Configuration
136
Factory Commissioning Wizard
136
Date and Time Display
138
Password Setting
138
Date and Time Setting
139
Screen Backlight Setting
139
Function Code Searching
140
VFD Model Selection
140
Parameter Copying
141
Language Setting
142
Appendix C HMI
143
Specifications
143
Connection Terminals
144
Wiring Description
145
Cable Description
146
Installation Dimensions and Description
148
Touch Screen Installation Dimensions
148
Cut-Out Installation Description
148
Touch Screen Parameter Setting with One Click
149
Appendix D Communication Protocol
152
Application Mode
152
RTU Command Code and Communication Data
152
Command Code: 03H, Read N Words (N≤16)
152
Command Code: 06H, Write One Word
152
Command Code: 08H, Diagnosis Function
152
Definition of Data Address
153
Error Message Response
156
Appendix E Common EMC Problems and Troubleshooting
158
Interference Problems of Meter Switches and Sensors
158
RS485 Communication Interferences
158
Unstoppable or Shimmering Indicator Caused by Coupling of Motor Cable
159
Leakage Current and Residual Current Device (RCD)
160
Problem of Charged Device Shell
161
