Chapter 8 ADJUSTMENT MODE
6.

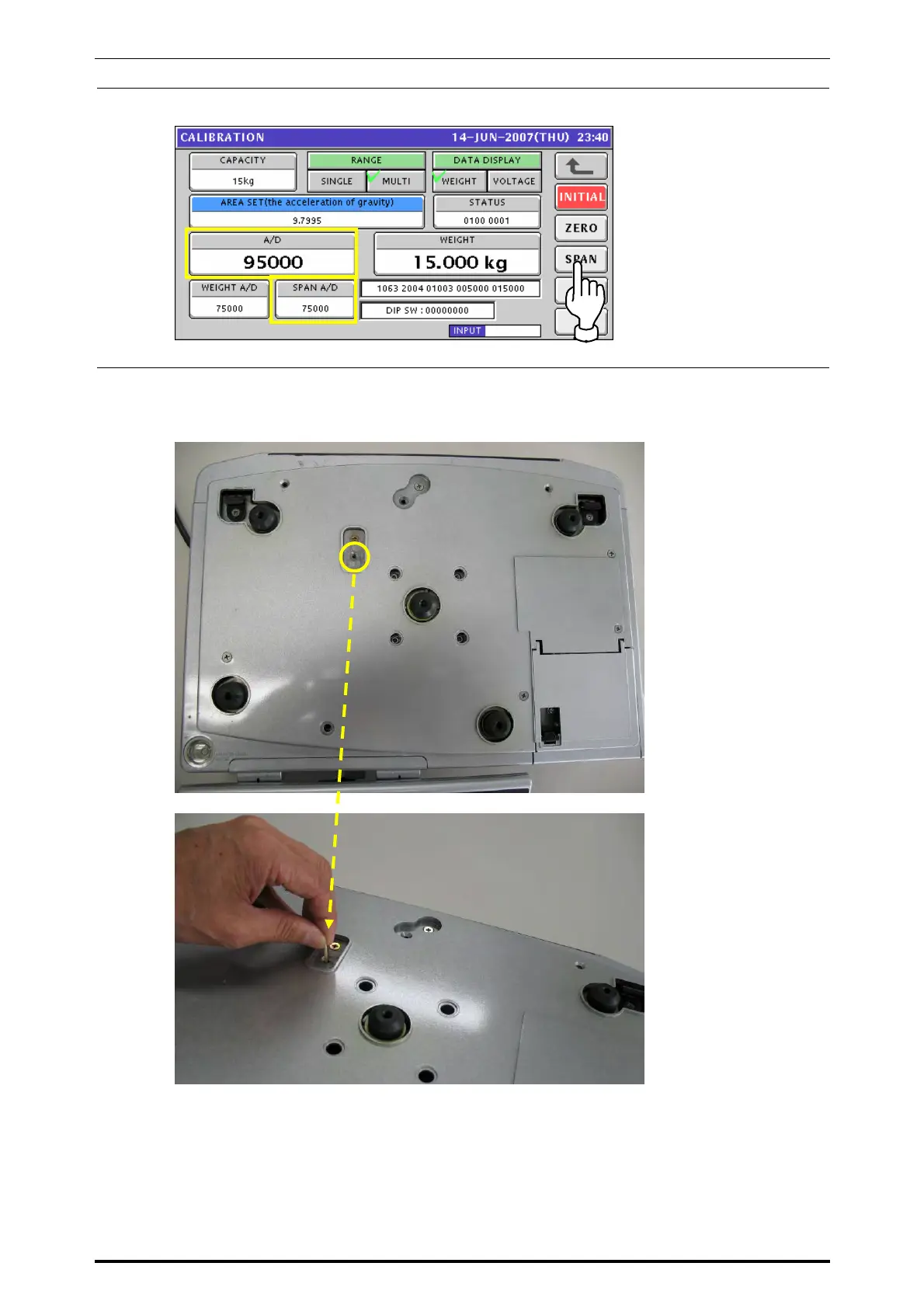

Repeat steps 3 through 5 above several times until the A/D display field shows “95000”,
and the SPAN A/D display field shows ”75000”.
7.
To memorize the adjusted span value, press the Memory button located on the main
board inside of the machine with a nonconductive and thin material such a wooden stick
through the hole on the upper case.
8-18 UNI-7 Service Manual
