2.2 Display and Name of Screen
2.2.1 Tidal Current Display
The current screen mainly displays current direction and speed for the subculture of the current in five
layers under the surface of the water, the ship speed and the course.
The current screen is displayed with the [CURR] key. There are three screens [current 1(circle graph
display), current 2(numeric display), and current 3(echo display)], and the screen changes into the
current screen whenever the [CURR] key is pushed.

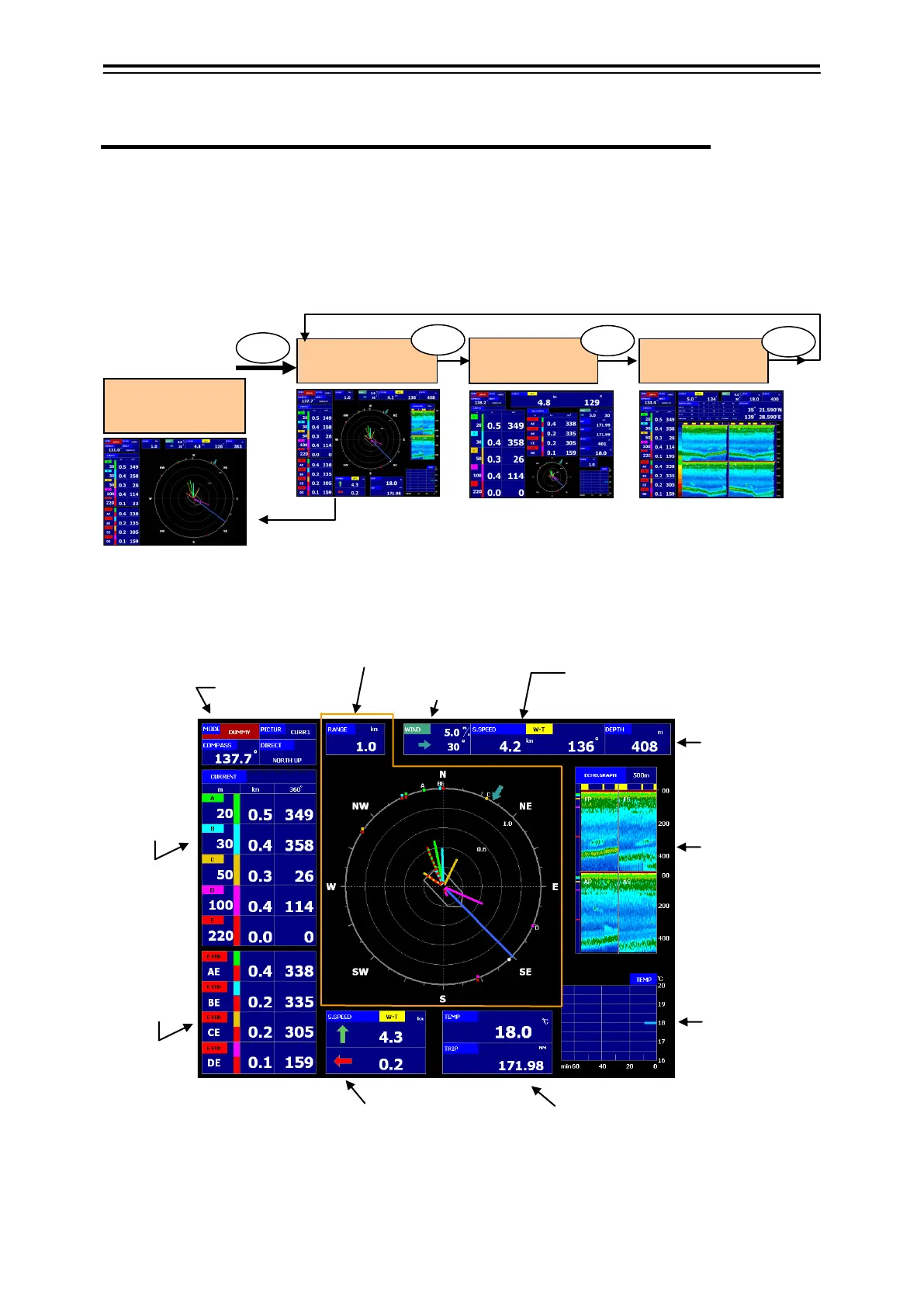

1) Current 1 screen (circle graph display): Example of display
In the Sea/Sea Bottom
Echo Display
Water Temperature
and it’s Graph
Trip/Timer
Absolute Current:
Depth
Current
Speed
Direction
Relative Current:
Standard Layer
Current
Speed
Direction
Wind Direction
Wind Speed
Mode
Screen
Compass
Bearing Standard
Ship Speed・Course
Doppler S.Speed: Bottom Tracking
Water Tracking
GPS Ship Speed: GPS
Bottom Depth
Ship Speed:
Fore/After
Port/Starboard
Current Vector:
Circle Graph Display
Current 1 Screen
Circle Graph Display
Current 2 Screen
Numeric Display
Current 3 Screen
Echo Display
Current 1 Screen
Zoom up
Circle Graph Display
When the graph zoom up is selected by the menu, the display of circle graph zoom up
is done.
CURR
CURR
CURR
CURR
