JRC JLN-652 User Manual

2-14
2.2.4 Graph Display
Current direction/speed, depth, ship speed, water temperature (*401), and wind direction/speed (*402)
from the past to present of the current in five layers are displayed.
The passage screen is displayed with the [GRAPH] key. It is possible to display it by enlarging the display
range in the passage graph by the menu.

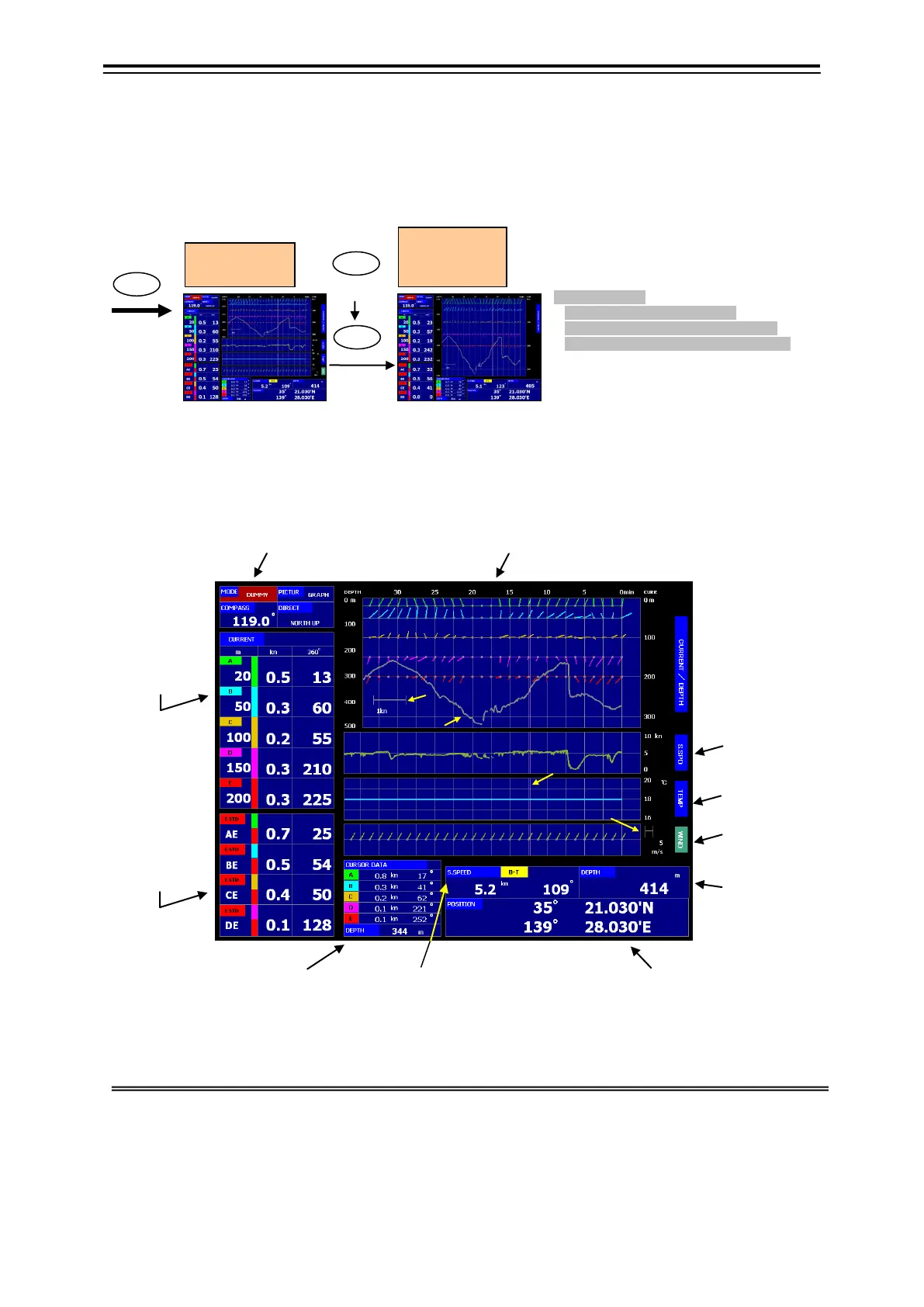

Graph screen: Example of display
*401 Water Temperature: It is necessary to connect the water temperature sensor for the display of the water temperature graph.
*402 Wind Direction/Wind Speed: It is necessary to connect the wind direction/wind speed sensor for the display of the wind
direction/wind speed graph.
Ship Speed・Course
Doppler S.Speed: Bottom
Tracking/Water
Tracking
GPS Ship Speed: GPS
Wind Direction/
Wind Speed Graph
Data Display of
Cursor Position
Water Temperature
Graph
Current/Depth Graph:
Current Vector and Measurement Depth Line
Bottom Depth Line
Ship Speed Graph
①
Current Vector Range
②
Wind Direction/Wind Speed
Vector Range
Depth Graph
Cursor
Ship Position
Bottom Depth
Mode/Screen
Compass/Bearing
Standard
Absolute
Current:
Depth
Curent
Speed
Direction
Relative
Current:
Standard
Layer
Current
Speed
Direction
On the Menu,
History Screen:
Ship speed display/non-display
Water temperature display/non-display
Wind direction speed display/non-display
When setting it to the above-mentioned
Current/depth graph is enlarged and
displayed.
･Selecting frame menu display: 12.1.2- (18)
GRAPH
□
MENU
History Screen
History Screen
Enlarge
Display
