JRC JLN-652 User Manual

2-16
2.2.5 Fish Finder Display
The fish finder screen converts the reflection signal of the supersonic wave launched in four directions
into 16 colors according to strength, and displays the water inside.
Because the supersonic wave is turned in four directions (Fore Starboard, Fore Port, After Starboard,
After Port), each detection result can be displayed by division (four screens) into four, and, in addition,
two screens and one screen displays can be selected.
The fish finder screen is displayed with the [FISH] key. The fish finder screen includes three screens; fish
finder 1(one direction display), fish finder 2(two direction display), and fish finder 3(four direction display).
The selection of the screen is set by the menu. (*501)

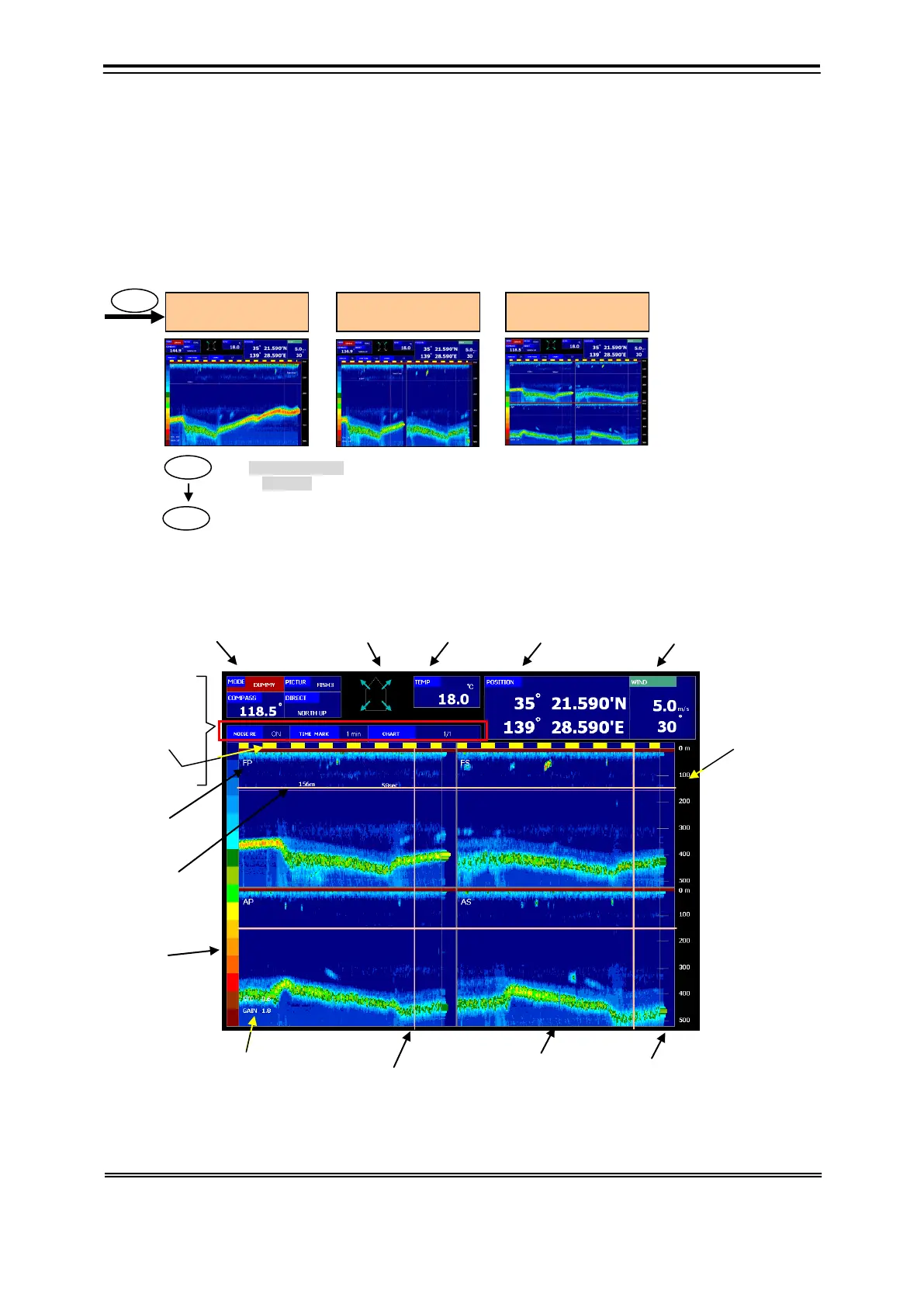

Fish Finder screen: Example of display
*501 Ship speed and the current cannot be displayed for the fish finder screen.
*502 Refer to 4.6.1 “Split-screen Selecting”.
Fore Port
Fore Starboard
After Starboard
After Port
Mode/Screen
Compass/Bearing
Ship Position
Direction of
Display Beam
Water
Temperature
Wind Direction
Wind Speed
Horizontal
Cursor
Color
Sample
STC Value Display
Gain Value Display
Beam Direction of
Display Screen
Depth Range:
Unit selection
of m/ fathom
Fish Finder Display
Interference：
ON/OFF
Time Mark
：
Each 30 second
Scrolling Screen
Vertical
Cursor
A scope:
Strength of the echo is expressed
in the side length (only the right half)
and the color bar.
At fish finder screen on the menu, it is selected
from 4Screen/Fore/Starboard/Port
/ Fore Starboard/Fore Port/ After Starboard
/ After Port. *502
・Selecting frame menu display: 12.1.2- (19)
□
Gain Adjustment:
Gain is set with the gain knob
of the keyboard.
STC Adjustment
：
STC is set with the STA knob
of the keyboard.
Depth Range/Scrolling
Screen/ Color arrangement:
It sets by the fish finder screen
menu.
・Selecting frame menu
display: 12.1.2-
(19)
Fish Finder 1 Screen
1 Direction Display
or
Fish Finder 2 Screen
2 Direction Display
Fish Finder 3 Screen
4 Direction Display
or
FISH
MENU
