Right part of the screen
Left part of the screen
*110 Refer to page 2-6. *114 Refer to page 2-8.
*410 Depth Graph: Refer to 4.5.1 “Current/Depth Graph Setting”.
*411 Ship Speed Graph: Refer to 4.5.2 “Ship Speed Graph Setting”.
*412 Water Temperature Graph: Refer to 4.5.3 “Water Temperature Graph Setting”.
*413 Wind Direction/Wind Speed Graph: Refer to 4.5.4 “Wind Direction/Speed Setting”.

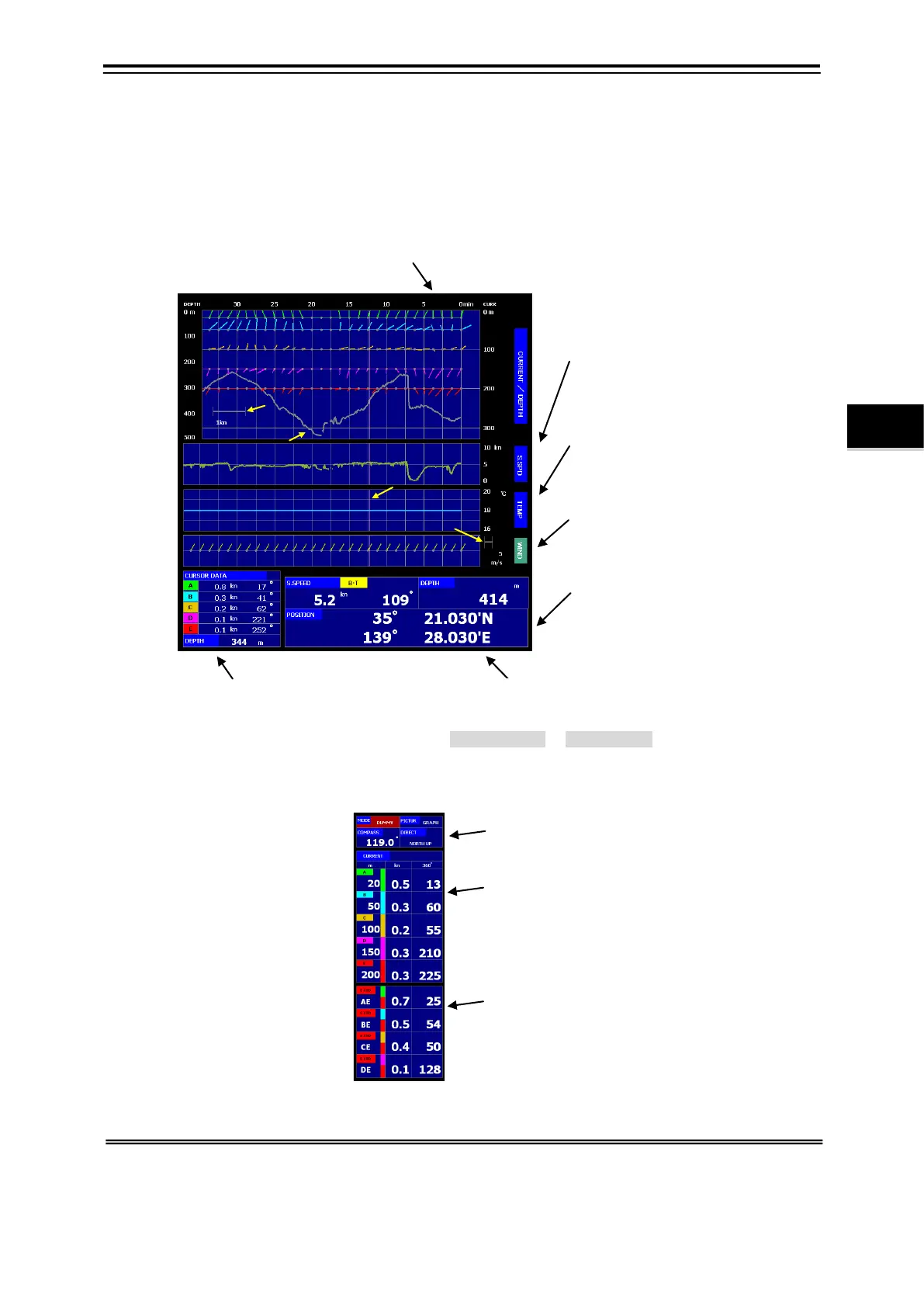

Current/Depth Graph: The current is displayed right within the range of depth of the vertical
axis, and depth is displayed left.
Current Graph: The history of the time of the current vector on each intersection of the
horizontal axis and the depth value of the graph is displayed.
① is a range of the current vector.
Depth Graph:
The history of the time of depth is displayed. The range of the display depth is
set besides the current graph though it displays on the current graph repeatedly. *410
・Selecting frame menu display: 12.1.2- (18)
Ship Speed Graph:
The history of the time of ship speed is
displayed in the graph. *411
･Selecting frame menu display: 12.1.2- (17)
Water Temperature Graph:
The history of the time of the water
temperature is displayed. *412
･Selecting frame menu display: 12.1.2- (7)
Wind Direction/Wind Speed Graph:
The history of the time of the wind
direction/wind speed is displayed in the
vector. ② is a range of the vector of the
wind direction/wind speed. *413
･
Selecting frame menu display: 12.1.2- (16)
Ship Position:
Latitude and the longitude at the ship
position are displayed. *114
･Selecting frame menu display:
12.1.2-(13)
Cursor Position Data:
The current and depth in the
cursor position are displayed.
・Selecting frame menu display:
12.1.2- (18)
Ship Speed・Course:
The ship speed and course are displayed.
Doppler:
The bottom tracking or water tracking ship speed measured with
the current meter is displayed. *110
・Selecting frame menu display: 12.1.2-(10)
①
Current Vector Range
②
Wind Direction/Wind Speed
Vector Range
Depth Graph
Cursor
Refer to 2.2.1”Current 1 screen (circle graph display)”
Mode/Screen
Compass/Bearing
Standard
Absolute Current:
Depth
Current Speed
Current Direction
Relative Current:
Standard Layer
Current Speed
Current Direction
