JRC JLN-652 User Manual

4-25
4

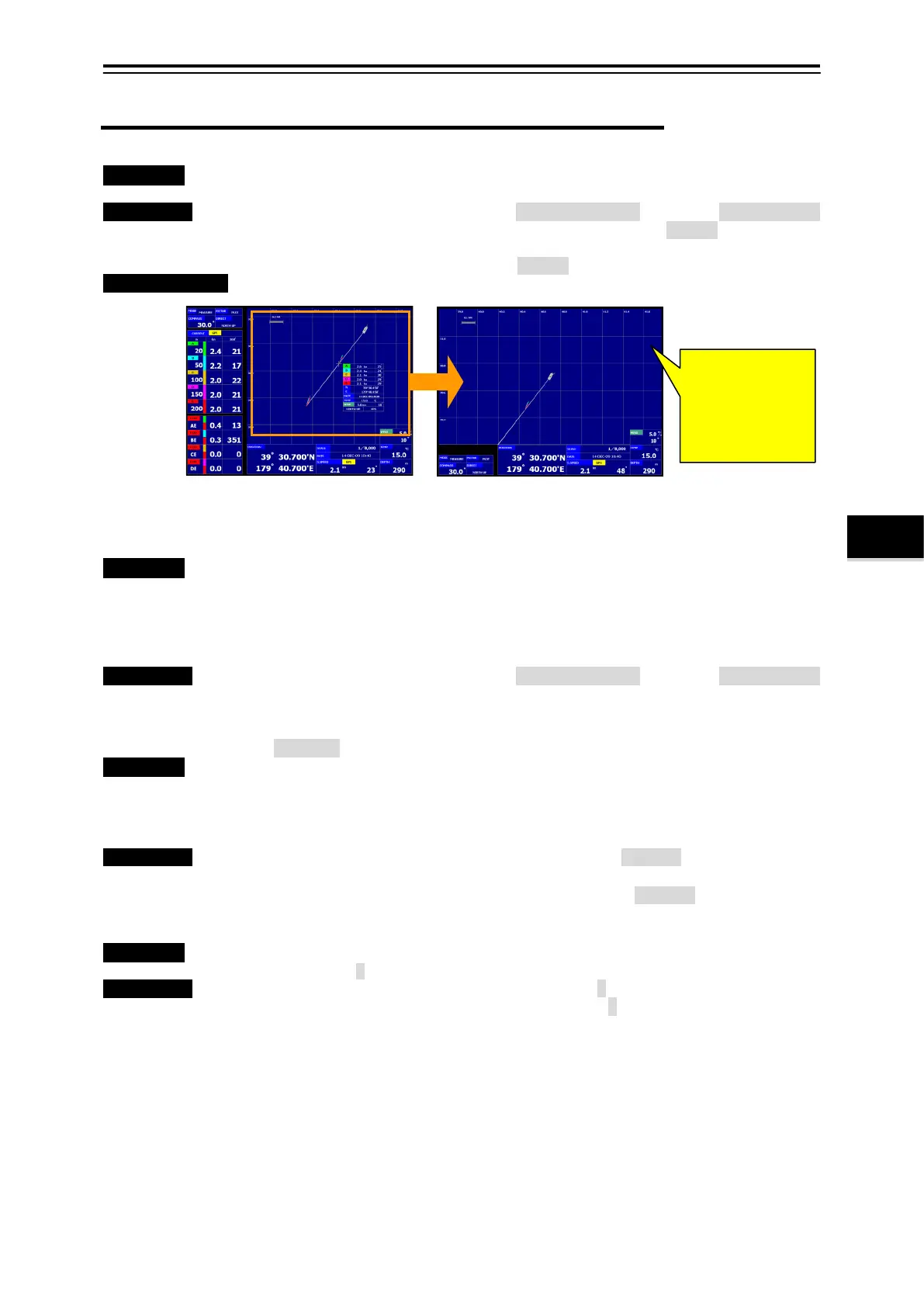

4.4 Track Plot Display Setting
4.4.1 Current Numerical Value Display: Display / Non-display
・Function・ ON or OFF of A numeric display of "Current direction and Current speed" displayed at the
left of the screen can be selected.
Operation Standard Menu: [MENU] key/Menu screen/Display setting ≫/[ENT] key/Plot screen ≫
/[ENT] key/Plot screen setting menu/Current numeric value display: Display/Non-display
Selection Frame Menu: [
□] key/ Enclose “Plot screen” with the frame /[MENU] key/Plot
drawing menu/Current numeric value display: Display/Non-display
Display screen
4.4.2 Five Layer Display of Current Vector
・Function・ The current vector is displayed at constant intervals. The display form of the vector is
equal to the current screen.
It displays by the solid line at the absolute current display, and it displays it in the short
dashed line at the relative current display.
Moreover, on/off of the display of each vector can be displayed. When it is not possible to
measure it, it doesn't display it.
Operation Standard Menu: [MENU] key/Menu screen/Display setting ≫/[ENT] key/Plot screen ≫
/[ENT] key/Plot screen setting menu
Selection Frame Menu: [
□] key/ Enclose “Plot screen” with the frame /[MENU] key/Plot
drawing menu
Current Vector A-E: Absolute/Relative/Absolute + Relative/OFF
・Function・ The display of the current vector of each level of A-E can be set by the menu.
Absolute: The absolute current is displayed on the track by the solid line.
Relativity: A relative current is displayed on the track in the short dashed line.
Absolutely + relativity: Both absolute current and a relative current are displayed.
OFF: The vector of the current is made non-display.
Operation Standard Menu: Plot screen setting menu/Current vector A: Absolute/Relative/Absolute +
Relative/OFF・・・Same as current vector B-E
Selection Frame Menu: Plot drawing menu/Current vector A: Absolute/Relative/Absolute
+ Relative/OFF・・・Same as current vector B-E
Vector Length
・Function・ The length of the current vector displayed on the track is set.
Setting value: [0.5 1 2 4] cm/kn
Operation Standard Menu: Plot screen setting menu/Vector length: 4 cm/kn
Selection Frame Menu: Plot drawing menu/Vector length: 4 cm/kn
▼
▼
Current value: Display
Current value: Non-display
The range of the
track display is
extended when the
current numerical
value is set to
non-display and it
displays.
