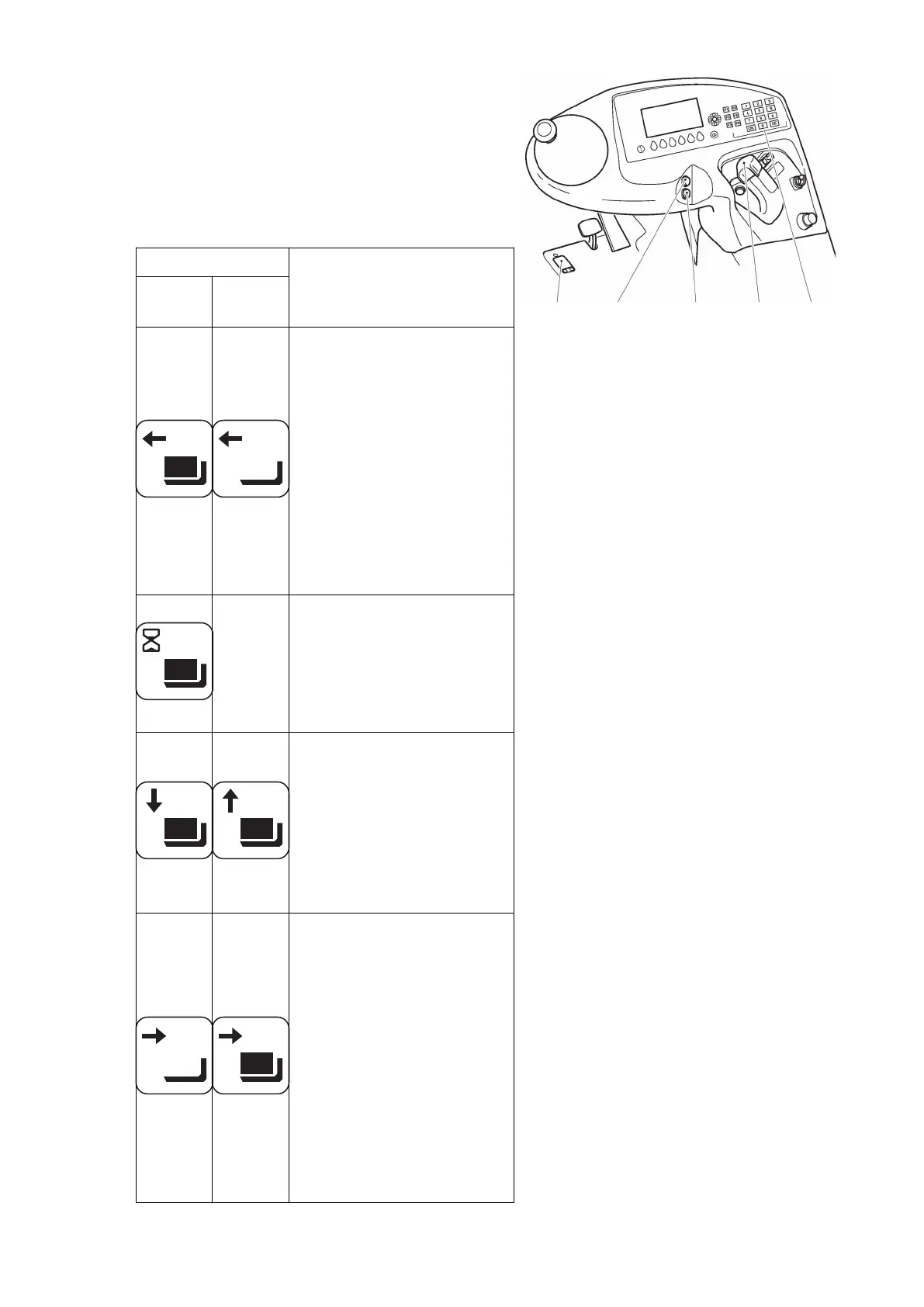

The following symbols appear in the
driver's display for “left” stacking
operations:
Symbol
Manual stacking
operation
Stacki
ng
Retriev
al
– Do not press the dead
man's switch (20).
– To traverse the
attachment to the left:
• Press and hold
down on
"attachment
traverse" key (120).
• Turn the "hydraulic
functions" control
lever (113)
anticlockwise.
– Rest time active.
– When stacking, after
the attachment has
been extended there is
an pause to reduce
mast vibration.
– Press the dead man's
switch (20).
– "Hydraulic functions"
control lever (113):
• turn clockwise
Lift (retrieve)
• turn anticlockwise:
Lower (stack)
– Do not press the dead
man's switch (20).
– Traverse attachment to
the right to the home
position:
• Press and hold
down on
"attachment
traverse" key (120).
• Turn the "hydraulic
functions" control
lever (113)
clockwise.
112
113
120
20
119
279
04.19 en-GB
