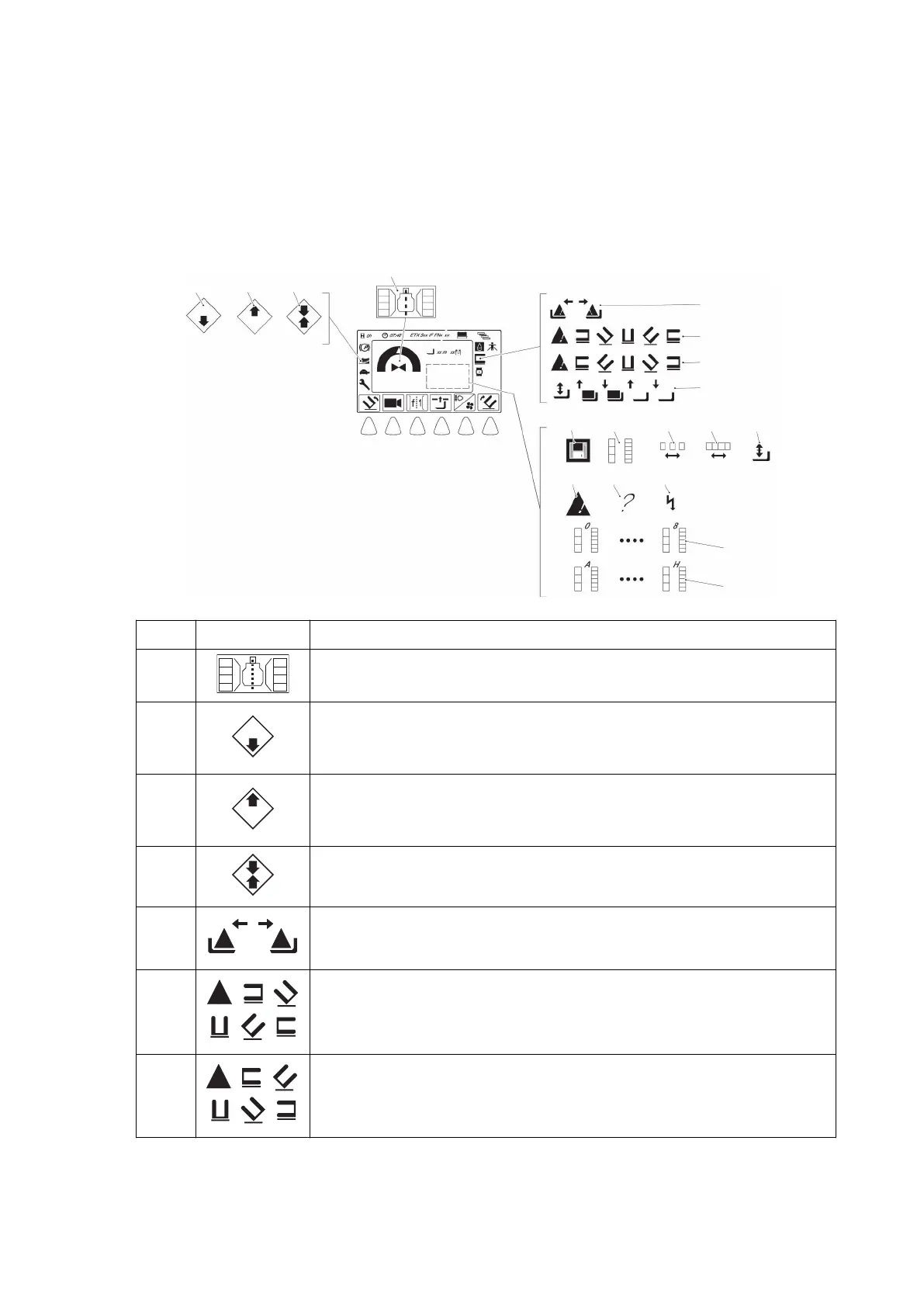

8.7.2 Driver's display
Z
The position of the symbols can be adapted to customer requirements. The setting is
made by the manufacturer's customer service department. In this case the positions
(rack row, location (marker), compartment (height) and zone) must be entered so as
to match the symbol display.
The following symbols are displayed along with the lift height:
Item Symbol Function / Description
208 Truck detected in narrow aisle / transponder.
209
The "travel in drive direction" symbol indicates that a
horizontal adjustment in the drive direction is required to reach
the destination.
210
The "travel in load direction" symbol indicates that a horizontal
adjustment is required in load direction to reach the
destination.
211 “Truck horizontally positioned” symbol
212
"Forks" warning symbol, see page 285.
213
"Turn fork carriage right" warning symbol.
214
"Turn fork carriage left" warning symbol.
283
04.19 en-GB
