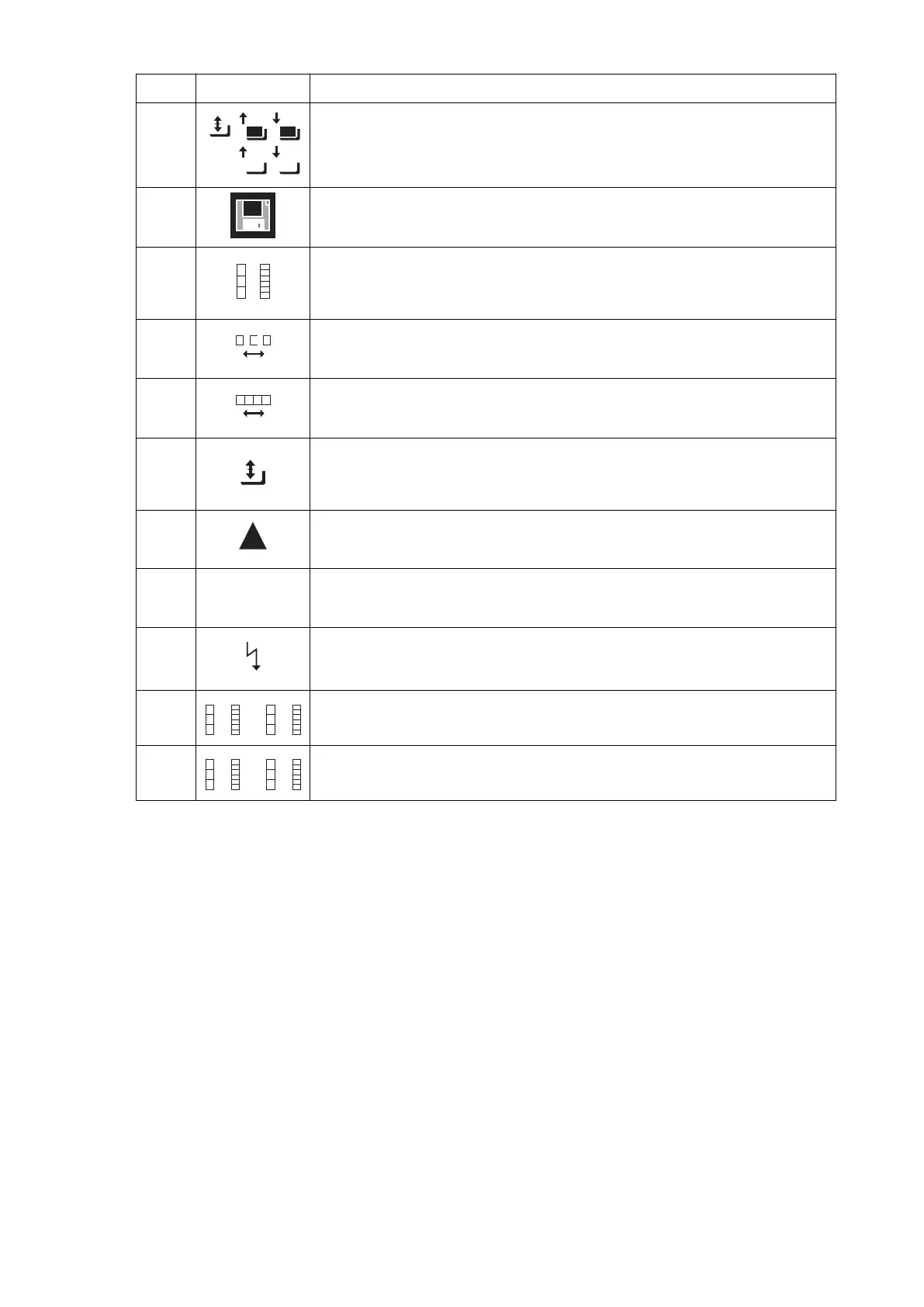

Item Symbol Function / Description
215
The “lower” or “lift” symbols indicate that vertical adjustments
are required to reach the storage location.
216
The "Order in memory" symbol indicates that in addition to the
current order there is another order in the truck's memory.
217
Zone selection / area selection:
Zone display = Different lift heights.
Single digit entry only.
218
Rack row display:
The entry can be one, two or three digit.
219
Location (marker) display = Horizontal position in narrow aisle:
The entry can be one, two or three digit.
220
Rack (height):
Rack display = Lift height vertical position in narrow aisle.
The entry can be one, two or three digit.
221
Warning symbol, see page 285.
222
"Question mark" symbol, see page 285.
223 Lightning symbol, see page 285.
225
Warehouse block display from 0 to 8.
226
Warehouse block display from A to H.
284
04.19 en-GB
