The Panduit LCD6-14A-L terminals, or equivalent are sized for 6 AWG (4.11 mm²) cables. The 6 AWG
(4.11 mm²) stranded wire should be rated 90 °C or per local electrical code. We recommend that you
install heat-shrink tubing insulaon around the crimped secon of the power cables and lugs.
To ground the SRX1600, connect a grounding cable to earth ground. Aach the grounding cable to the
chassis grounding point located on the rear of the device. Under all circumstances, use this grounding
connecon to ground the chassis.
To ground the device:
1. Wrap and fasten one end of the ESD grounding strap around your wrist and connect the other end to
the ESD point on the chassis.
2. Ensure that all grounding surfaces are clean and brought to a bright nish before making the
grounding connecons.
3. Connect the grounding cable to a proper earth ground, such as the rack in which you mount the
device.
4. Using a Phillips screwdriver, remove the two M5 screws from the grounding point on the rear of the
chassis.

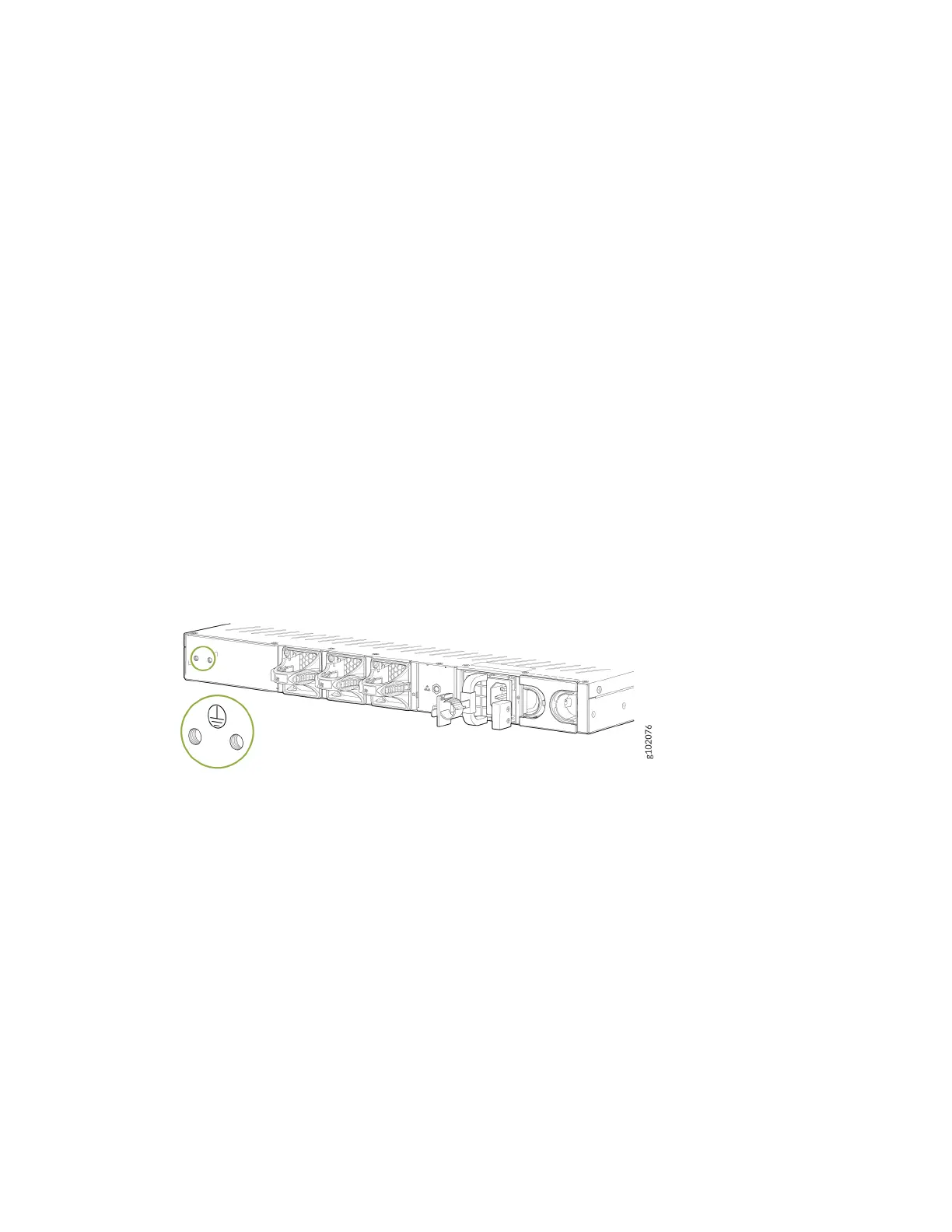

Figure 32: Grounding Point on the SRX1600
5. Place the grounding cable terminal aached to the grounding cable over the grounding point.
6. Secure the grounding cable terminal to the grounding point with the M5 screws removed earlier.
