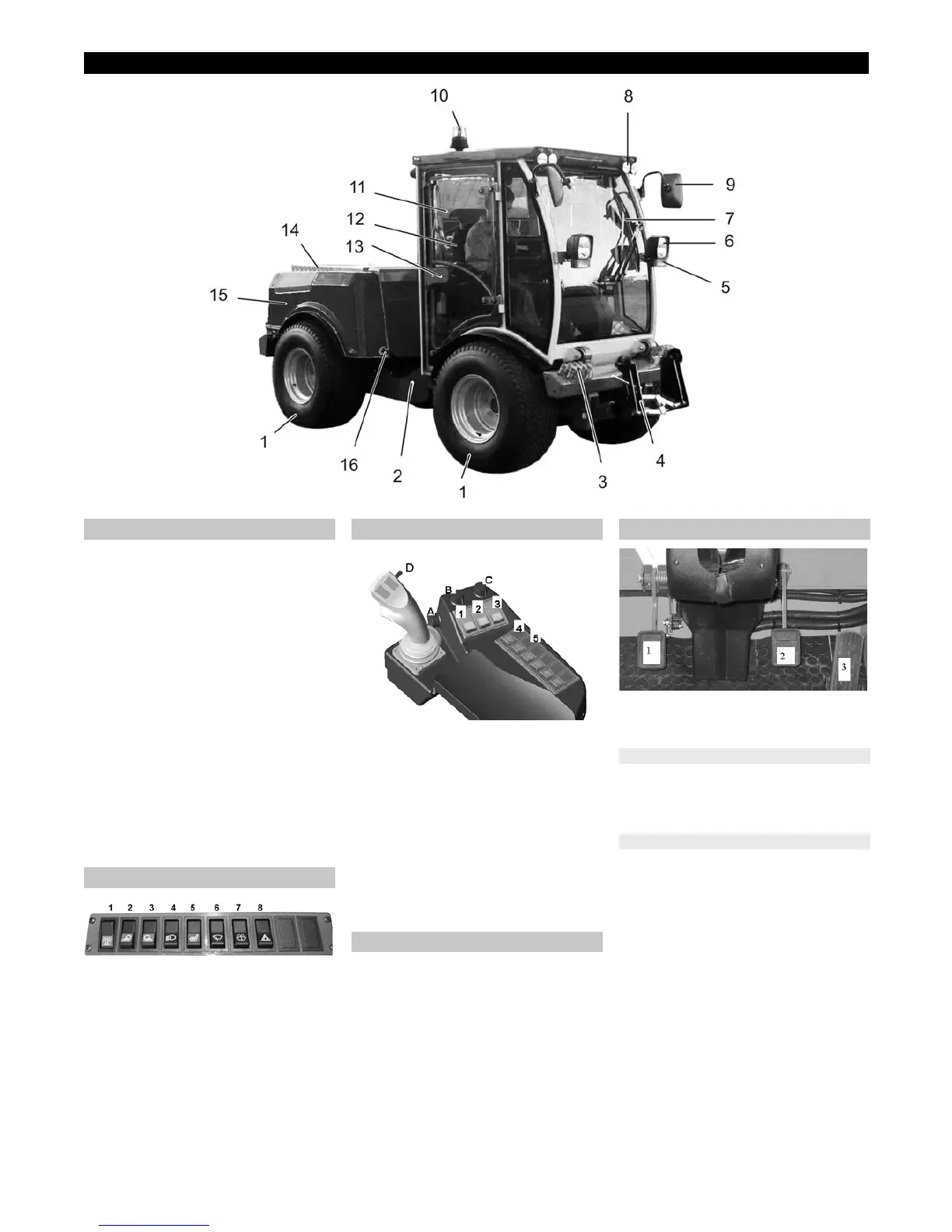

1 Wheels
2 Articulated steering in centre of vehicle
3 Front hydraulic connection
4 Front attachment frame *
5 Direction-indicator lamp
6 Lights
7 Wiper
8 Work light
9 Outside mirror
10 Beacon lamp
11 Driver's cabin *
12 Driver's seat *
13 Cabin door *
14 Engine cover
15 Side cover
16 Side cover lock
not shown
Rear hydraulic pickup *
Towing hitch
* see detailed descriptions
1 Switch beacon lamp
2 Front work light switch
3 Rear work light switch
4 Light switch
5 Seat heater (option)
6 Wiper
7 Windscreen washer system
8 Warning system
1 Front work hydraulics
2 Rear work hydraulics
3 Cruise control
4 Float position
5 Parking brake
A Potentiometer for motor speed regula-
tion (can be used for work ranges 1 or
2)
B Potentiometer for the front work hy-
draulics (feed volume)
C Potentiometer for the rear work hydrau-
lics (feed volume)
D Blinker switch
The emergency brake requires hydraulic
pressure to be released. Therefore, if the
motor is shut off, it is automatically locked.
Note: The indicator light on the operating
terminal/display lights up when the emer-
gency brake is in the locked position.
Lock the emergency brake:
Switch on the emergency brake switch
on the dashboard.
Release emergency brake:
Switch off the emergency brake switch
on the dashboard.
1 Inch pedal
2 Brake pedal
3 Drive pedal
The inching pedal regulates the speed in
WORK AREA 1 or 2.
Operate the inching pedal to reduce the
travel speed.
If the drive pedal is pressed, the motor
speed will increase. The pedal is spring-
loaded; if you remove your foot, the motor
speed will decrease.
몇 Important
During transport drives, use the drive pedal
carefully, because there is a risk of sudden
speed decrease!
Overview of the appliance
Exterior view
Ceiling panel
Switches on dashboard
Parking brake
Pedals
Inching pedal
Drive pedal (foot accelerator)
