- 13

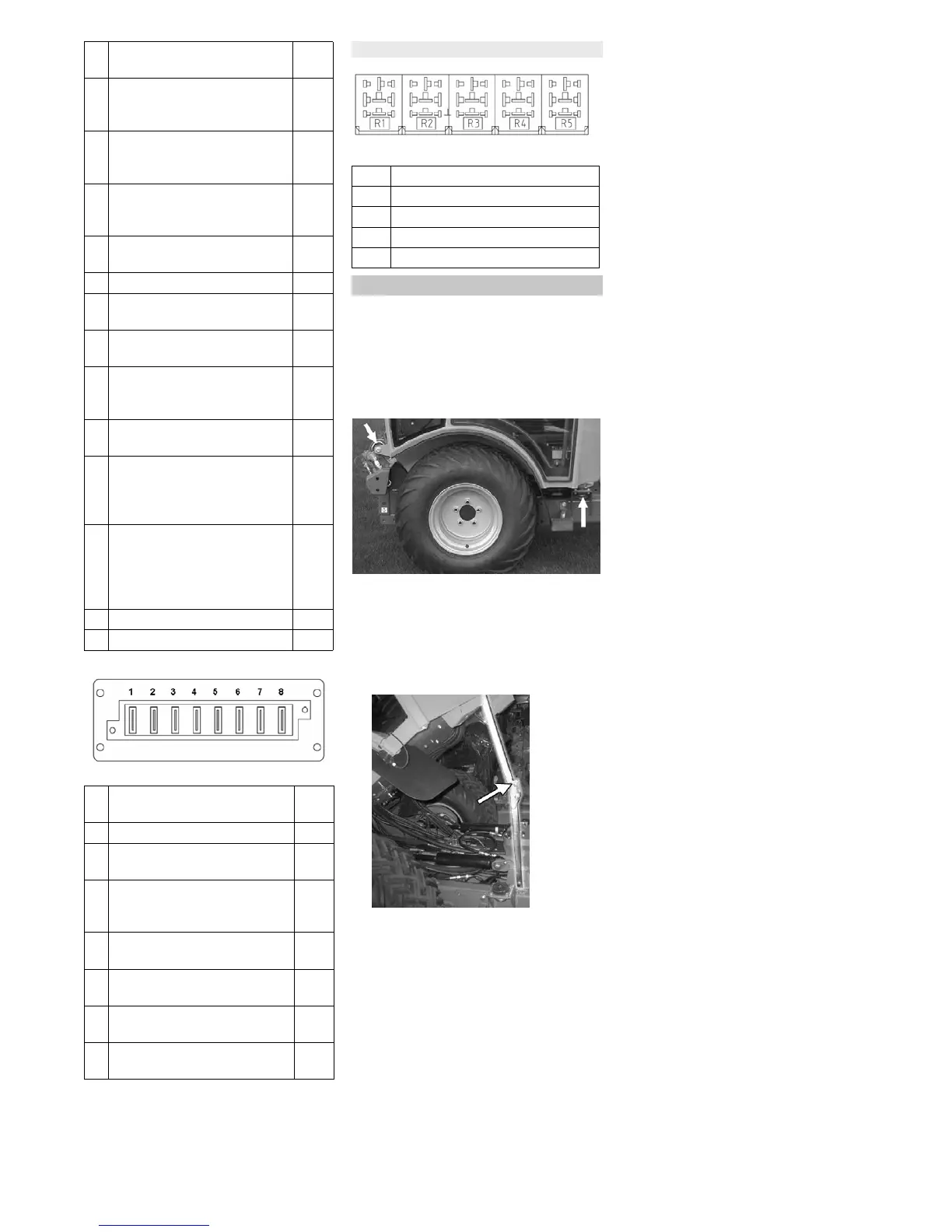

Fuses in the roof, to the right of the driver
Relay in the electrical box of the driver's cabin
The driver's cabin of the machine can be
tilted for service and repair tasks.
Park the machine on an even surface.
Remove ignition key.
Slightly release the front fasteners of
the cabin, leave the screws in.
Loosen the rear fasteners of the cabin.
Front and rear fastener
Lift the cabin and tilt it upwards. To
avoid damage, at least two adults are
needed for this task.
Secure the cabin using the support
mounted underneath the cabin. Fasten
the support using the matching screw.
Secure the support with a screw and a nut
몇 WARNING
Prior to working underneath the cabin, en-
sure that it is properly secured so that it
does not tilt down inadvertently.
Never tilt the cabin up by yourself or work
on a raised cabin!
1 Stopp Solenoid
Generator IG
5 A
2 Infeed OX012
Additional outlet 5 V
MC050
10 A
3 Air seat compressor
Steering column converter
Dryer motor
20 A
4 Parking brake
Additional outlet 12 V
Dashboard lighting
10 A
5 JS1000
DP620
5 A
6 Front work lights 20 A
7 Brake light switch
Extra infeed MC050
10 A
8 Infeed MC050
Infeed IX024
10 A
9 Pressure sensor filter
F/N/R button for driving direc-
tion selector switch
3 A
10 Seat contact switch
JS 120, micro switch
3 A
11 Sensor for number of revolu-
tions and return filter
Drive pedal
Inch pedal
5 A
12 Front work hydraulics
Rear work hydraulics
Float position
Cruise control
Extra 5 V
5 A
13 Not assigned
14 Not assigned
1 Left positioning light
License plate lighting
5 A
2 Right positioning light 5 A
3 Overall lamp
Rear worklight
15 A
4 Lights
Current supply
Switch illumination
10 A
5 Lights
Warning system
15 A
6 Seat heater
Radio
7.5 A
7 Wiper
Windscreen washer system
10 A
8 Warning system
Radio
5 A
Relay
R1 Direction-indicator lamp
R2 Lights
R3 Lights
R4 Power supply to the roof lighting
R5 Power supply fuses 50 A
Tilt driver cabin
31EN
