WARNING: Take care not to let transmission oil adhere
to parking brake disk (9). If oil adhered, completely
remove oil.
8. Put the cover on parking brake disk (9) to prevent
transmission oil from adhering.
9. Using a filter wrench, turn cartridge filter (6)
counterclockwise to remove it.
10. Clean the filter-seating surface. After coating the new
cartridge filter gasket surface with new oil, lightly turn
the cartridge filter clockwise by hand until the cartridge
filter sealing surface comes in contact with the filter-
seating surface.
11. At this time, tighten the cartridge filter an additional
3/4 turn with a filter wrench. Take care not to tighten
the filter cartridge excessively. Be careful not to damage
filter cartridge by overtightening.
12. Refill the specified amount of oil through transmission
oil filler port (7).
21 liters (5.5 gallons)
NOTE:
Oil amount in entire T/M assy: 30 liters (7.9 gallons)
13. Start the engine and keep it running for two minutes.
14. Check that the oil level is within the specified range in oil
level gauge (8). Refill as necessary.
NOTE: Never reuse cartridge type element (6). Install the
cartridge with care so that the O-ring is not damaged due to
twisting. Check for any oil leakage at the drain plug and the
filter mounting area.

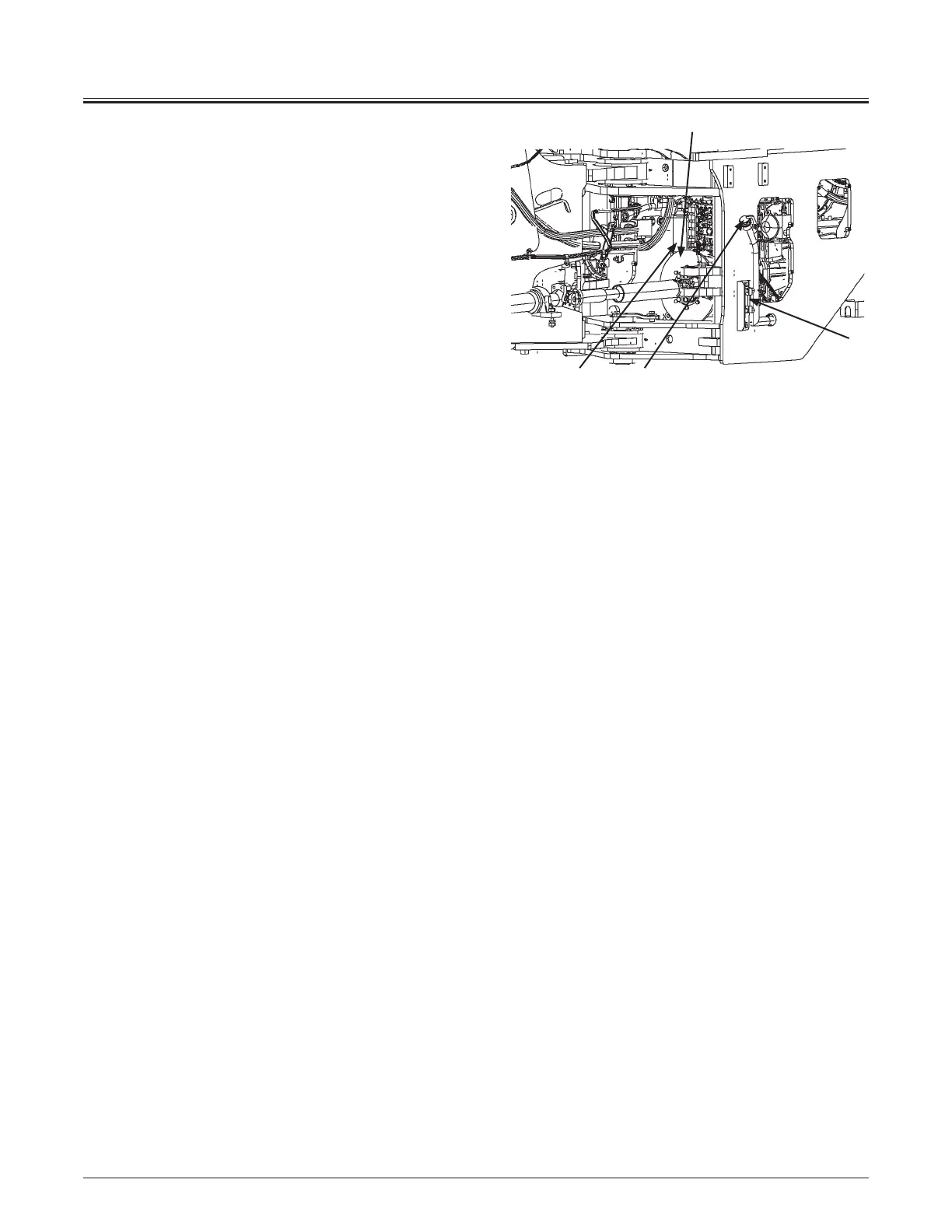

8
