Model 6485 Picoammeter Instruction Manual Triggering 7-13
External trigger example
In a simple test system you may want to close a switching channel and measure the current
from a DUT connected to that channel. Such a test system is shown in Figure 7-7, which
uses a Model 6485 to measure 10 DUTs switched by a Model 7158 low current card in a
Model 7001 or 7002 switch system.

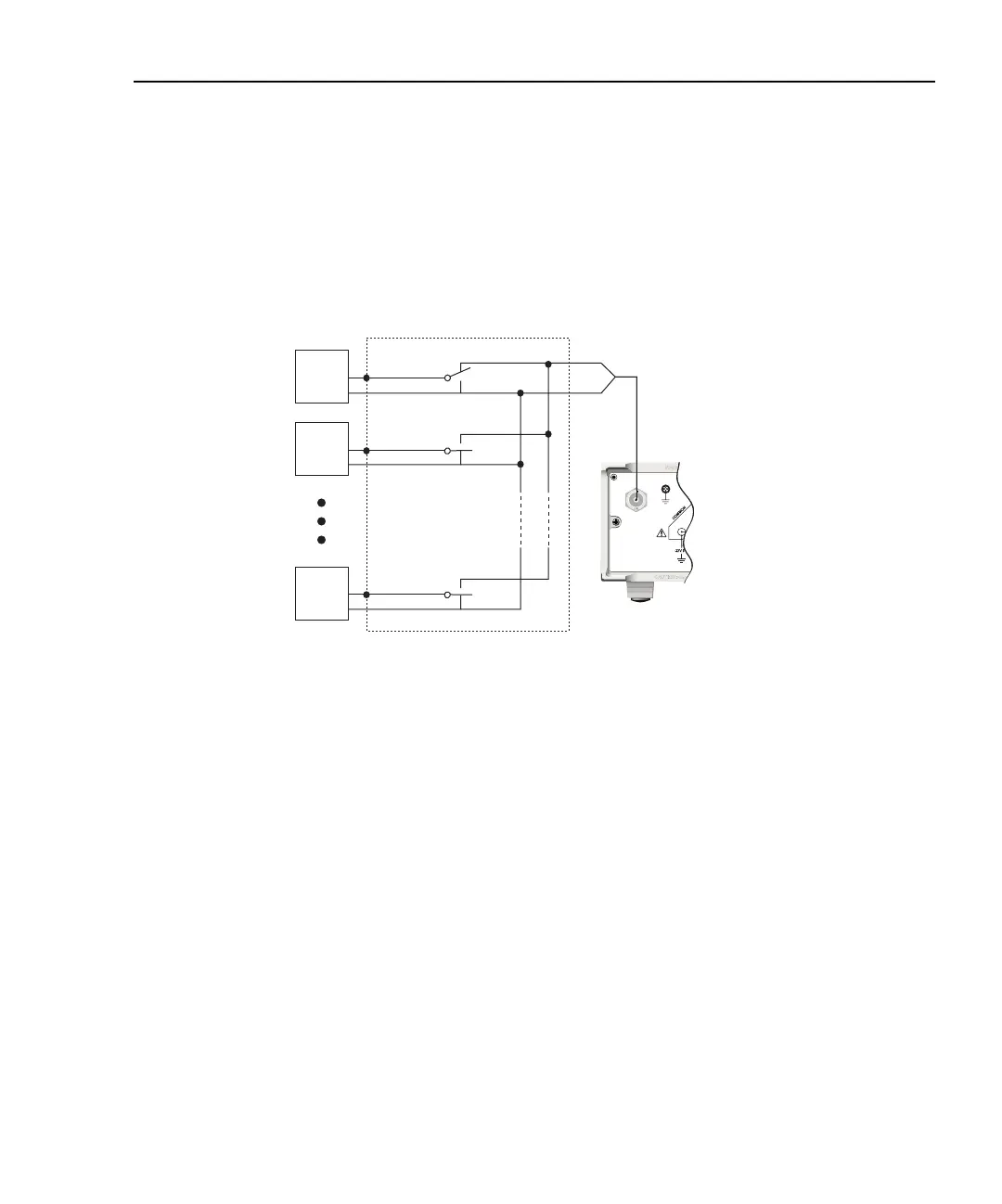

Figure 7-7
DUT test system
120
FUSE LINE
630mA
LINE RATING
50, 60Hz
30 VA
T
(SB)
100 VAC
120 VAC
315mAT
(SB)
220 VAC
240 VAC
!
INPUT
(CHANGE IEEE ADDRESS
WITH FRONT PANEL MENU)
IEEE-488
CAT I
TRIGGER LINK
RS-232
MADE IN
U.S .A .
RANGE
DEPENDENT
ANALOG OUT
DUT
#2
DUT
#1
DUT
#10
7158 Low Current Card
OUTPUT
Model 6485
Picoammeter
DUT
#3-#9
LO

Keithley 6485 Specifications

General

Model	Keithley 6485
Category	Picoammeter
Input Impedance	>10^14 Ohms
Voltage Burden	<200µV
Accuracy	0.4% of reading
Voltage Source Range	Not Applicable
Voltage Source Resolution	Not Applicable
Voltage Source Accuracy	Not Applicable
Interface	IEEE-488
Power Requirements	100V to 240V AC, 50/60Hz
Dimensions	89 mm high x 214 mm wide x 369 mm deep (3.5 in x 8.4 in x 14.5 in)
