7-2 Triggering Model 6485 Picoammeter Instruction Manual
Trigger models
The owcharts in Figure 7-1 and Figure 7-2 summarize triggering for Model 6485. They
are called trigger models because they are modeled after the SCPI commands to control
triggering (operation)

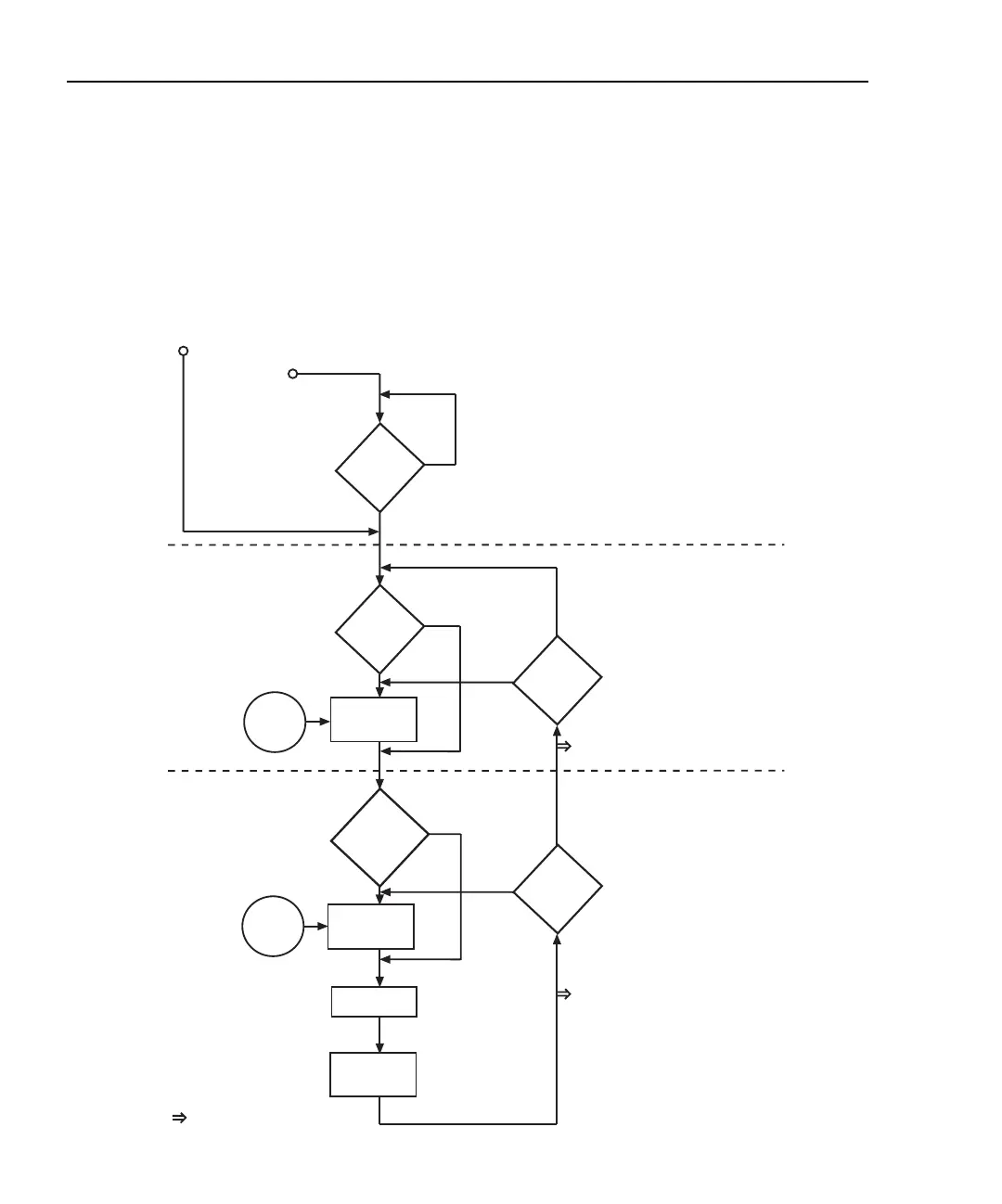

Figure 7-1
Trigger model — front panel operation
Arm-In
Source
Immediate
GPIB
Timer
Manual
TLink
Arm Event
Detector
Trigger Event
Detector
Trigger Delay
MEASURE
Action
No
Yes
Idle
Another
Arm
?
Another
Trigger
?
Yes
No
Arm
Layer
Trigger
Layer
Trigger-In
Source
;
;
;
;
;
;
INF
1
Yes
Halt
?
No
Once
Bypass
Arm Event
Detector
?
Never
Bypass
Trigger Event
Detector
?
Once
;
Never
Output Trigger
(VMC)
On/Off
Trigger
Count
Output Trigger
(TL Done)
On/Off
Arm
Count
Immediate
TLINk
Press HALT
Turn 6485 ON
;
0.0 sec
;
Factory Default
Output Trigger
;
