Model 6485 Picoammeter Instruction Manual Measurement Concepts 2-5

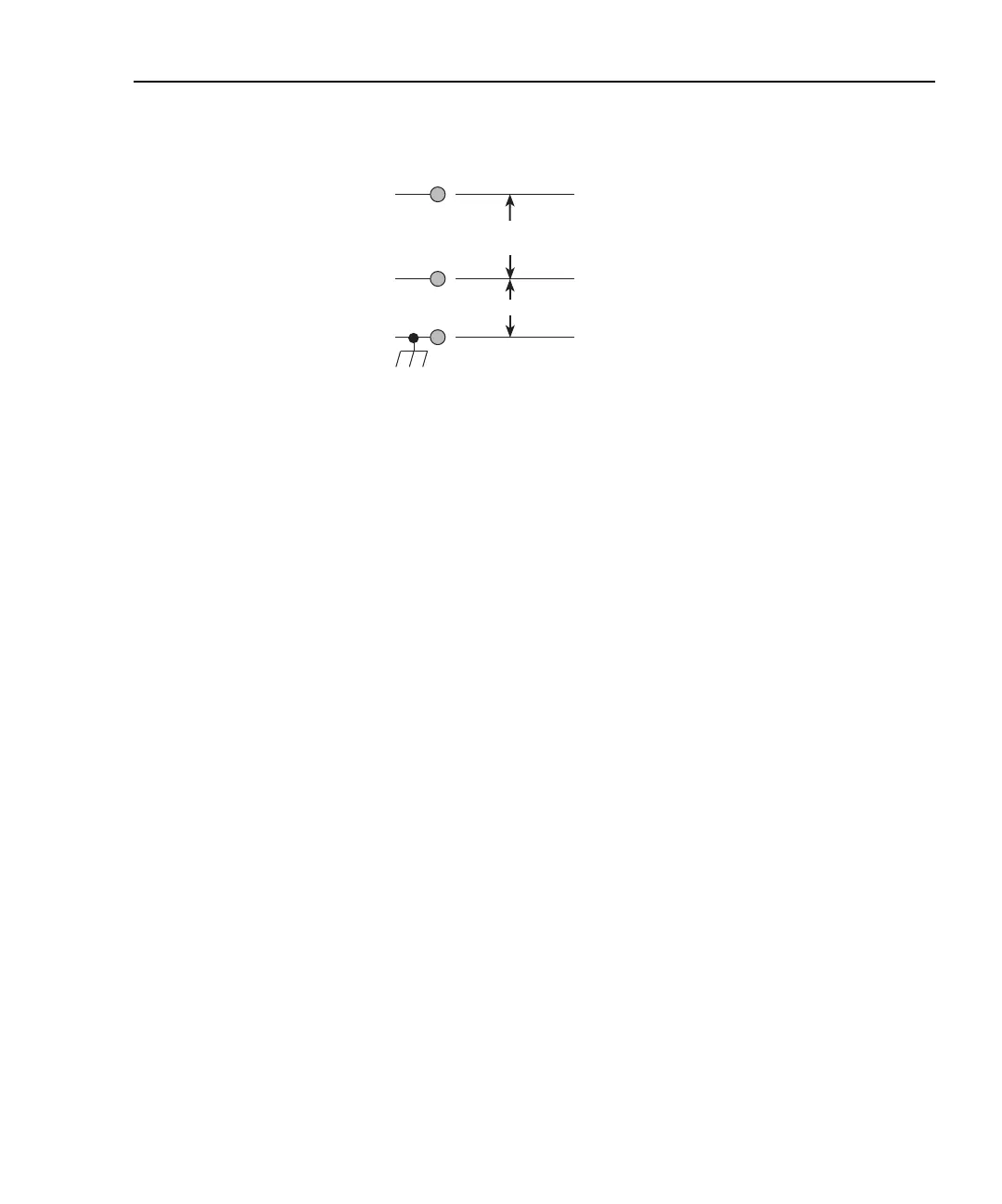

Figure 2-2
Maximum input levels
Low noise input cables
When making precision measurements, you should always use low noise cables. The fol-
lowing low noise cables are recommended for use with Model 6485:
Model 4801 Input Cable — This 4 ft (1.2m) low-noise triax cable is terminated with male
BNC connectors on each end. (One Model 4801 is included standard with every order.)
Model 4802-10 — This 10 ft (3m) low-noise BNC cable is terminated at one end with a
male BNC connector (the other end is unterminated).
Model 4803 Low Noise Cable Kit — This cable kit includes:
• 15m (50 ft) of low noise coax cable
• 10 male BNC connectors
• 5 female BNC chassis-mount connectors
NOTE As a general rule, always use the shortest possible cable for measurements.
Input HI
Input LO
42V Peak
Chassis Ground
* Maximum Continuous Input Signals
220V Peak, DC to 60Hz sine wave
Max Continuous
Input Signal *

Keithley 6485 Specifications

General

Model	Keithley 6485
Category	Picoammeter
Input Impedance	>10^14 Ohms
Voltage Burden	<200µV
Accuracy	0.4% of reading
Voltage Source Range	Not Applicable
Voltage Source Resolution	Not Applicable
Voltage Source Accuracy	Not Applicable
Interface	IEEE-488
Power Requirements	100V to 240V AC, 50/60Hz
Dimensions	89 mm high x 214 mm wide x 369 mm deep (3.5 in x 8.4 in x 14.5 in)
