Model 6485 Picoammeter Instruction Manual Applications Guide I-11
As shown in Figure I-8, this will cause a current (i) to ow through the low to ground
capacitance of the picoammeter (A). Picoammeter HI is connected to the highest resis-
tance side of the circuit being measured, the R side of this current source. This circuit is
connected properly, so this current does not ow through the picoammeter and, therefore,
does not cause any measurement errors.

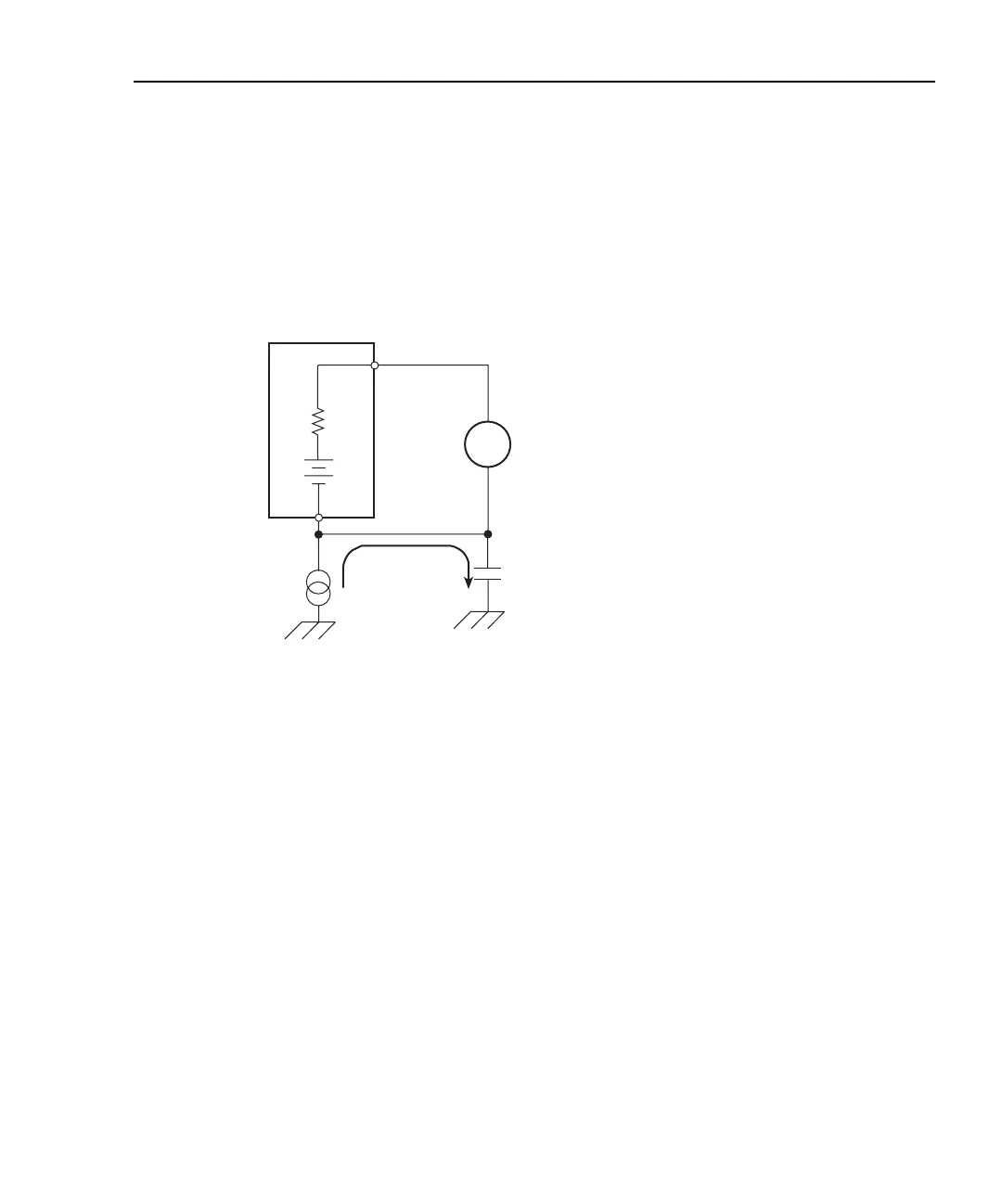

Figure I-8
Proper connection
However, when the HI of the picoammeter is connected to the low impedance power sup-
ply, this AC current (i) ows through the picoammeter (A) as illustrated in Figure I-9. This
current may affect the measurement accuracy, especially at low signal levels.
Current Source
6485
Picoammeter
+
-
i
HI
LO
R
A
