A51 LCD Replacement
6. Replacement Procedure

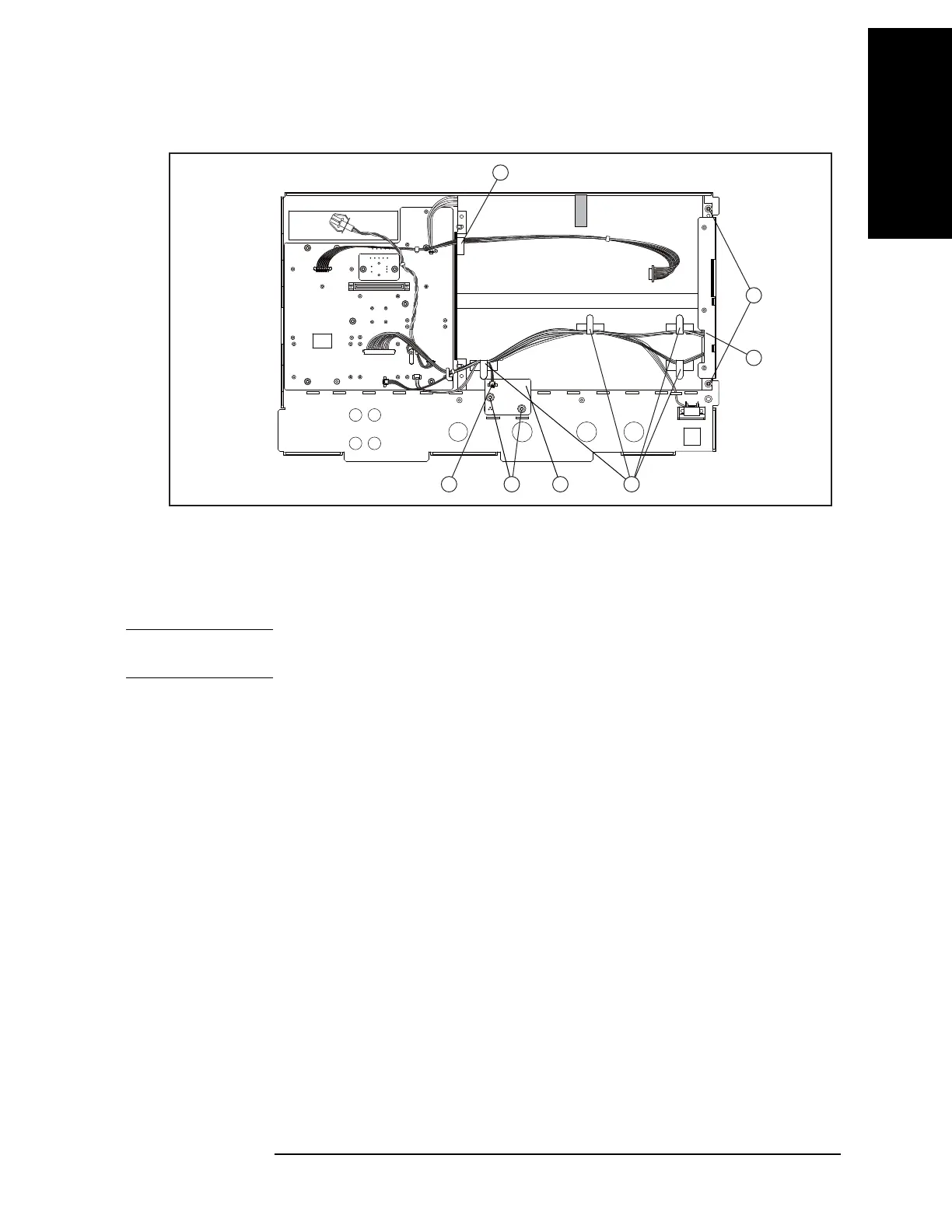

Figure 6-26 A51 LCD Removal
Replacement Procedure
Step 1. Replace the LCD by inverse procedure of removal.
NOTE Fasten the TORX T15 screws (item 5) using a torque screwdriver (set to 1.02 N-m / 9.0
lb-in).
Step 2. You have to calibrate the touch screen. Follow the procedure described on “Calibration of
the Touch Screen” on page 233.
e5052bse1094
1
2 3 4 1
6
5
