218 Appendix B

System Recovery

Step 6. Click Next button.

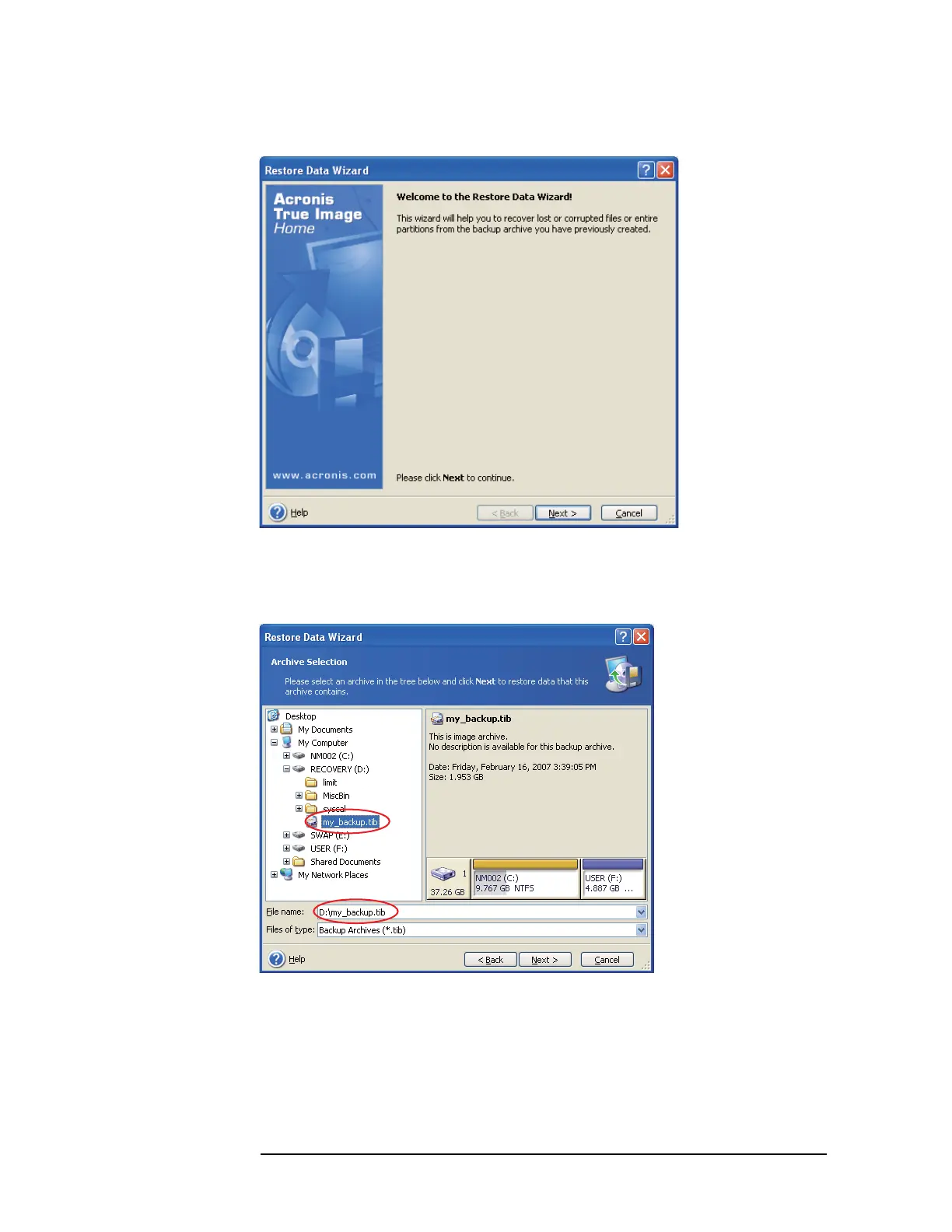

Step 7. Select the saved backup image file, then click

Next button.
