232 Keysight Technologies N9040B UXA Signal Analyzer Service Guide
Power Supply/Midplane Troubleshooting
A7 Midplane Board Assembly Description

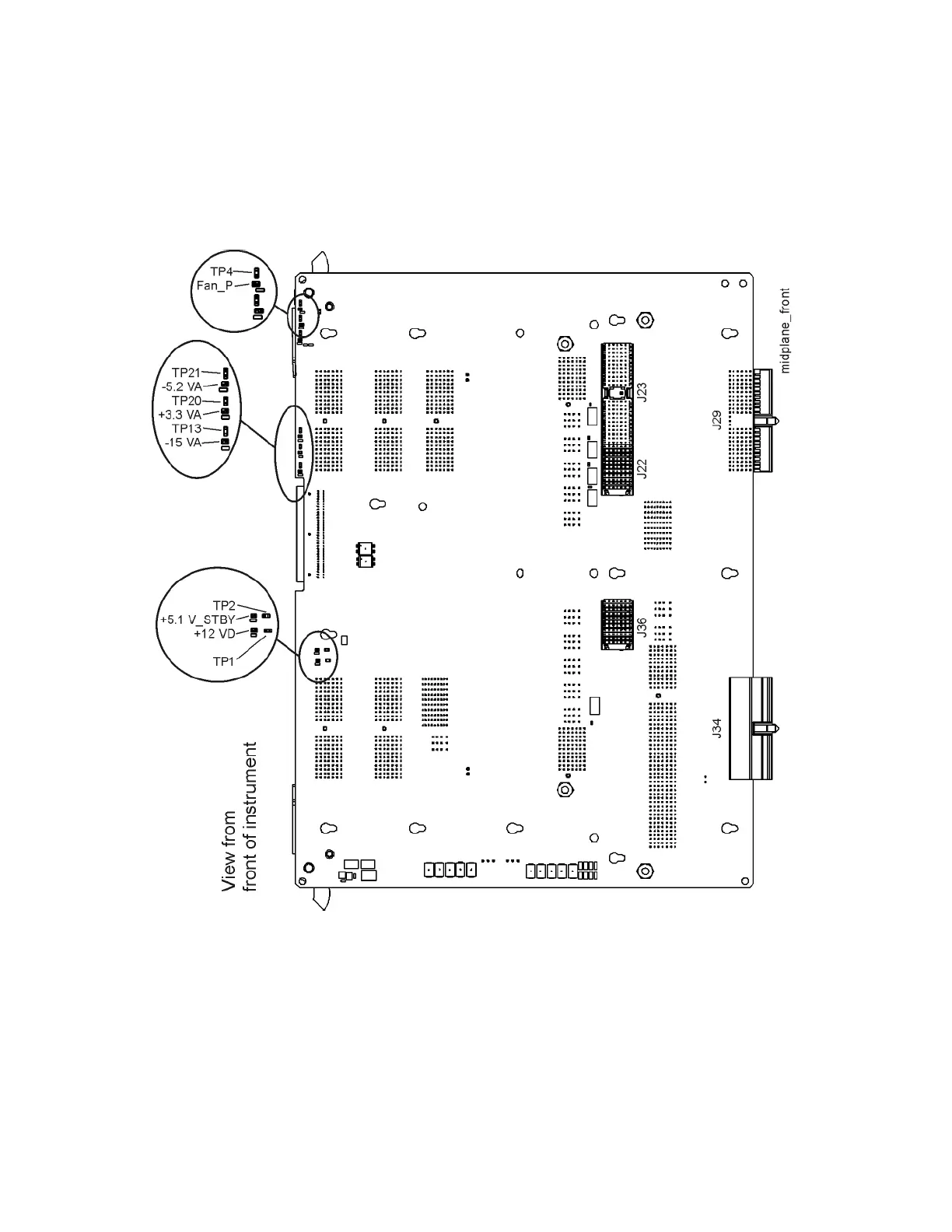

Figure 9-3 A7 Midplane Board Assembly Connections, LED’s, and Test Points -
Front View
