Keysight Technologies N9040B UXA Signal Analyzer Service Guide 437
Assembly Replacement Procedures
A28 Wideband Extension Board (Option RTS)
Replacement

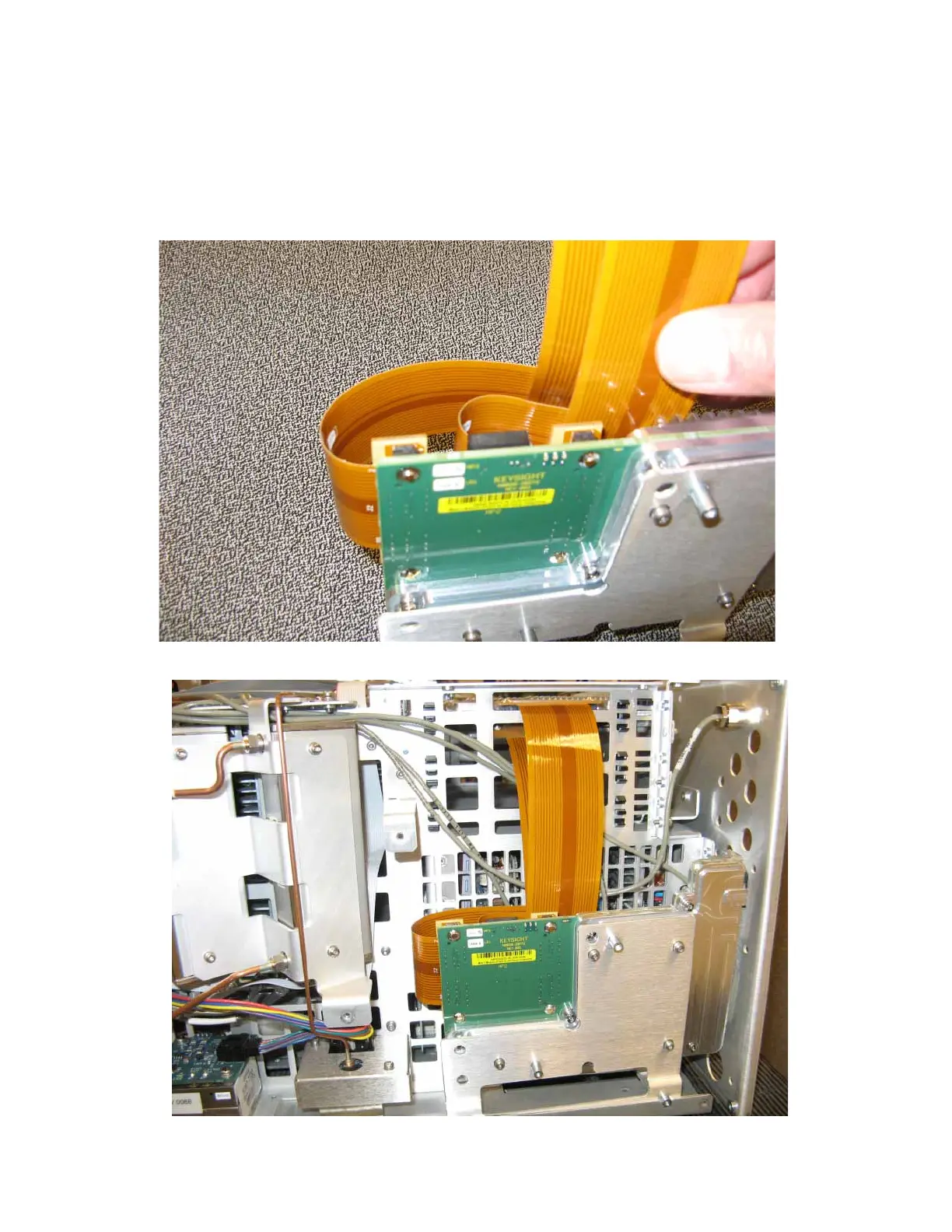

1. Refer to Figure 15-85 and Figure 15-86. The flex circuit cables will need to
be routed as shown.
Figure 15-85 Flex Circuit Routing - 1
Figure 15-86 Flex Circuit Routing - 2
