388 Keysight Technologies N9040B UXA Signal Analyzer Service Guide
Assembly Replacement Procedures
RF Area - Options 544, 550
RF Area - Options 544, 550

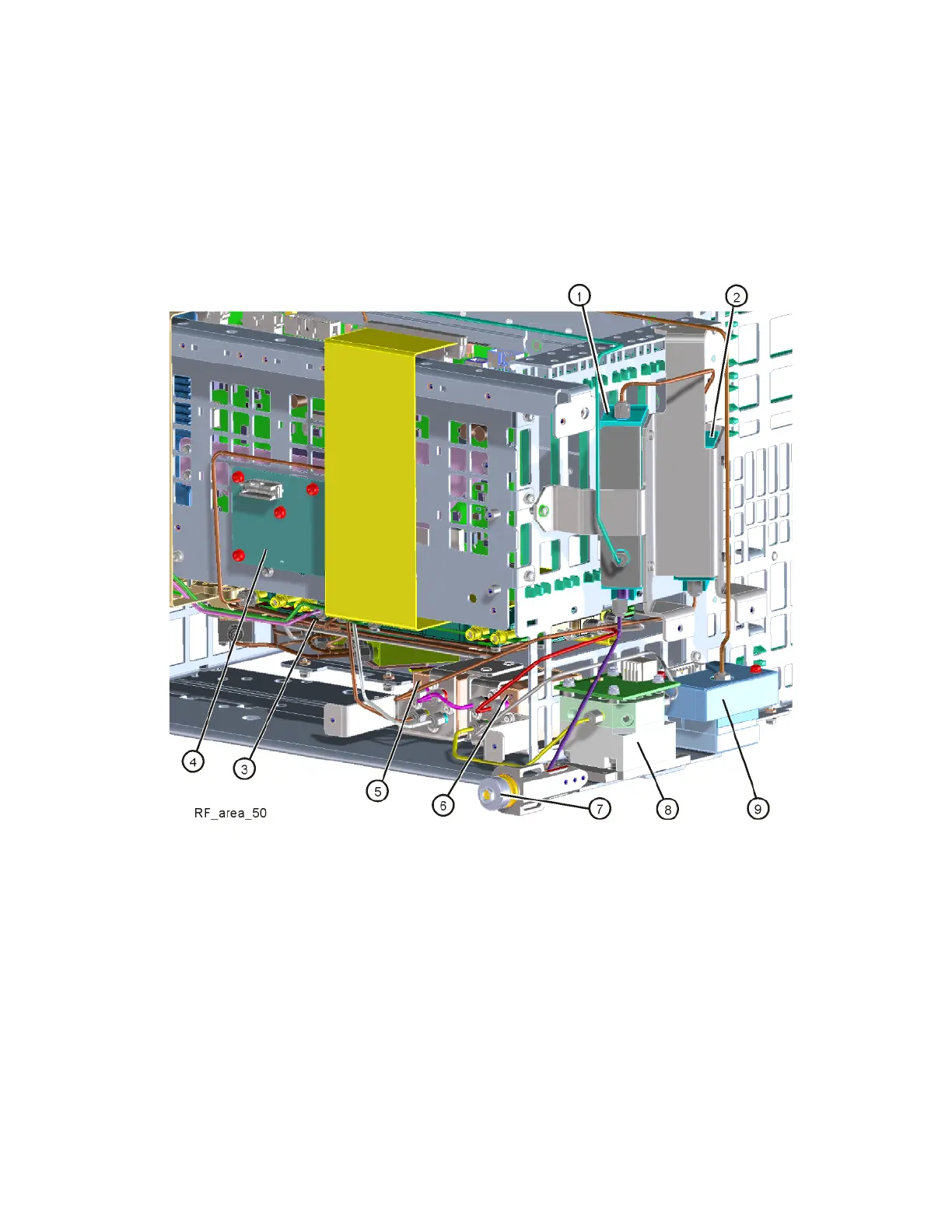

Refer to Figure 15-38. The RF area consists of A9 RF attenuator A (1), A10 RF
attenuator B (2), A13 front end assembly (3), A11 low band switch assembly
(4), transfer switch SW3 (5), transfer switch SW6 (6), RF input connector
(7), A12 YTF Preselector (8), and A20 YTO (9).
Figure 15-38 RF Area Components - Options 544, 550
To gain access to any of the RF section parts for removal,
follow these steps:
1. Remove the instrument outer case. Refer to the “Instrument Outer Case”
removal procedure.
2. Remove the front panel. Refer to the Front Frame Assembly removal
procedure.
