444 Keysight Technologies N9040B UXA Signal Analyzer Service Guide
Assembly Replacement Procedures
A4 CPU/A5 Solid State Drive
Replacement of A5 SSD or A4A1CPU Memory Card
Disk Drive
Removal
1. Refer to Figure 15-92. Loosen the thumb screw (2) and pull the SSD (1)
out of the CPU assembly.

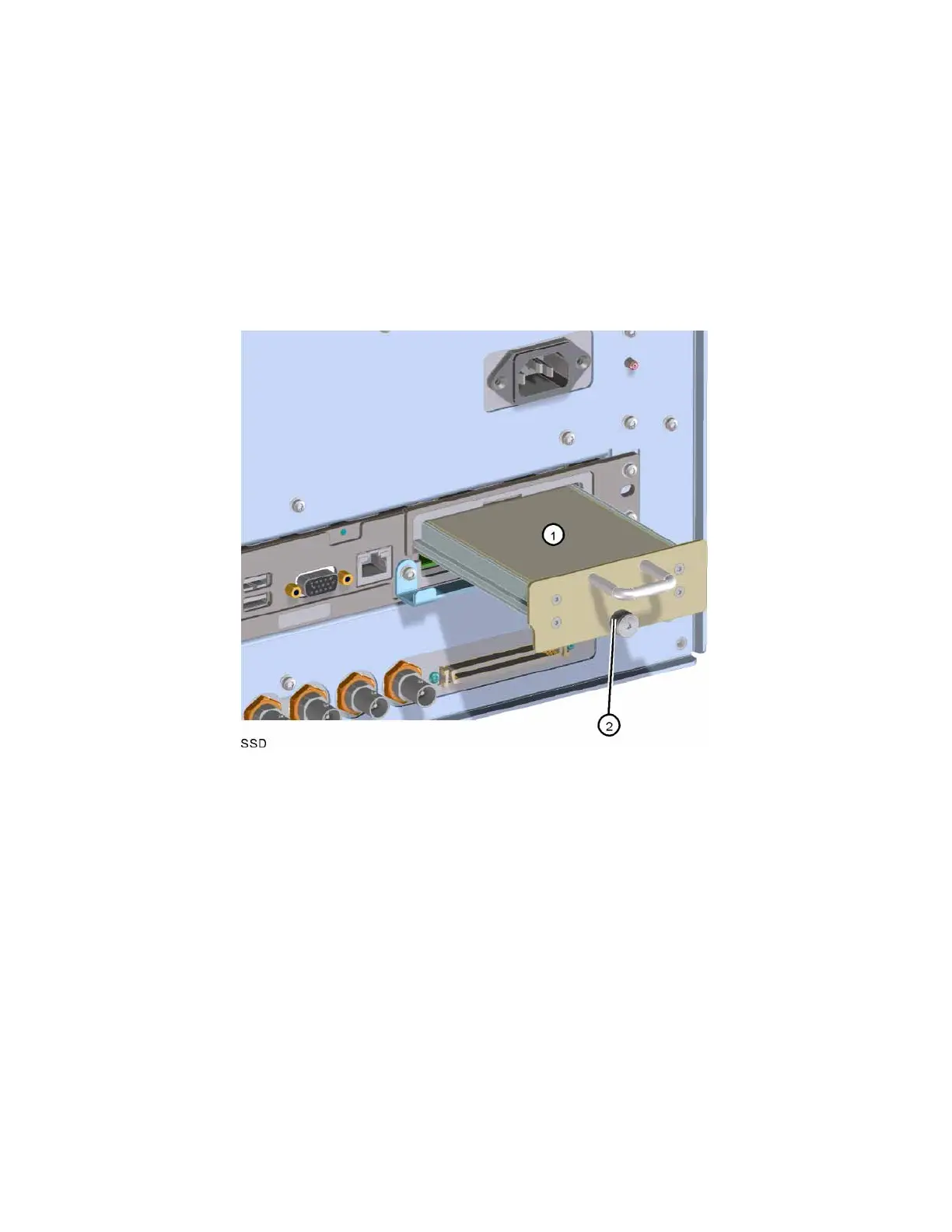

Figure 15-92 SSD Removal
