Keysight Technologies N9040B UXA Signal Analyzer Service Guide 447
Assembly Replacement Procedures
A2 AIF/A3 DIF
A2 AIF/A3 DIF
Removal
1. Remove the instrument outer case. Refer to the “Instrument Outer Case”
removal procedure.
2. Remove the rear panel. Refer to the “Rear Panel” removal procedure.
3. Refer to Figure 15-95. Remove cables W39, W40, W42, and W47 from the
bottom of the DIF assembly.

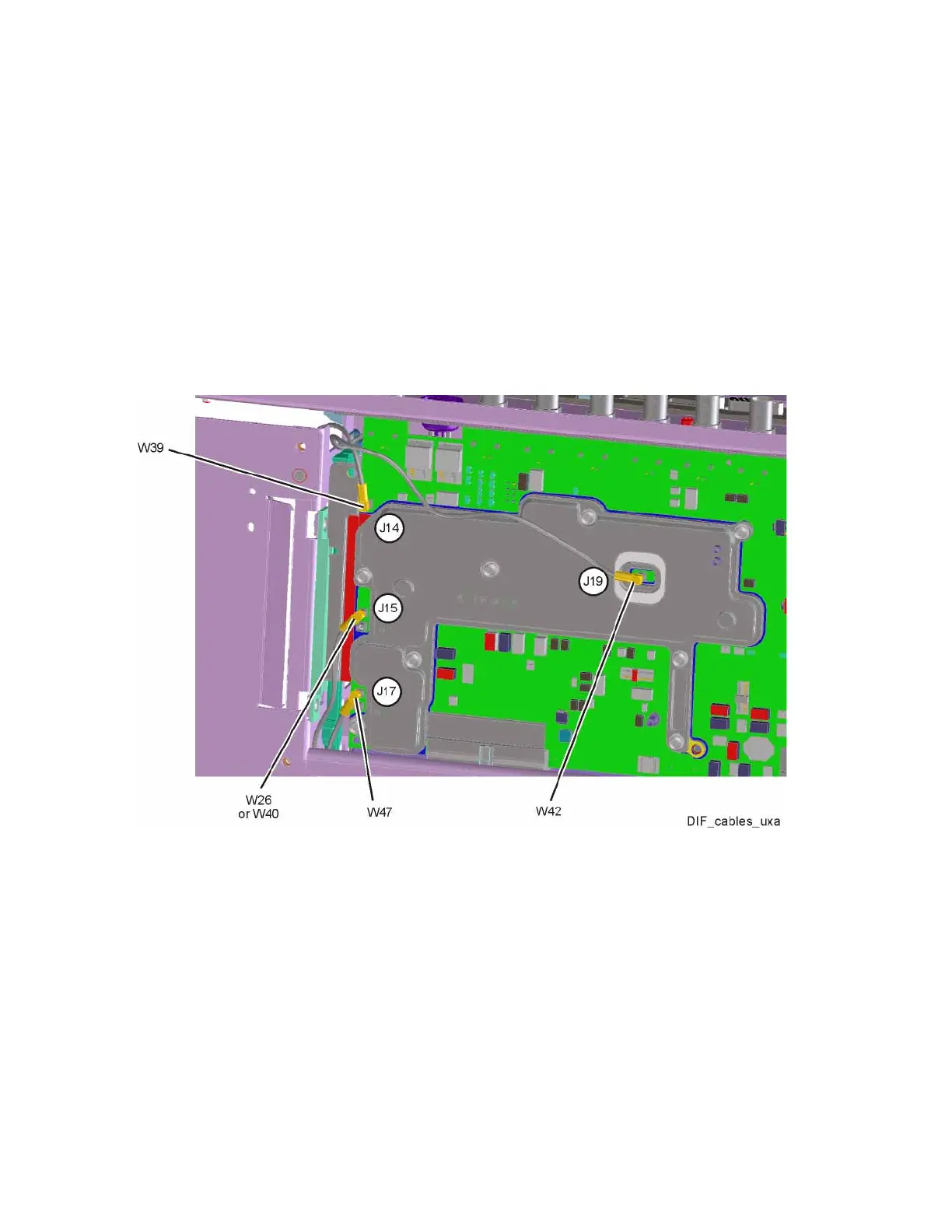

Figure 15-95 DIF Cables
