Keysight Technologies N9040B UXA Signal Analyzer Service Guide 399
Assembly Replacement Procedures
RF Area - Options 544, 550
Transfer Switches
Removal
1. Refer to Figure 15-45. Remove the front brace (1) by removing the eleven
screws (2) (0515-0372).

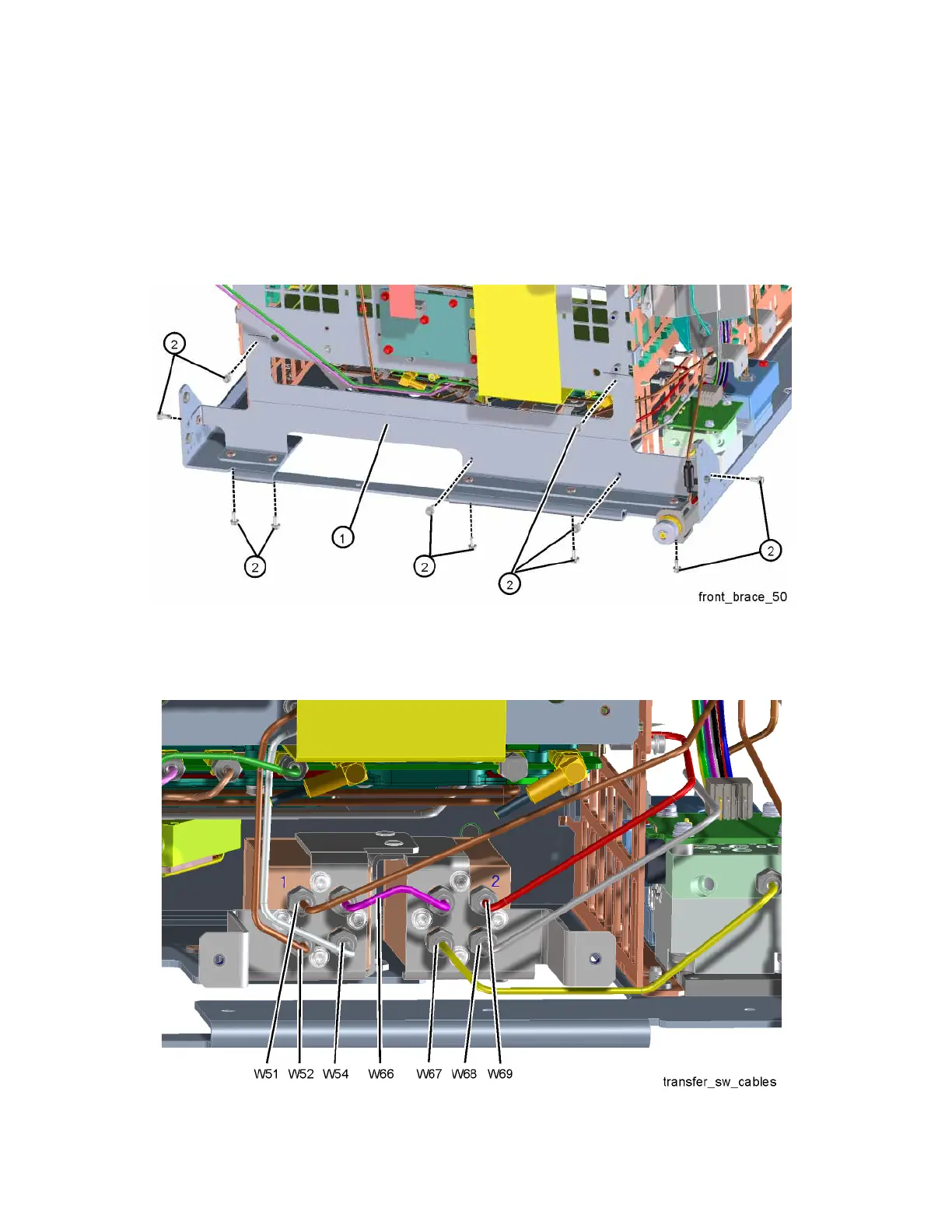

Figure 15-45 Front Brace Removal
2. Refer to Figure 15-46. Remove cables W51, W52, W54, W66, W67, W68,
and W69.
Figure 15-46 Transfer Switch Cables Removal - Options 544, 550
