Keysight Technologies N9040B UXA Signal Analyzer Service Guide 439
Assembly Replacement Procedures
A6 Power Supply
A6 Power Supply
Removal
1. Remove the instrument outer case. Refer to the “Instrument Outer Case”
removal procedure.
2. Remove the rear panel. Refer to the “Rear Panel” removal procedure.
3. Remove the top brace. Perform step 3 in the “Top Brace and Card Cage
Brace” removal procedure.
Serial Number Prefix < 5605 Options 508, 513, 526
1. Refer to Figure 15-88. Remove the five screws (2) (0515-0372) that
attach the A6 power supply (1) to the chassis. The power supply can now
be removed by sliding it out of the rear of the chassis.

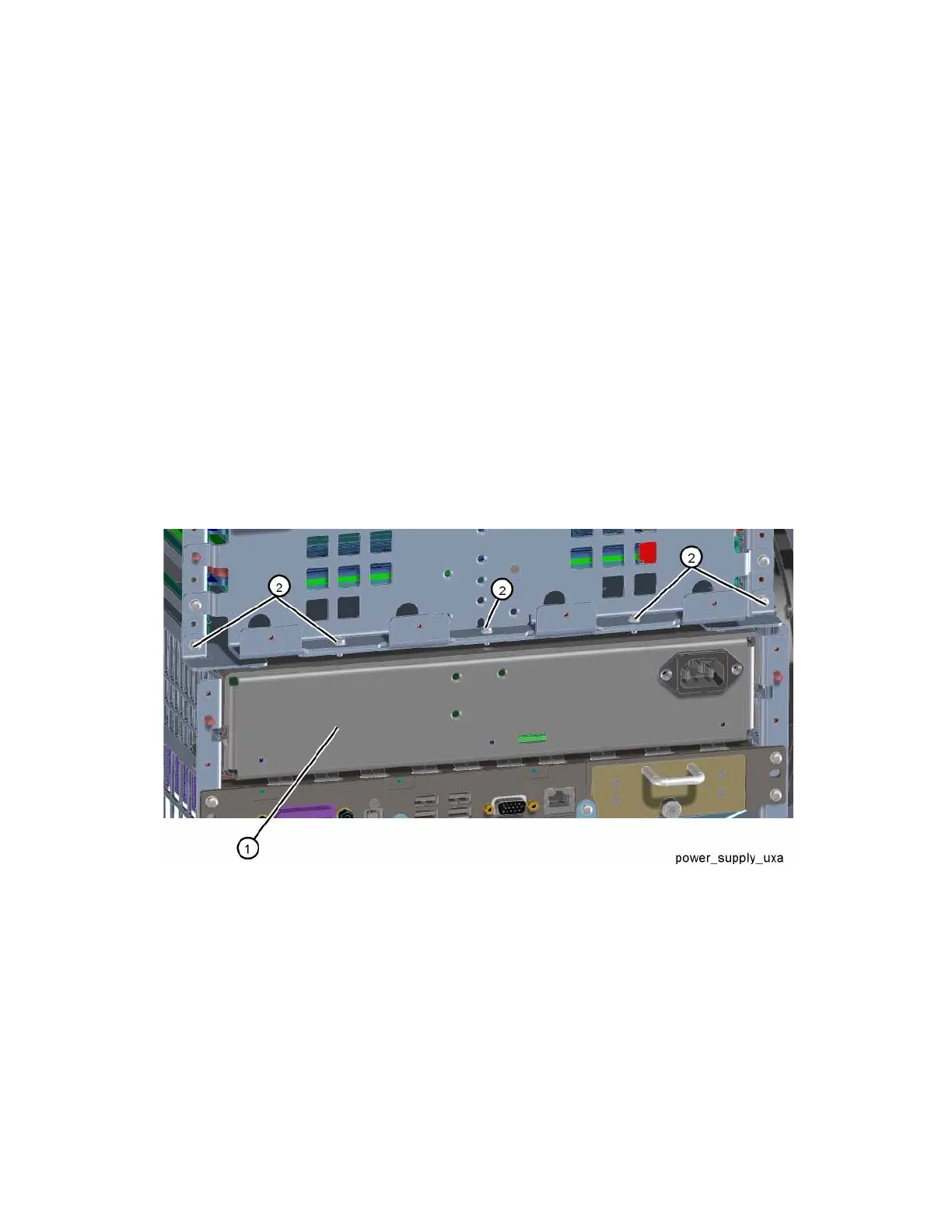

Figure 15-88 Power Supply Removal
Serial Number Prefix < 5605 Options 508, 513, 526
To Next Page
