440 Keysight Technologies N9040B UXA Signal Analyzer Service Guide
Assembly Replacement Procedures
A6 Power Supply
2. If replacing the power supply, the supply bracket will need to be removed
from the old power supply and installed on the new one. Refer to Figure
15-89. Remove the nine screws (3) (0515-1946) that attach the power
supply bracket (2) to the A6 power supply (1). When reinstalling the
bracket torque the screws to 9 inch-pounds.

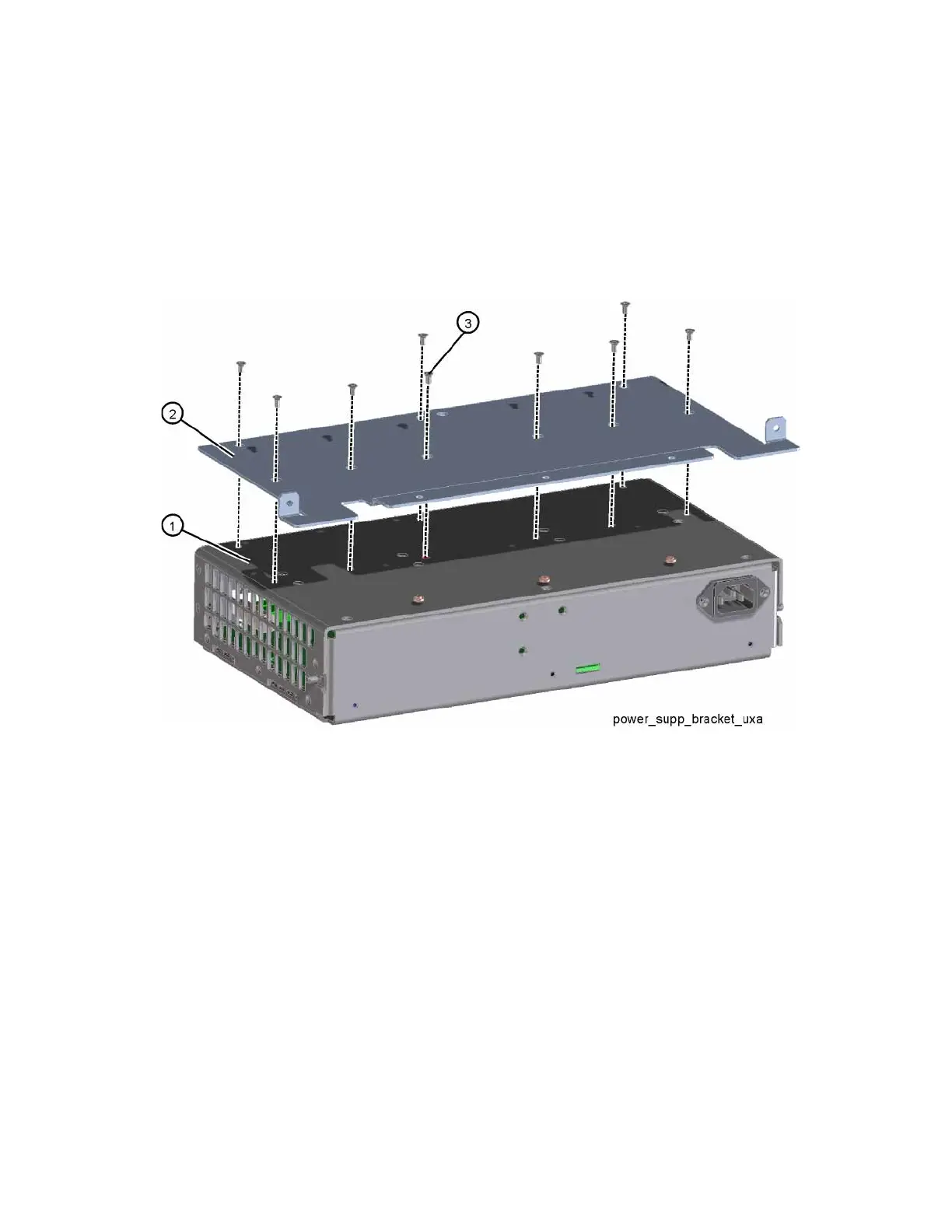

Figure 15-89 Power Supply Bracket Separation
Serial Number Prefix < 5605 Options 508, 513, 526
