Keysight N9040B Option 508 User Manual

Keysight Technologies N9040B UXA Signal Analyzer Service Guide 371
Assembly Replacement Procedures
RF Area - Options 508, 513, 526
Low Noise Path and Microwave Preselector Bypass Switches
Removal
1. Refer to Figure 15-15. Remove the front brace (1) by removing the eleven
screws (2) (0515-0372).

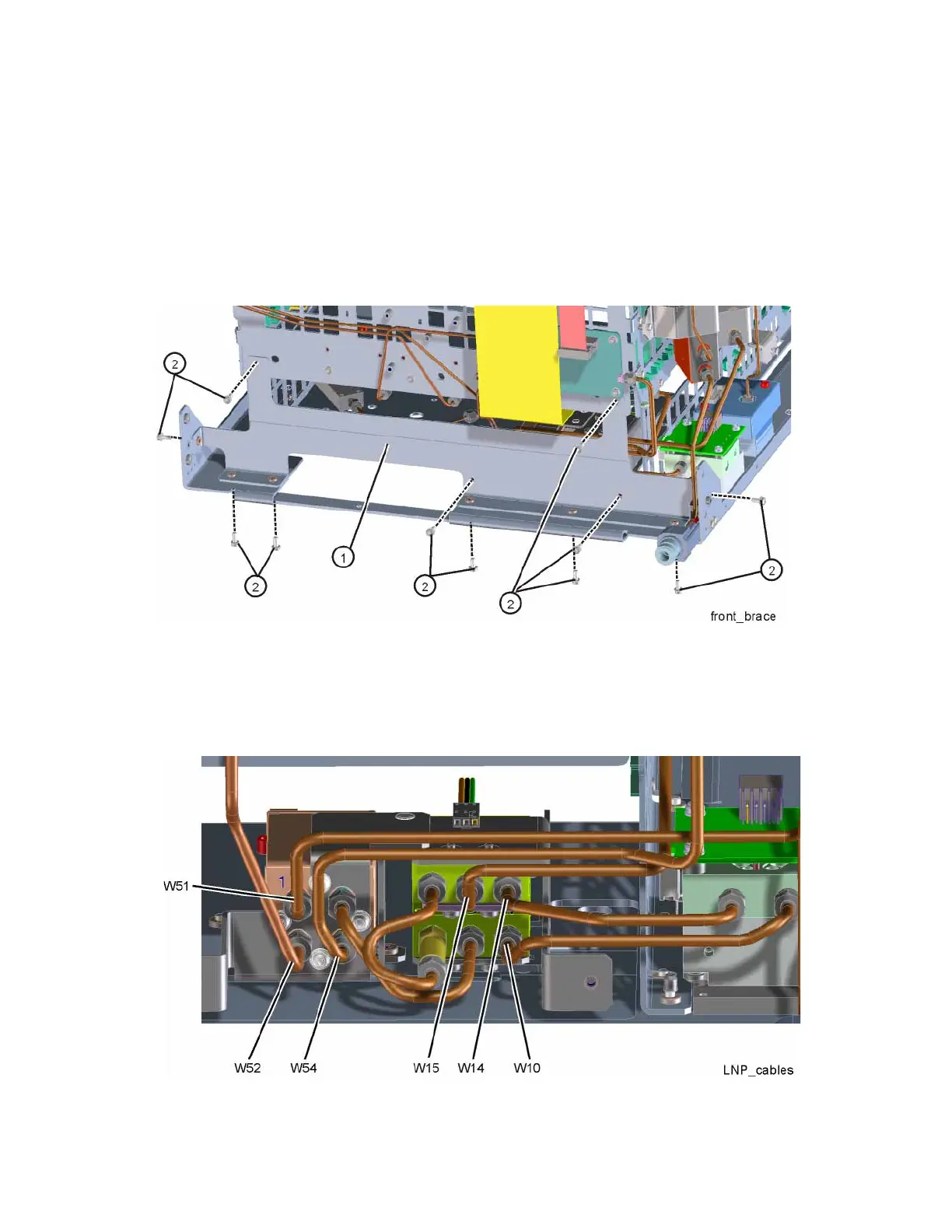

Figure 15-15 Front Brace Removal
2. Refer to Figure 15-16. Remove cables W10, W14, W15, W51, W52, and
W54.
Figure 15-16 W10, W14, W15, W51, W52, and W54 Cables Removal - Options 508, 513,
526
