446 Keysight Technologies N9040B UXA Signal Analyzer Service Guide
Assembly Replacement Procedures
A4 CPU/A5 Solid State Drive
A4A1 CPU Memory Card

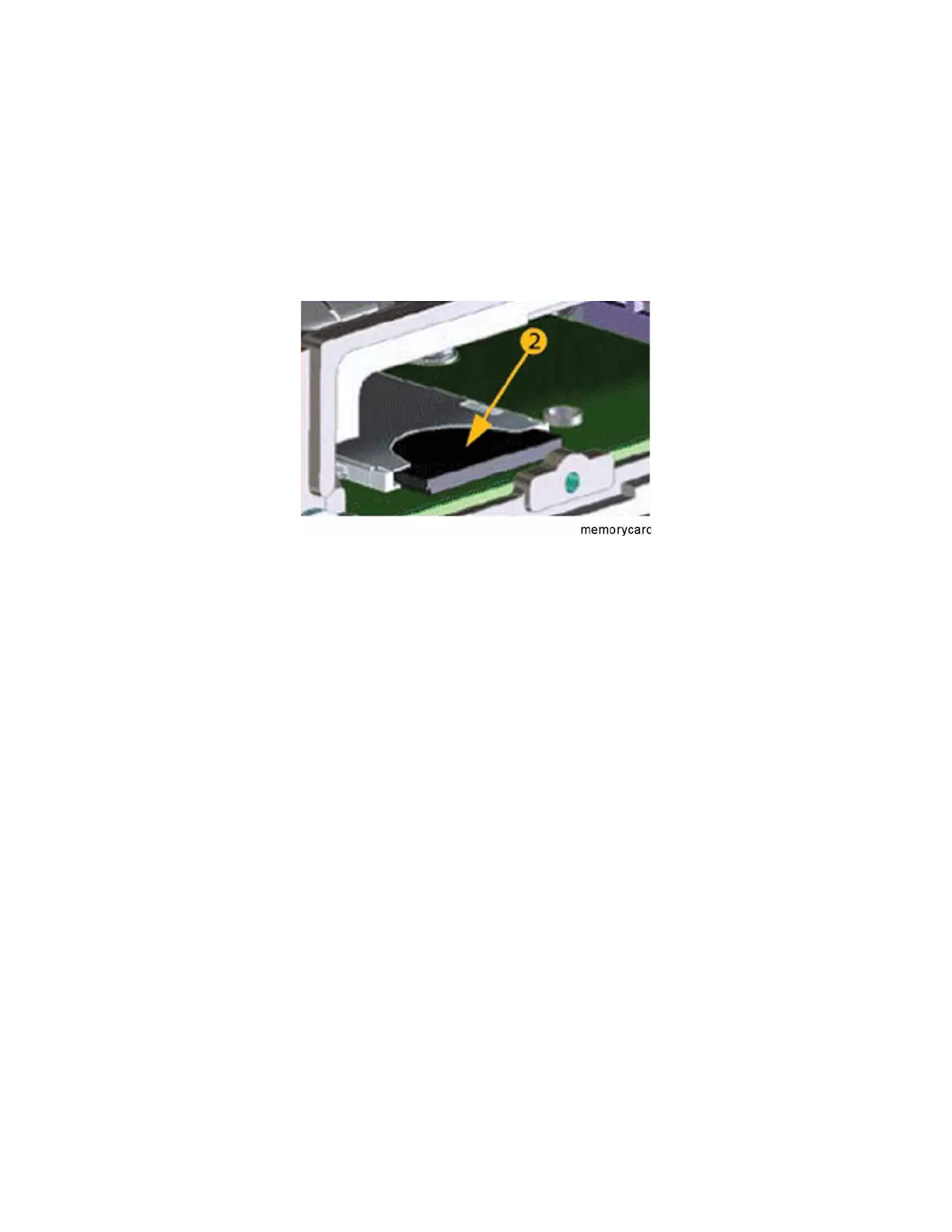

1. Refer to Figure 15-94. Remove the SSD as described on page 444. The
memory card (2) can be removed by pushing on the memory card and it
will spring out. To install the memory card push it into the slot until you
feel the spring catch. Then replace the SSD as described on page 445.
Figure 15-94 CPU Memory Card Removal

Keysight N9040B Option 508 Specifications

General

Phase Noise	-136 dBc/Hz at 1 GHz and 10 kHz offset
Input Impedance	50 Ω
Input VSWR	< 1.5:1
Resolution Bandwidth (RBW)	1 Hz to 8 MHz
Input Power Range	+30 dBm
Analysis Bandwidth	40 MHz
Sweep Time	1 ms to 1000 s
