KI Unite Panel System - Panel Frames - In-Line Assembly

Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
11
Unite
®
Panel System - Panel Frame Assembly
Assembly Instructions

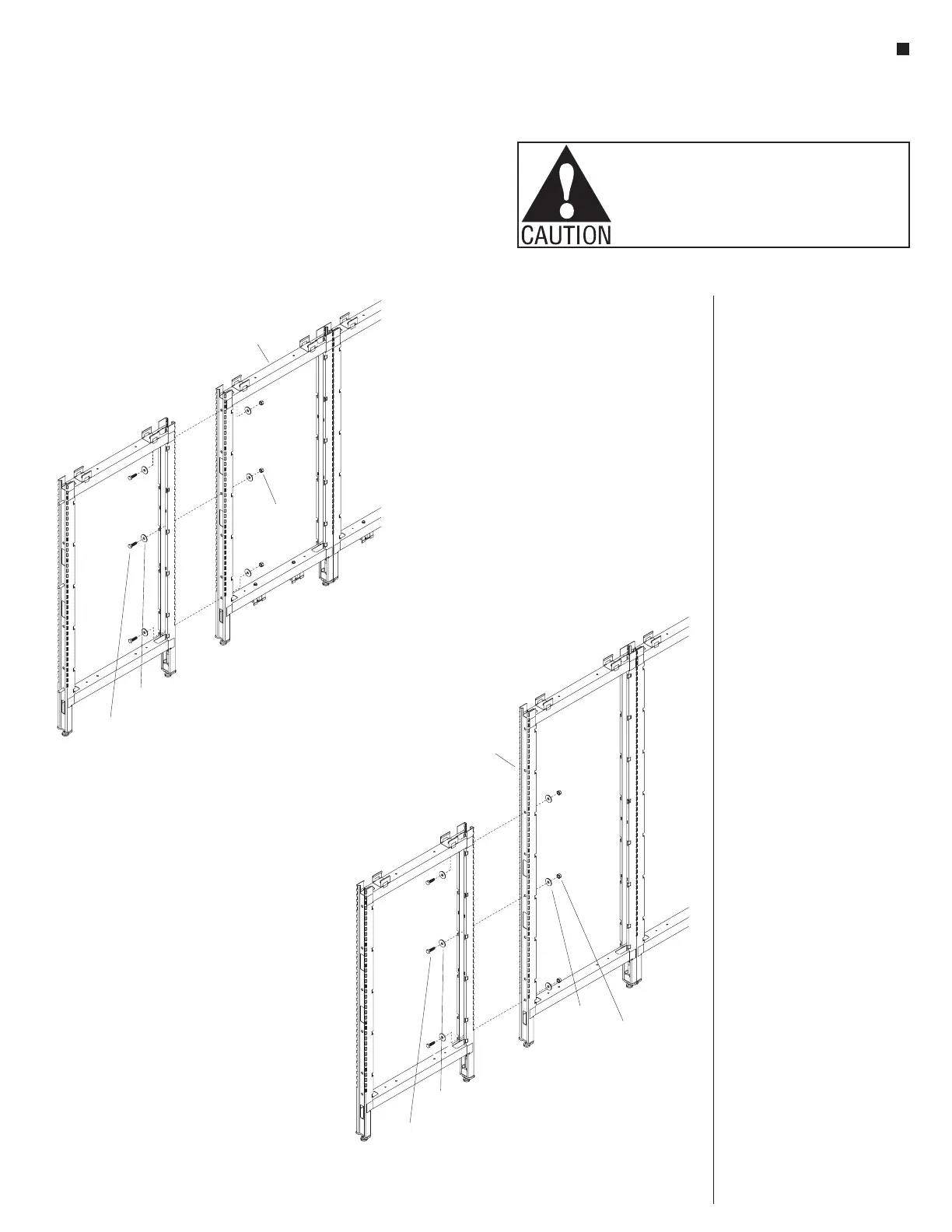

Figure
11 -2-Way 180 ,Panel Frames - In-Line
°
31
/ -16 x 1 /
bolt
84
”
washer
panel
frame
3
/ -16
k-lock nut
8
Panel Frames - In-Line
Assembly
Note: Always begin frame
assembly at the highest point of
an un-even floor, with the glides
adjusted
1
/
2
” from fully seated
to account for varying floor
conditions.
1. Stand frames next to each other
and align mounting holes of both
vertical posts. Place a large flat
washer on each of three
3
/
8
-16 x 1
1
/
4
” hex head bolts,
and insert the bolt with washer
through both frames to be
connected. Note: Install one bolt
through the lowest mounting hole
of the pair of frames, one bolt
through the highest mounting
hole of the shortest frame (if one
frame is taller than the other) and
one bolt through the mounting
hole roughly at 30” from the floor,
near beltway height. At the thread
end of each bolt, add a large flat
washer and loosely install a
3
/
8
-16
k-lock nut (Figure 12).
2. Tighten all hardware, then level
the panels, twisting the
height-adjustable glides in or out
(Figures 11 & 12).
Figure
12 -2-Way 180 ,Panel Frames -
Change-of-Height In-Line
°
vertical
post
31
/ -16 x 1 /
bolt
84
”
washer
washer
3
/ -16
k-lock nut
8
