Unite
®
Panel System - Gallery Panel Trim Installation
Assembly Instructions
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Gallery Panel End-of-Run
Change-of-Height Trim
Note: End-of-run change-of-height
trim kit may ship with two or three
trim clips depending on height.
Trim 16” or higher requires three
clips. The 3” high model does not
have any clips. Installation is the
same as standard Unite end-of-run
trim.
1. Before dead-end
change-of-height trim can
be attached, trim clips must
be installed. Please see page
15 "End-of-Run Trim Clip
Installation" for instructions.

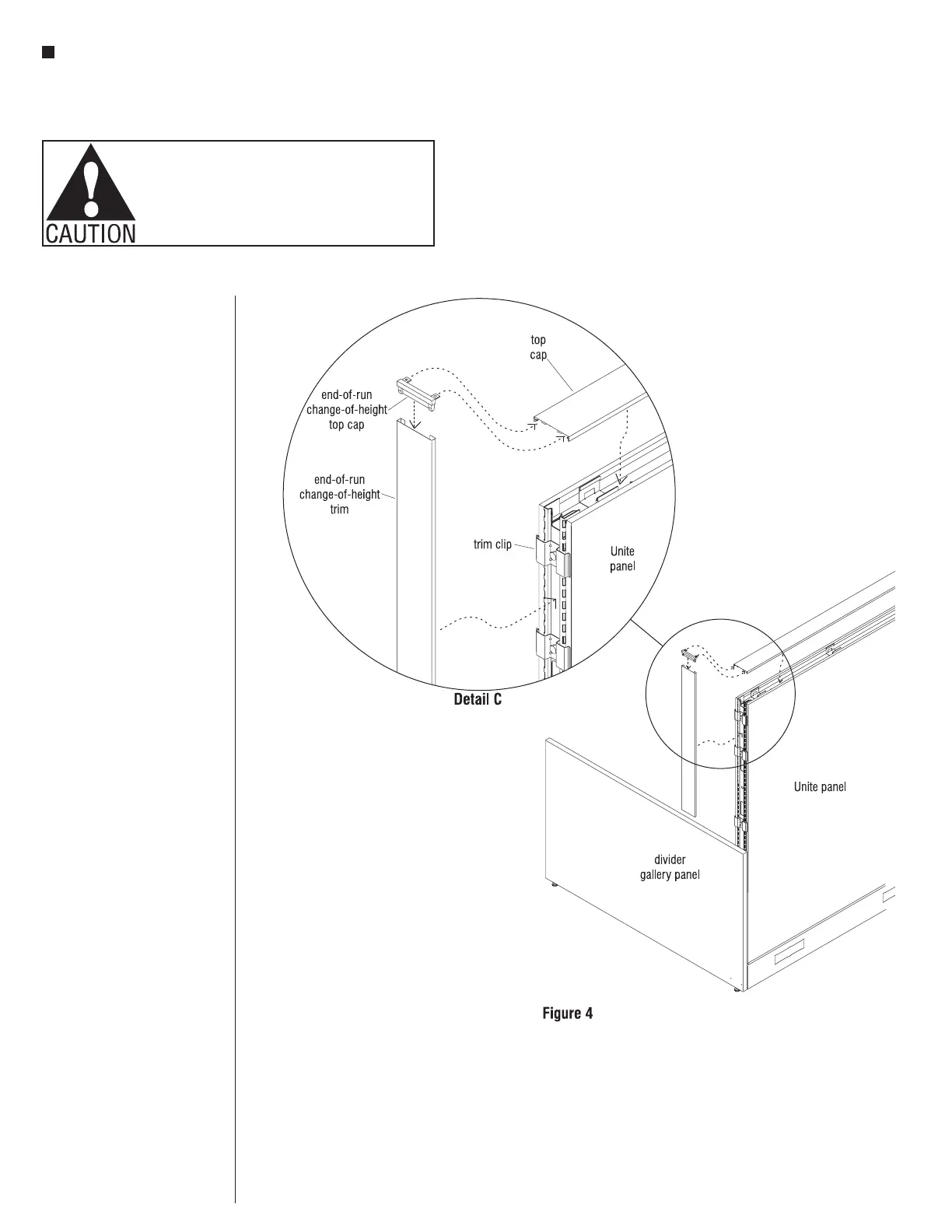

2. Position the end-of-run
change-of height trim on the trim
clips by hooking the trim on
one side of the clips and then
snap to other side of the clips
(Figure 4 & Detail C).
3. Next, install end-of-run
change-of-height top cap
horizontal tabs into Unite panel
top cap. Seat the top cap
assembly into the top of
dead-end trim and onto the top of
the Unite panel at the same time
(Figure 4 & Detail C).
