KI Unite Panel System - Vertical Intersection Trim Installation

58
Unite
®
Panel System - Trim Installation
Assembly Instructions
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
Vertical Intersection Trim
Installation
Note: Vertical intersection trim
(in-line intersection, 90° corner,
& 120° corner) must be installed
after intersection connection has
been completely secured, and
installed to panel frames prior to
installing any top caps, or
end-of-run trim.
IMPORTANT: Reference
"Connector Block with Spacer
Plate Overview" on page 3,
Detail A, to review the correct
installation procedure of
connector blocks to panel frame
intersections and Detail C on this
page.
1. Orient vertical trim correctly,
with top facing up. A paint line
hanging hole on the back flange
of each trim should be at the
bottom when properly positioned.
The inner mounting flanges have
hang-on tabs that hook onto the
top of each connector block and
hold the trim in place (Figures 3,
4, 5, 6 & Details D, E & F).
2. Locate the hang-on tabs on the
back of the trim and align the tabs
just above the corners on each
connector block. Press the trim
into position onto the connector
blocks and tap the trim down to
firmly seat in place. Take care to
assure that hang-on tabs have
captured all connector blocks at
the intersection (Figures 3, 4, 5, 6
& Details D, E & F)
Note: For equal-height
intersections, one full-height
vertical trim piece is required
(Figures 3, 4, 5 & 6). For
Change-of-Height intersections,
two stacked trim pieces are
required to complete the
intersection (Figures 7 & 8). At
Change-of-Height intersections,
the lower trim must install first
and the upper trim stacks, then
clips on above it.

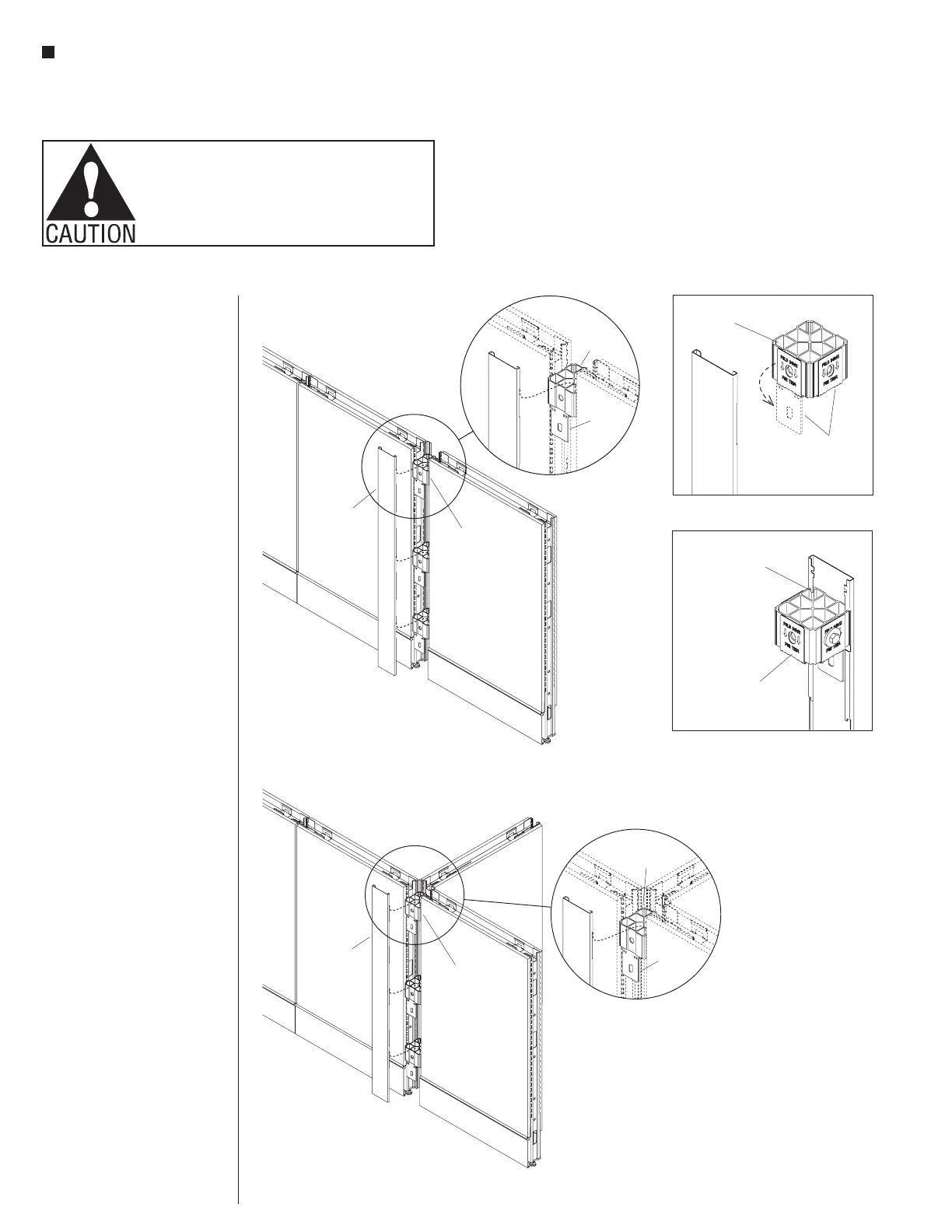

Figure 4-In-Line Intersection Vertical Trim
connector
block
in-line
vertical trim
connector
block
spacer
plate
Detail
D
connector
block
hang-on
tab
Detail C
connector
block
spacer plates
(must be pulled
down when
attaching to trim)
Figure
3-In-Line Vertical Trim
connector
block
in-line
vertical trim
spacer
plate
connector
block
