KI Unite Panel System - Page 59

Unite
®
Panel System - Trim Installation
Assembly Instructions
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
59

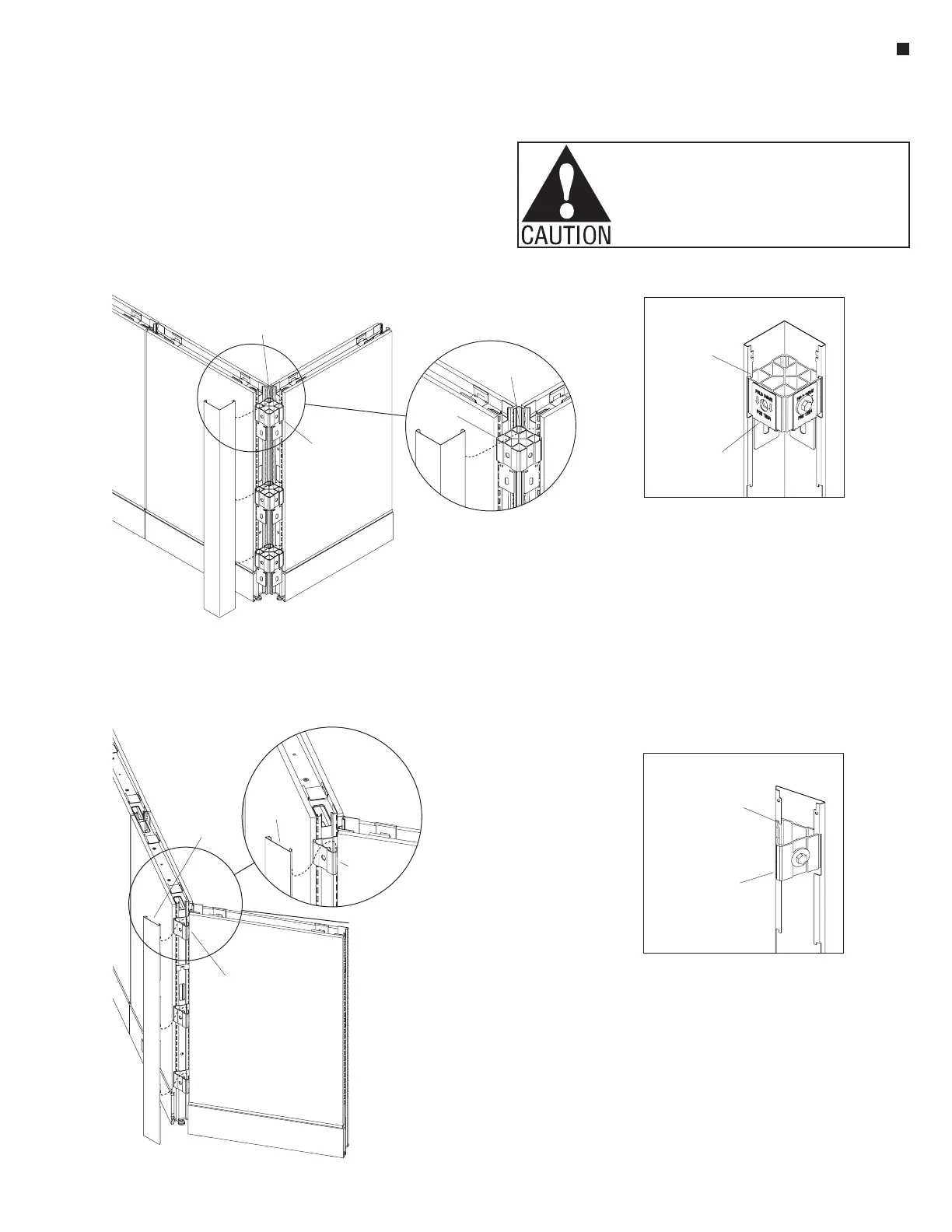

Figure
5-90 Corner Vertical Trim
°
connector
block
90 corner
vertical trim
°
connector
block
spacer
plate
Detail
E
connector
block
hang-on
tab
Figure
6-120 Corner Vertical Trim
°
120°
connector
block
120 corner
vertical trim
°
120°
connector
block
120
corner
vertical trim
°
Detail
F
120°
connector
block
hang-on
tab
