Unite
®
Panel System - Stacking Sections Assembly
Assembly Instructions
Stacking Sections (aluminum
frame) - Full-Height
Intersection Assembly
Important: When stacking
sections are ordered after original
space planning/installation to be
installed to existing panel frame
intersections, the light shield and
vertical intersection trim will ship
in two pieces to install in two
pieces (Figure 5).
Note: If full-height vertical
intersection trim and full-height
light shield (optional) are
desired after original space plan
installation; instead of two-piece
assembly, the connector block
in the highest mounting location
on the lower panel frame must be
moved to the highest mounting
location on the vertical stacking
posts at the intersection.
1. To gain access inside both
intersection panel frames, lift
the intersection panel tiles up to
disengage them from the P-slots
in the vertical posts. Set panel tile
aside until instructed to assemble
back onto the panel frame
(Figure 5).
2. Remove the connector block
located at the top of the panel
frame intersection by removing
the
3
/
8
-16 x 1
1
/
4
" bolts and
washers inside the vertical posts
of the panel frames (Figure 5).
3. Loosely attach the previously
removed connector block to the
highest mounting location on
one of the vertical stacking posts
at the intersection using the
previously removed.
3
/
8
-16 x 1
1
/
4
"
bolt and flat washer (Figure 5).
4. Loosely attach the second vertical
stacking post to the connector
block on the first stacking post
using a
3
/
8
-16 x 1
1
/
4
” hex head
bolt and flat washer (Figure 5).

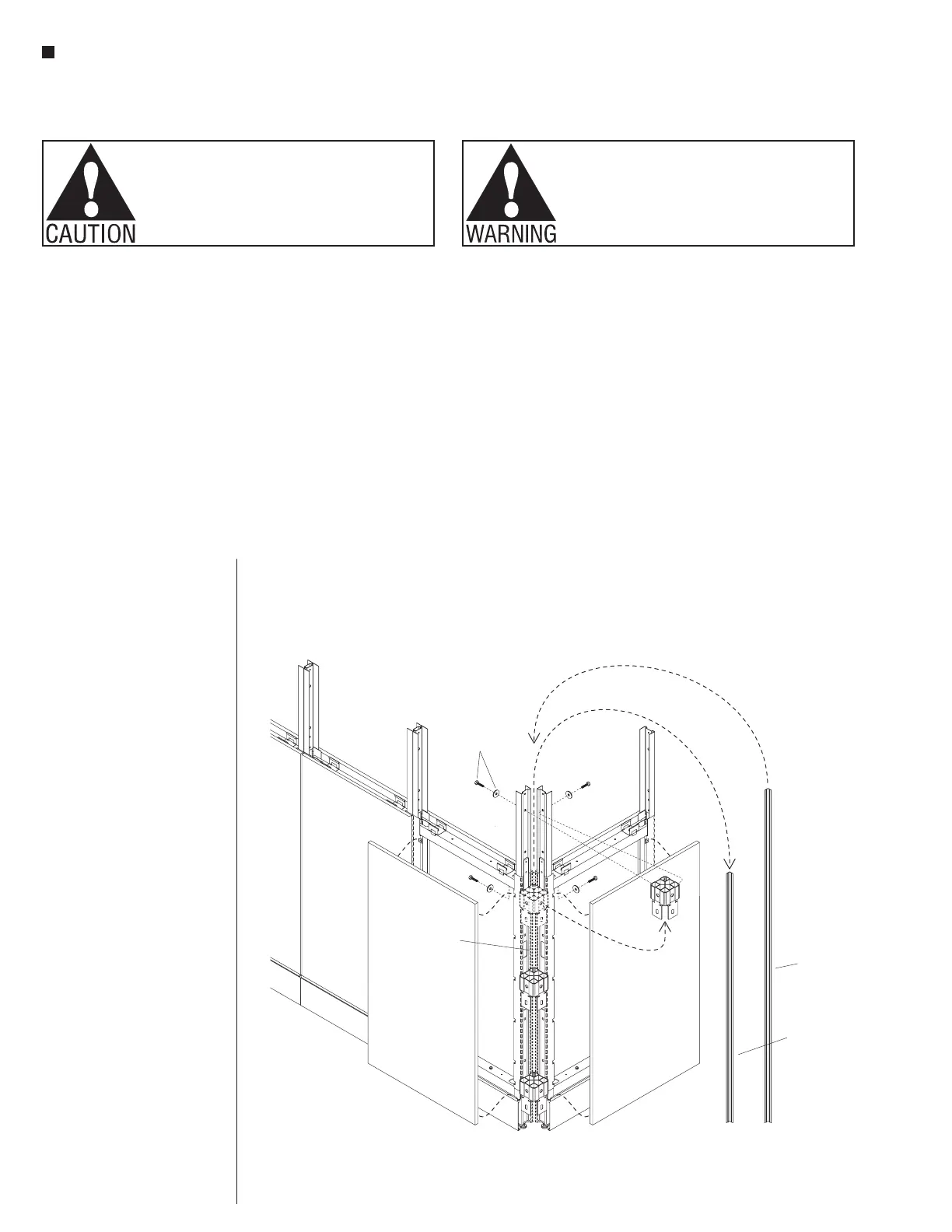

Figure 5-Stacking Sections (aluminum frame) -Full-Height Intersection
panel tile
(corner intersection)
light shield
(on pre-existing
panel frames)
panel tile
(corner intersection)
light shield
(on pre-existing
panel frames)
light shield
(full-height)
31
/ -16 x 1 /
bolt & washer
8
4
”
5. Tighten all
3
/
8
-16 x 1
1
/
4
” hex bolts
securing vertical stacking posts to
connector block at the intersection
(Figure 5).
6. Remove the light shield located at
the intersection of the pre-existing
panel frame installation. Position
the new full-height light shield
into the corner where the previous
shield was located. Snap the
full-height light shield into the
corner of each connector block
such that you hear a “click”,
ensuring that the light shield is
snug at each connector block
(Figure 5).
Rare Earth Magnets used with this product. The magnets can
be harmful to pacemaker wearers and others with medical
devices. Pacemaker wearers should stay at least one
foot away from the steel tiles.
