KI Unite Panel System - New York City Top Power Infeed Installation

Unite
®
Panel System - Electrical Installation
Assembly Instructions
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
31
New York City infeed
mounting bracket
alignment hole
(enlarge to /)
1
4
”
mark & drill
hole to /
1
4
”
New York City top
infeed assembly
(upside down)

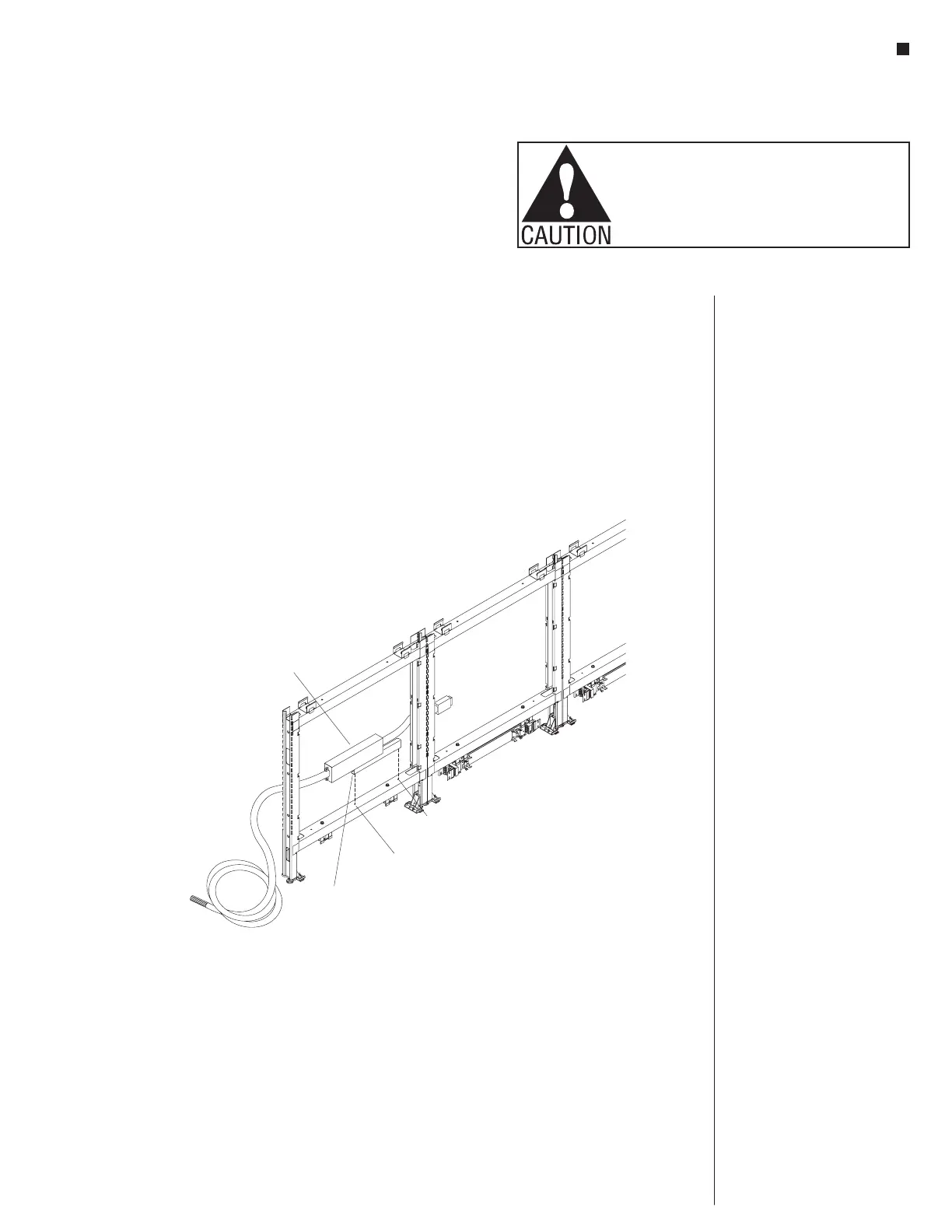

Figure
17-New York City Top Power Infeed
New York City Top Power Infeed
Installation
Note: All panel frames must
be mechanically connected
together, with all 10-wire rigid
wire-ways and panel-to-panel
power connections appropriately
installed before adding power
infeed, or connecting infeed to
power source.
1. One mounting hole must be
marked then drilled, and another
must be enlarged for mounting
of the New York infeed mounting
bracket to the lower horizontal
frame rail. To create mounting
holes, first position the New
York City top power infeed
assembly upside down on the
lower horizontal rail as illustrated
and align the mounting hole of
the bracket to the pre-drilled
hole closest the frame side rail.
Be sure the infeed assembly is
centered onto the horizontal rail
using the New York City infeed
mounting bracket as a guide and
mark the second mounting hole
to the lower horizontal rail. Drill
a hole
1
/
4
” diameter at the second
marked location. At the first
alignment hole location, drill the
11
/
64
” hole out to
1
/
4
” (Figure 17).
