Panel System - Trim Installation
Assembly Instructions
Base Raceway Trim Installation
1. If not previously installed to
panel frame, install two raceway
mounting brackets with
3
/
8
-16 x 1
1
/
4
” bolts provided
(Figure 1).
2. At the bottom of the panel frame
which will receive the base
raceway trim, install two plastic
base raceway hinge clips by
nesting the hooks of the clips into
the two slots in glide housing top,
then press down to snap hinge
clip into place (Figure 1).
3. Install the base raceway trim to
the frame by first aligning the
slots at the bottom of the raceway
trim with the bumps at the bottom
of the base raceway hinge clips.
After both ends are engaged to
hinge clips at the bottom, rotate
the top of the base raceway trim
up toward the frame and snap
the top onto the rigid wireway
mounting bracket to secure
(Figure 1).
base raceway
hinge clips
raceway
mounting
brackets
raceway
mounting
bracket
base
raceway
trim
glide
housing

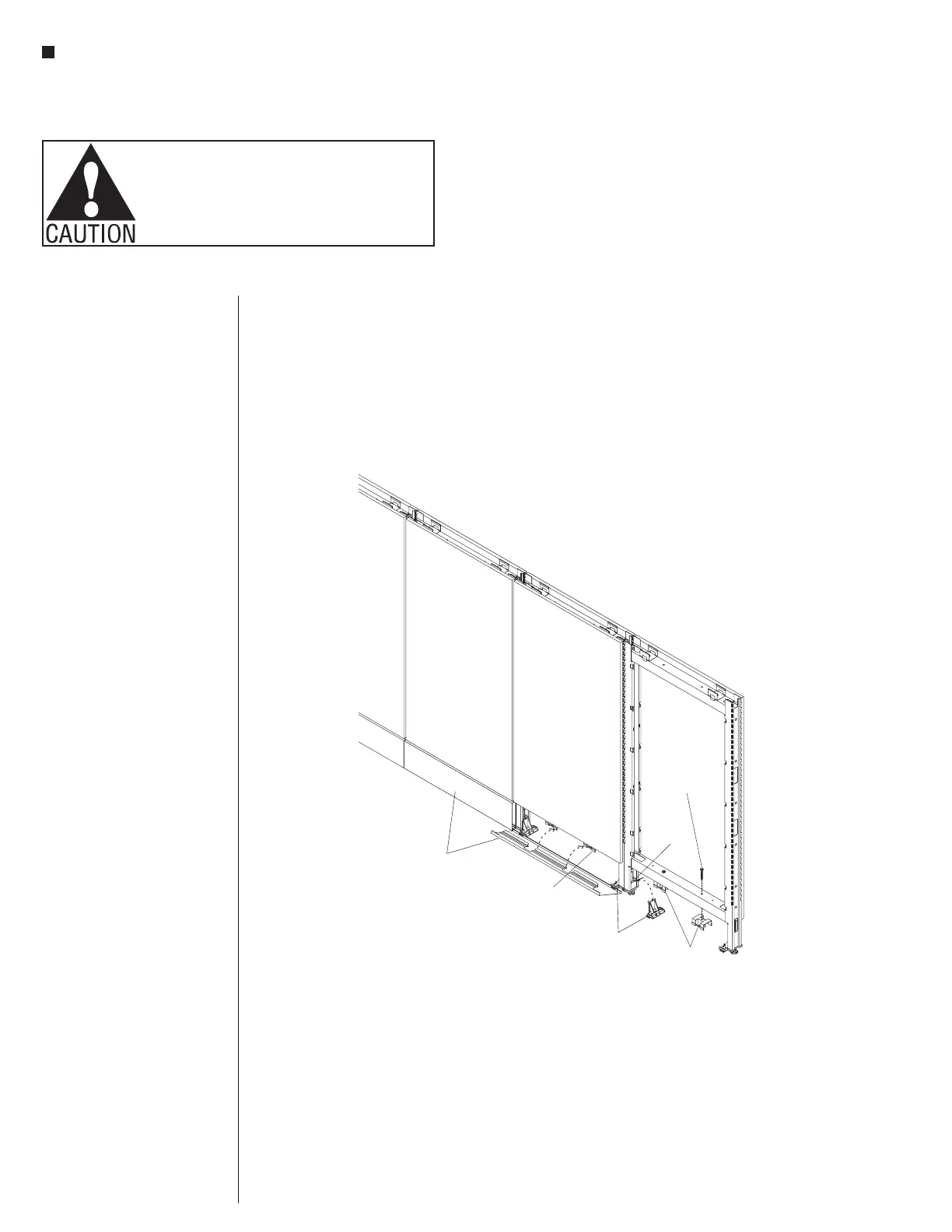

Figure 1-Base Raceway Trim Installation
31
/ -16 x 1 /
bolt
"
