KI Unite Panel System - End-of-Run Trim Clip Installation on Panel Frame Change-of-Height Assembly

16
Unite
®
Panel System - Panel Frame Assembly
Assembly Instructions
Assemble units as described herein only. To do otherwise
may result in instability. All screws, nuts and bolts must be
tightened securely and must be checked periodically after
assembly. Failure to assemble properly, or to secure parts
may result in assembly failure and personal injury.
end-of-run
trim clip
end-of-run
panel frame
(shorter)
33
/ -16 x /
bolt
84
”
33
/ -16 x /
bolt
84
”
3
/ -16
k-lock nut
8
end-of-run
trim clip
end-of-run
change-of-height
stacking section
3
/ -16
k-lock nut
8

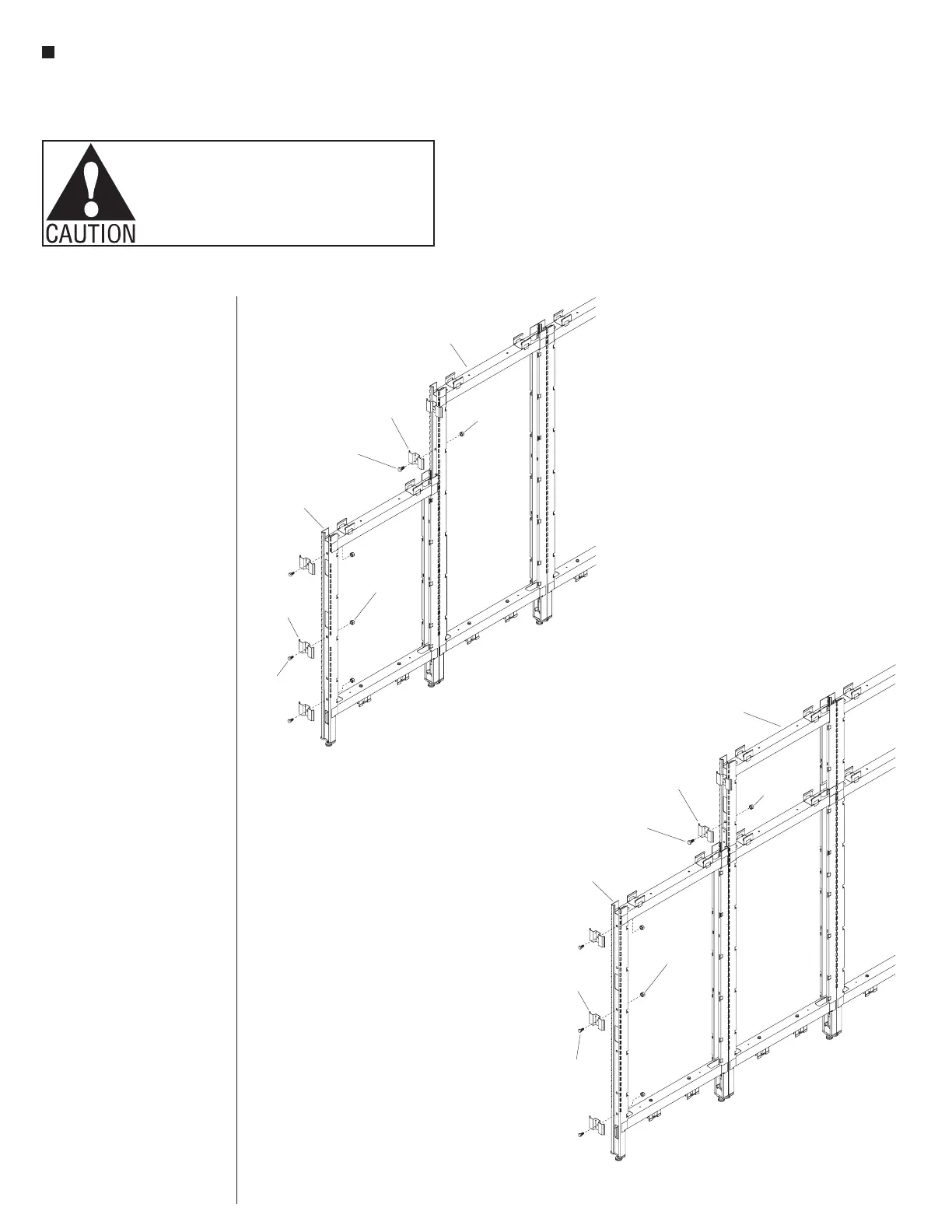

Figure
20 - End-of-Run Trim Clips on Change-of-Height
Stacking Sections
end-of-run
trim clip
end-of-run
panel frame
(shorter)
33
/ -16 x /
bolt
84
”
33
/ -16 x /
bolt
84
”
3
/ -16
k-lock nut
8
end-of-run
trim clip
3
/ -16
k-lock nut
8
end-of-run
change-of-height
panel frame (taller)
Figure
19 - End-of-Run Trim Clips on Change-of-Height
Panel Frames
End-of-Run Trim Clip
Installation on Panel Frame
Change-of-Height Assembly
Note: End-of-run trim clips are
installed to end-of-run panel
frames and change-of-height
panel frame ends to hold vertical
trim in place. End-of-run trim
clips must be installed prior to
installing tiles.
Note: All end-of-run panel
frames, except the shortest 32”
high frame require three clips
installed (see “Same Height- or
Shorter End Panel Frame at
Change-of-Height” trim clip
chart, page 15).
1. End-of run trim clips attach to the
“shorter” end panel frame using
a
3
/
8
-16 x
3
/
4
” hex head bolt and
3
/
8
-16 k-lock nut. Attach one
end-of-run clip at the lowest
mounting hole in the frame, one
clip at the highest, and the third
end-of-run clip approximately
30” from the floor, near beltway
height (Figures 19 & 20).
2. For “end-of-run change-of-height
panel frames” (Figure 19), or
“end-of-run change-of-height
stacking sections (steel frames)”
(Figure 20), and stacking sections
(aluminum frames) (not shown,
but similar) end-of-run trim clips
install to the taller change-of-
height panel to hold on
end-of-run trim. See “Upper
Panel Frame at Change-of-
Height” trim clip chart on
page 15 to determine the number
of trim clips required (Figures 19
& 20).
3. End-of run trim clips attach to the
“change-of-height” end panel
using a
3
/
8
-16 x
3
/
4
” hex head bolt
and
3
/
8
-16 k-lock nut (Figures 19
& 20).
